(888) 312-8812 Login SignupDELPHI FE0109 Electric Fuel Pump
$3949
Limited availability at this price!
In Stock
Get it by Monday, Aug 3

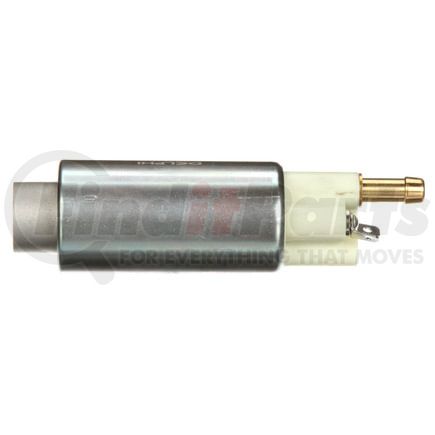

DELPHI FE0109 Part Description
Manufacturer
Product Description
Electric Fuel Pump
Features & Benefits
- Delphi is a global OE manufacturer and all fuel pumps are built to Delphi's OE standards
- Delphi pumps are designed to operate under extreme temperatures with quick engine starts
- Improved pump performance as a result of Delphi's innovative design and durability
- Restores fast pressure performance and system integrity, translating to better pumping through less energy
- Part is validated, tested and matched to the right vehicle application
- Lower amperage draws less load on vehicle's electrical system
- Always be sure to check and clean fuel tank to avoid unnecessary returns
- Always replace the fuel strainer when doing a fuel pump repair
DELPHI FE0109 Specifications
Product Attributes
| Position(s) | In-Tank |
| System Pressure | 51 psi |
| Package Contents | Electric Fuel Pump, Isolator, (2) Retaining Clips, Seal, Instruction Sheet |
| Item Grade | Standard Replacement |
| Fuel Sending Unit Included | No |
| Negative Ground | No |
| Inlet Outside Diameter | 22.0 MM |
| Outlet Outside Diameter | 0.313 IN |
| Outlet Outside Diameter | 7.9 MM |
| Length | 128.0 MM |
| Fuel Type | Gas |
| Internal Or External | Internal |
| Regulator Included | No |
| Maximum Pressure | 80.0 PS |
| Terminal Type | Blade |
| Mounting Hardware Included | Yes |
| Wire Quantity | 0 |
| Gasket Or Seal Included | Yes |
| Terminal Quantity | 2 |
| Seal And Lock Ring Included | No |
| Connector Gender | Male |
| Terminal Gender | Male |
| Wiring Harness Included | No |
| Strainer Included | No |
| Inlet Type | Strainer |
| Outlet Type | Hose |
| Outlet Quantity | 1 |
| Gasket Or Seal Material | Nitrile Rubber |
| Pump Design | Turbine |
| Mounting Bracket Included | No |
| Voltage | 12.0 2H |
| Average Current Draw | 5.0 68 |
| Average Flow Rating | 17.0 GPH |
| Universal Or Specific Fit | Specific |
| Grade Type | Premium |
| Connector Shape | Blade |
| Minimum Pressure | 51 PS |
| Maximum Amperage Draw | 5.0 68 |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8413309000 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Harmonized Tariff Code (HTS) | 8413309030 |
| Country of Origin (Primary) | CN |
| UPC | 00689604033777 |
| VMRS Code | 044003259 |
| UNSPSC | 40151532 |
DELPHI FE0109 Cross References
| Brand | Part Number |
|---|---|
| ACDelco | EP2026H, EP2071H, EP370, EP374 |
| AUTOBEST | F1076 |
| Airtex | E2065, E2068, E2105S, E2164H, E2101S, E2151H, E2471 |
| Auto-Tune | P123, P95208E |
| AutoZone | CFE0109 |
| BorgWarner | F32, P123, P126, P328H, P424H, P95208E |
| Bosch | 67036, 67078, 67083, 67032, 69125 |
| Carter | P74145, P74626H, P74814H, P74104, P74111, P74122 |
| DENSO | 951-0016 |
| DENSO Auto Parts | 951-0016 |
| EVO Driveline | AFS0027P, RE0105F, RE0140F, AFS0029P, AFS0059S, AFS0140F, RE0027P, RE0029P, RE0059S |
| FACET FUEL PUMPS | FEP2042 |
| Ford | E83Z 9H307-B, F0CZ 9H307-A, F23U 9A407-AB, F23Z 9A407-A, F23Z 9H307-A, F43Z 9A407-A, F43Z 9A407-AA, F4CU 9A407-BA, F4CZ 9A407-B, F5CZ 9350-B, F5CZ 9A407-BA, F7CU 9A407-AA, F7CU 9A407-AB, F7CZ 9350-AA, F7CZ 9350-AB, F7CZ 9A407-AA |
| GMB | 525-1021 |
| Gates | P123, P95208E |
| General Motors | 25164853, 25165262 |
| HELLA | H75011051 |
| Kem | EFP1061H, EFP1062H, EFP1105H, EFP1119H, EFP210, EFP226, EFP229 |
| Magneti Marelli | 1AMFP00079 |
| Master Parts Division | E2065, E2068 |
| Motorcraft | PFB57, PFB-32, PFB-41 |
| N/A | P123, P95208E, F0CZ9H307A, F23U9A407AB, F23Z9A407A, F23Z9H307A, F43Z9A407A, F43Z9A407AA, F4CU9A407BA, F4CZ9A407B, F5CZ9350B, F5CZ9350BA, F5CZ9A407BA, F7CU9A407AA, F7CU9A407AB, F7CZ9350AA, F7CZ9350AB, F7CZ9A407AA, 9510016, USEP2065, B0018E, P90041, 4020088 |
| Niehoff | P123, P328H, P424H, P95208E |
| Precision Fuel | A20013, A27044, E16006, E16107 |
| SPECTRA PREMIUM | SP1161 |
| Spectra Premium | SP1172, SP1113, SP2105H, SP2164H, SP235H |
| VEMO | V99090002 |
| Walbro | 5CA210 |
DELPHI FE0109 Fits Vehicles
- Mercury Tracer (1997)
- Mercury Topaz (1988-1994)
- Ford Tempo (1988-1994)
- Ford Escort (1997)
