DELPHI FD0013 Part Description
Manufacturer
Product Description

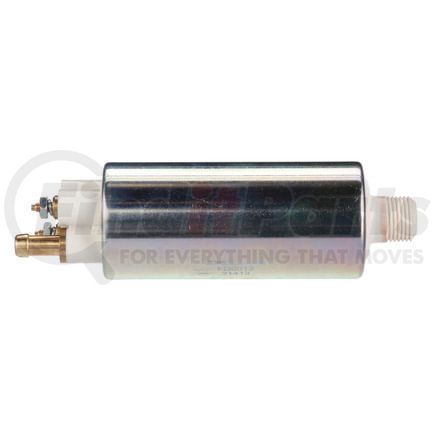

Electric Fuel Pump
Features & Benefits
- Delphi is a global OE manufacturer and all fuel pumps are built to Delphi's OE standards
- Delphi pumps are designed to operate under extreme temperatures with quick engine starts
- Improved pump performance as a result of Delphi's innovative design and durability
- Restores fast pressure performance and system integrity, translating to better pumping through less energy
- Part is validated, tested and matched to the right vehicle application
- Lower amperage draws less load on vehicle's electrical system
- Always be sure to check and clean fuel tank to avoid unnecessary returns
- Always replace the fuel strainer when doing a fuel pump repair
DELPHI FD0013 Specifications
Product Attributes
| Item Grade | Standard Replacement |
| System Pressure | 35 psi |
| Package Contents | Electric Fuel Pump, Extra Fitting, Formed Hose, (2) Hose Clamps, Seals, Terminal Hardware, Instruction Sheet |
| Position(s) | In-Line |
| Fuel Sending Unit Included | No |
| Negative Ground | No |
| Inlet Outside Diameter | 0.500 IN |
| Outlet Outside Diameter | 0.313 IN |
| Outlet Outside Diameter | 7.9 MM |
| Length | 158.0 MM |
| Fuel Type | Gas |
| Internal Or External | External |
| Regulator Included | No |
| Maximum Pressure | 102.0 PS |
| Terminal Type | Threaded |
| Mounting Hardware Included | Yes |
| Wire Quantity | 0 |
| Gasket Or Seal Included | Yes |
| Terminal Quantity | 2 |
| Seal And Lock Ring Included | No |
| Connector Gender | Male |
| Terminal Gender | Male |
| Wiring Harness Included | No |
| Strainer Included | No |
| Inlet Type | Threaded |
| Outlet Type | Hose Bead |
| Outlet Quantity | 1 |
| Gasket Or Seal Material | Nitrile Rubber |
| Pump Design | Rollevane |
| Mounting Bracket Included | No |
| Voltage | 12.0 2H |
| Average Current Draw | 5.0 68 |
| Average Flow Rating | 22.0 GPH |
| Universal Or Specific Fit | Specific |
| Grade Type | Premium |
| Connector Shape | Terminals |
| Minimum Pressure | 35 PS |
| Maximum Amperage Draw | 10.0 68 |
| Inlet Fitting Thread Size | 3/4" - 16 |
| Inlet Thread Size | 3/4" - 16 |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8413309000 |
| Country of Origin (Primary) | TH |
| Harmonized Tariff Code (HTS) | 8413309030 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| UPC | 00689604032459 |
| VMRS Code | 044003259 |
| UNSPSC | 40151532 |
DELPHI FD0013 Cross References
| Brand | Part Number |
|---|---|
| ACDelco | EP186 |
| AUTOBEST | F1193 |
| Airtex | E2085H, E2182, E2141S, E2484 |
| Auto-Tune | P53 |
| AutoZone | CFD0013 |
| BorgWarner | F18, P53 |
| Bosch | 67018, 67069, 69100, 69101, 69133 |
| CARTER FUEL PUMPS | P74643S |
| Carquest | HS219628 |
| Carter | P74025, P74643S, P74096, P74112, P74523S |
| DENSO Auto Parts | 951-3000, 953-4141, 953-4146 |
| EVO Driveline | AFS0121P, RE0044F, RE0046F, RE0096S, AFS0143P |
| FACET FUEL PUMPS | FEP2157 |
| Ford | E0VY 9350-B, E0VZ 9350-A, E0VZ 9350-AA, E0VZ 9350-B, E1AZ 9350-A, E1VZ 9350-A, E1VZ 9350-B, E3AZ 9350-A, E3AZ 9350-B, E3VY 9350-A, E3VZ 9350-A, E3VZ 9350-AA, E3VZ 9A407-AB, E6AZ 9350-A, E6AZ 9350-AA, E6AZ 9A407-AA, E6VZ 9350-A, E8TZ 9H307-GA, EOVZ 9350-AA |
| GMB | 525-1111 |
| Gates | P53 |
| Hygrade Tuneup | EFP328 |
| Kem | EFP186, EFP328 |
| Master Parts Division | E2085H, E2182 |
| Motorcraft | PF7, PF-6, PF-8, PFB-52, PFS-23 |
| N/A | 9513000, 9534141, 9534146, P53, E0VY9350B, E0VZ9350A, E0VZ9350AA, E0VZ9350B, E1AZ9350A, E1VZ9350A, E1VZ9350B, E3AZ9350A, E3AZ9350B, E3VY9350A, E3VZ9350A, E3VZ9350AA, E3VZ9A407AB, E6AZ9350A, E6AZ9350AA, E6AZ9A407AA, E6VZ9350A, E8TZ9H307GA, EOVZ9350AA, USEP2182, B0022E, 4020118 |
| Niehoff | F18, P53 |
| Precision Fuel | A27046, A43008, E16045, E16138 |
| Spectra Premium | SP1165, SP2012H, SP2014H |
DELPHI FD0013 Fits Vehicles
- Ford LTD Crown Victoria (1987-1991)
- Mercury Grand Marquis (1983-1989)
- Mercury Colony Park (1987-1991)
- Lincoln Town Car (1981-1989)
- Lincoln Mark VI (1980-1983)
- Lincoln Continental (1980)
- Ford LTD (1983-1986)
- Ford Country Squire (1987-1991)
