(888) 312-8812 Login SignupDELPHI AF10141 Mass Air Flow Sensor
MSRP: $218.32
$13099
Save $87.33
Limited availability at this price!
In Stock
Get it by Thursday, Feb 12
DELPHI AF10141 Part Description
Manufacturer
Product Description

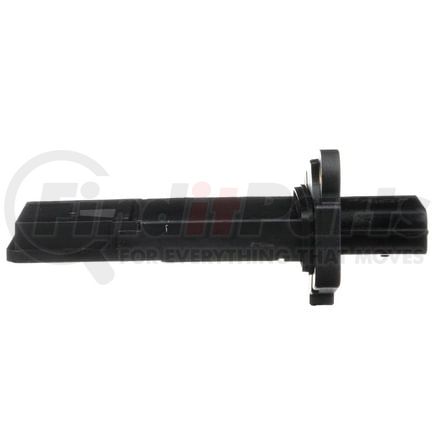

Mass Air Flow Sensor
Features & Benefits
- Delphi mass air flow sensors are the global benchmark for accuracy and signal noise
- Delphi mass air flow sensors feature high quality sensing elements for outstanding performance over a wide range of ambient temperatures
- Delphi is a manufacturer of OE mass air flow sensors since their first use over 30 years ago
- All parts are calibrated and tested to match the OE part
- Probe solution offered wherever possible to reduce repair time by eliminating the need to replace the flow tube
- Delphi OE technology validated to match the vehicle applications
DELPHI AF10141 Specifications
Product Attributes
| Package Contents | Mass Air Flow Sensor - Probe Only |
| Item Grade | Premium |
| Color | Black |
| Housing Included | No |
| Terminal Type | Pin |
| Mounting Hardware Included | No |
| Universal Or Specific Fit | Specific |
| Grade Type | Standard Replacement |
| Connector Quantity | 1 |
| Connector Shape | Rectangle |
| Mounting Hole Quantity | 2 |
| Terminal Quantity | 5 |
| Connector Gender | Female |
| Terminal Gender | Male |
| Wiring Harness Included | No |
| Mounting Type | Bolt-On |
| Mounting Bracket Included | No |
| Sensor Casing Length | 46 MM |
| Sensor Casing Width | 38 MM |
| Voltage | 12.0 2H |
| Gasket Or Seal Included | Yes |
| Bolt Hole Center To Bolt Hole Center | 40.10 MM |
| Mounting Hole Diameter | 4.5 MM |
| Seal Outside Diameter | 39.5 mm |
| Seal Quantity | 1 |
| Sensor Casing Length | 1.8 IN |
| Sensor Casing Width | 1.4 IN |
| Bolt Hole Center To Bolt Hole Center | 1.50 IN |
| Mounting Hole Diameter | 0.1 IN |
| Seal Outside Diameter | 1.5 IN |
| Intake Air Temperature (IAT) Included | Yes |
Additional Information
| Harmonized Tariff Code (HTS) | 9026802000 |
| Warranty Time UOM | MO |
| Warranty Time | 12 |
| Country of Origin (Primary) | CN |
| Warranty Distance UOM | DH |
| Warranty Distance | 12000 |
| Harmonized Tariff Code (Schedule B) | 9026800000 |
| UPC | 00689604213360 |
| VMRS Code | 045021019 |
| UNSPSC | 41111931 |
DELPHI AF10141 Cross References
| Brand | Part Number |
|---|---|
| ACDelco | 2133609 |
| Airtex | 5S5683 |
| BWD | 221028M, 59064, MA1064, MA1233, MA1239 |
| Beck/Arnley | 158-0981, 158-1471 |
| Blue Streak Electronics New | MF21058N |
| BorgWarner | 59064 |
| CARDONE New | 86-50036, 86-9936 |
| CARDONE Reman | 74-50036 |
| Carquest | MQ6210 |
| Datsun/Nissan | 22680-7S000, 22680-7S00A, 22680-7S00B, 22680-AT300, 22680-CA000 |
| Dorman | 917-857 |
| Duralast | DL-3002, DL-6088 |
| GLOBAL PARTS DISTRIBUTORS | 1813097 |
| General Motors | 19317438 |
| HELLA | 009142761 |
| HITACHI | MAF0131, MAF0029, MAF0031, MAF0045 |
| Hitachi Automotive | MAF0045, MAF0029, MAF0031, AFH70-36M, AFH80-12 |
| N/A | 7450036, 226807S000, 226807S00A, 22680AT300, 22680CA000, 1380066J00, 1580981, 214815, 245-1117, MAS0399, MAS0407, MAS0481 |
| NAPA Reman Computers | MAF650036, XTP450036 |
| NGK SPARK PLUGS | MG0007 |
| NTK | MG0007 |
| Richporter | MA159 |
| STANDARD IGNITION | MAS0401, MAS0208, MAS0407, MAS0481 |
| Spectra Premium | MA159, MA202 |
| Standard Motor Products | MF21058, MAS0153, MAS0208, MAS0401, MF21028 |
| Suzuki | 13800-66J00 |
| URO | NI1419988 |
| VEMO | V38720073 |
| WAI | MAF10141 |
| WALKER PRODUCTS | 245-1117 |
| Wells | SU7178, SU6855, SU7803 |
DELPHI AF10141 Fits Vehicles
- Nissan Pathfinder Armada (2004)
- Nissan TITAN XD (2016-2023)
- INFINITI Q40 (2015)
- INFINITI Q70L (2015-2019)
- Chevrolet City Express (2015-2018)
- Nissan Rogue Select (2014-2015)
- INFINITI Q70 (2014-2019)
- INFINITI QX70 (2014-2017)
- INFINITI Q60 (2014-2015)
- INFINITI QX60 (2014-2015)
- INFINITI QX50 (2014-2017)
- INFINITI QX80 (2014-2023)
- INFINITI Q50 (2014-2015)
- Nissan Versa Note (2014-2018)
- Nissan NV200 (2013-2021)
- INFINITI FX37 (2013)
- INFINITI EX37 (2013)
- INFINITI JX35 (2013)
- Nissan NV1500 (2012-2021)
- Nissan NV3500 (2012-2021)
- Nissan NV2500 (2012-2021)
- INFINITI G25 (2011-2012)
- INFINITI M37 (2011-2013)
- Nissan Cube (2009-2014)
- Nissan 370Z (2009-2020)
- INFINITI FX50 (2009-2013)
- Nissan GT-R (2009-2021, 2023)
- INFINITI EX35 (2008-2012)
- Nissan Rogue (2008-2013)
- INFINITI G37 (2008-2013)
- Nissan Versa (2007-2019)
- Suzuki Grand Vitara (2006-2008)
- INFINITI M45 (2006-2010)
- INFINITI M35 (2006-2010)
- Nissan Armada (2005-2015, 2017-2023)
- Nissan Xterra (2005-2015)
- Nissan Frontier (2005-2019)
- INFINITI Q45 (2005-2006)
- INFINITI FX45 (2005-2008)
- INFINITI QX56 (2004-2013)
- Nissan TITAN (2004-2015, 2017-2023)
- Nissan Quest (2004-2009, 2011-2015)
- Nissan Pathfinder (2004-2015)
- Nissan Maxima (2004-2014)
- INFINITI FX35 (2003-2012)
- Nissan Sentra (2003-2012)
- Nissan Murano (2003-2007, 2009-2014)
- INFINITI G35 (2003-2008)
- Nissan Altima (2002-2014)
- Nissan 350Z (2003-2009)
