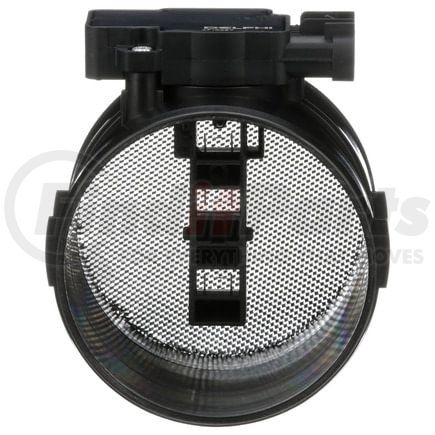

(888) 312-8812 Login SignupDELPHI AF10057 Mass Air Flow Sensor
MSRP: $227.78
$14849
Save $79.29
Limited availability at this price!
In Stock
Get it by Wednesday, Dec 17
DELPHI AF10057 Part Description
DELPHI AF10057 Specifications
Product Attributes
| Item Grade | Premium |
| Package Contents | Mass Air Flow Sensor - Complete Assembly, Jumper Harness, Instruction Sheet |
| Color | Black |
| Housing Included | Yes |
| Inlet Connection Diameter | 3.583 IN |
| Inlet Connection Diameter | 91 MM |
| Outlet Connection Diameter | 3.58 IN |
| Outlet Connection Diameter | 91 MM |
| Terminal Type | Blade |
| Mounting Hardware Included | No |
| Universal Or Specific Fit | Specific |
| Wire Quantity | 3 |
| Grade Type | Regular |
| Connector Quantity | 1 |
| Connector Shape | Oval |
| Housing Material | Plastic |
| Terminal Quantity | 5 |
| Connector Gender | Female |
| Terminal Gender | Male |
| Wiring Harness Included | Yes |
| Mounting Type | Band Clamp |
| Mounting Bracket Included | No |
| Sensor Casing Length | 95.5 MM |
| Sensor Casing Width | 97 MM |
| Voltage | 12.0 2H |
| Wiring Harness Length | 5.0 IN |
| Gasket Or Seal Included | No |
| Seal Quantity | 0 |
| Sensor Casing Length | 3.7 IN |
| Sensor Casing Width | 3.8 IN |
| Wiring Harness Length | 127.0 MM |
Additional Information
| Warranty Distance UOM | DH |
| Warranty Distance | 12000 |
| Harmonized Tariff Code (Schedule B) | 9026800000 |
| Harmonized Tariff Code (HTS) | 9026802000 |
| Warranty Time UOM | MO |
| Warranty Time | 12 |
| Country of Origin (Primary) | CN |
| UPC | 00689604197974 |
| VMRS Code | 045021019 |
| UNSPSC | 41111931 |
DELPHI AF10057 Part Interchanges
| Brand | Part Number |
|---|---|
| BorgWarner | 29008 |
| Standard Motor Products | MF8308, MAS0370 |
| Wells | SU1102 |
| ACDelco | 2134581 |
| General Motors | 19208517, 19208521, 19332973 |
| Spectra Premium | MA232 |
| Richporter | MA101 |
| BWD | 29008, MA1202 |
| CARDONE New | 86-8308 |
| CARDONE Reman | 74-8308 |
| NAPA Reman Computers | XTP48308 |
| Blue Streak Electronics New | MF8308N |
| N/A | 214187, DL-6001, 5S15026, MF830, MF830N |
DELPHI AF10057 Fits Vehicles
- GMC C3500HD (1996-2000)
- Chevrolet C3500HD (1996-2000)
- GMC Yukon (1997-2000)
- GMC P3500 (1996-1999)
- GMC K3500 (1996-2000)
- GMC K2500 Suburban (1996-1999)
- GMC K2500 (1996-2000)
- GMC K1500 Suburban (1996-1999)
- GMC K1500 (1996-1999)
- GMC Savana 3500 (1998-2000)
- GMC Savana 2500 (1998-2000)
- GMC Savana 1500 (1998-2000)
- GMC C3500 (1996-2000)
- GMC C2500 Suburban (1996-1999)
- GMC C2500 (1996-2000)
- GMC C1500 Suburban (1996-1999)
- GMC C1500 (1990, 1996-1999)
- Chevrolet Tahoe (1997-2000)
- Chevrolet P30 (1996-1999)
- Chevrolet K3500 (1996-2000)
- Chevrolet K2500 Suburban (1996-1999)
- Chevrolet K2500 (1996-2000)
- Chevrolet K1500 Suburban (1996-1999)
- Chevrolet K1500 (1996-1999)
- Chevrolet Express 3500 (1998-2000)
- Chevrolet Express 2500 (1998-2000)
- Chevrolet Express 1500 (1998-2000)
- Chevrolet C3500 (1996-2000)
- Chevrolet C2500 Suburban (1996-1999)
- Chevrolet C2500 (1996-2000)
- Chevrolet C1500 Suburban (1996-1999)
- Chevrolet C1500 (1990, 1996-1999)
- Cadillac Escalade (1999-2000)
