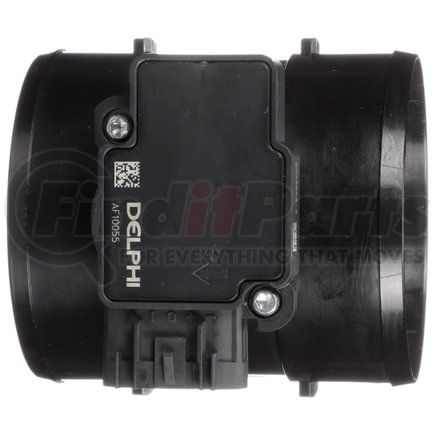

(888) 312-8812 Login SignupDELPHI AF10055 Mass Air Flow Sensor
MSRP: $209.83
$13549
Save $74.34
Limited availability at this price!
In Stock
Get it by Friday, Dec 26
DELPHI AF10055 Part Description
DELPHI AF10055 Specifications
Product Attributes
| Item Grade | Premium |
| Package Contents | Mass Air Flow Sensor - Complete Assembly, Jumper Harness, Instruction Sheet |
| Color | Black |
| Housing Included | Yes |
| Inlet Connection Diameter | 3.327 IN |
| Inlet Connection Diameter | 84.5 MM |
| Outlet Connection Diameter | 3.3 IN |
| Outlet Connection Diameter | 83.8 MM |
| Terminal Type | Blade |
| Mounting Hardware Included | No |
| Universal Or Specific Fit | Specific |
| Wire Quantity | 3 |
| Grade Type | Regular |
| Connector Quantity | 1 |
| Connector Shape | Oval |
| Housing Material | Plastic |
| Terminal Quantity | 5 |
| Connector Gender | Female |
| Terminal Gender | Male |
| Wiring Harness Included | Yes |
| Mounting Type | Band Clamp |
| Mounting Bracket Included | No |
| Sensor Casing Length | 94 MM |
| Sensor Casing Width | 89 MM |
| Voltage | 12.0 2H |
| Wiring Harness Length | 5.0 IN |
| Gasket Or Seal Included | No |
| Seal Quantity | 0 |
| Sensor Casing Length | 3.7 IN |
| Sensor Casing Width | 3.5 IN |
| Wiring Harness Length | 127.0 MM |
Additional Information
| Warranty Distance UOM | DH |
| Warranty Distance | 12000 |
| Harmonized Tariff Code (Schedule B) | 9026800000 |
| Harmonized Tariff Code (HTS) | 9026802000 |
| Warranty Time UOM | MO |
| Warranty Time | 12 |
| Country of Origin (Primary) | CN |
| UPC | 00689604197851 |
| VMRS Code | 045021019 |
| UNSPSC | 41111931 |
DELPHI AF10055 Part Interchanges
| Brand | Part Number |
|---|---|
| N/A | 748309, 868309, 2133458, 8192072020, 8251668461, 8251803030, 8281202790, 641505, 1618309, 1570276, 420515, 214128, 245-1062, 245-1162, 245-2162 |
| Wells | SU1215, SU4997 |
| ACDelco | 213352, 2134527, 213-3458 |
| Airtex | 5S2615, 5S2696 |
| Echlin | MAF68309, XTP48309 |
| Richporter | MA100 |
| Standard Motor Products | MF8302, MAS0201, MAS0310 |
| Autopart International | 228327, 29998 |
| BorgWarner | 28302M |
| General Motors | 19207202, 25180303, 19332971 |
| Beck/Arnley | 157-0276, 158-1564 |
| Kem | 161-8309 |
| Micro-Tech | 42-0515 |
| Spectra Premium | MA100, MA231 |
| Carquest | 64-1505, MQ7204 |
| BWD | 28302M, MA1060 |
| Duralast | DL-6000 |
| CARDONE New | 86-8309 |
| Honda | 8-25166-846-1 |
| Isuzu | 8-19207-202-0, 8-19332-971-0, 8-25166-846-1, 8-25180-303-0, 8-28120-279-0 |
| CARDONE Reman | 74-8309 |
| Dorman | 917-825 |
| NAPA Reman Computers | MAF68309, XTP48309 |
| Blue Streak Electronics New | MF8302N |
DELPHI AF10055 Fits Vehicles
- Honda Passport (1998-2002)
- Acura SLX (1998-1999)
- Pontiac Trans Sport (1996-1998)
- Pontiac Montana (1999-2006)
- Pontiac Grand Prix (1994-2003)
- Pontiac Grand Am (1996-2005)
- Pontiac Aztek (2001-2005)
- Oldsmobile Silhouette (1996-2004)
- Oldsmobile Intrigue (1999-2002)
- Oldsmobile Cutlass Supreme (1994-1997)
- Oldsmobile Cutlass (1997-1999)
- Oldsmobile Bravada (1996-2001)
- Oldsmobile Aurora (2001-2002)
- Oldsmobile Alero (1999-2004)
- Oldsmobile Achieva (1996-1998)
- GMC Safari (1996-2005)
- GMC Sonoma (1996-2004)
- GMC Jimmy (1996-2001)
- Chevrolet Venture (1997-2005)
- Chevrolet S10 (1996-2004)
- Chevrolet Blazer (1996-2005)
- Chevrolet Monte Carlo (1995-2005)
- Chevrolet Malibu (1997-2003)
- Chevrolet Lumina APV (1996)
- Chevrolet Lumina (1994-2001)
- Chevrolet Impala (1994-1996, 2000-2005)
- Chevrolet Corsica (1996)
- Chevrolet Caprice (1994-1996)
- Chevrolet Beretta (1996)
- Chevrolet Astro (1996-2005)
- Cadillac Commercial Chassis (1994-1996)
- Cadillac Fleetwood (1994-1996)
- Buick Skylark (1996-1998)
- Buick Roadmaster (1994-1996)
- Buick Rendezvous (2002-2005)
- Buick Regal (1994-1996)
- Buick Century (1997-2005)
- Isuzu VehiCROSS (1999-2001)
- Isuzu Trooper (1998-2002)
- Isuzu Rodeo Sport (2001-2003)
- Isuzu Rodeo (1998-2004)
- Isuzu Axiom (2002-2003)
- Isuzu Hombre (1997-2000)
- Isuzu Amigo (1998-2000)
