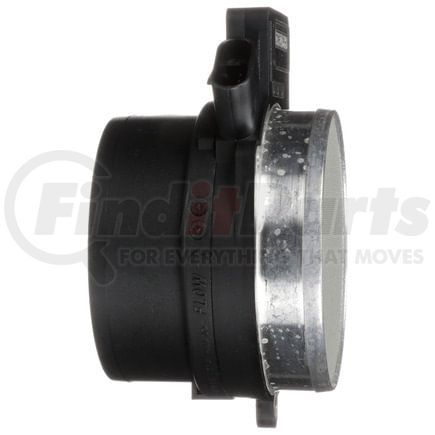

(888) 312-8812 Login SignupDELPHI AF10043 Mass Air Flow Sensor
MSRP: $201.57
$13149
Save $70.08
Limited availability at this price!
In Stock
Get it by Monday, Feb 16
DELPHI AF10043 Part Description
Manufacturer
Product Description
Mass Air Flow Sensor
Features & Benefits
- Delphi mass air flow sensors are the global benchmark for accuracy and signal noise
- Delphi mass air flow sensors feature high quality sensing elements for outstanding performance over a wide range of ambient temperatures
- Delphi is a manufacturer of OE mass air flow sensors since their first use over 30 years ago
- All parts are calibrated and tested to match the OE part
- Probe solution offered wherever possible to reduce repair time by eliminating the need to replace the flow tube
- Delphi OE technology validated to match the vehicle applications
DELPHI AF10043 Specifications
Product Attributes
| Package Contents | Mass Air Flow Sensor - Complete Assembly |
| Item Grade | Premium |
| Color | Black and Silver |
| Housing Included | Yes |
| Inlet Connection Diameter | 3.831 IN |
| Inlet Connection Diameter | 97.3 MM |
| Outlet Connection Diameter | 92.8 MM |
| Outlet Connection Diameter | 3.65 IN |
| Terminal Type | Blade |
| Mounting Hardware Included | No |
| Universal Or Specific Fit | Specific |
| Grade Type | Standard Replacement |
| Connector Quantity | 1 |
| Connector Shape | Oval |
| Mounting Hole Quantity | 3 |
| Housing Material | Aluminum, Plastic |
| Terminal Quantity | 5 |
| Connector Gender | Female |
| Terminal Gender | Male |
| Wiring Harness Included | No |
| Mounting Type | Bolt-On |
| Mounting Bracket Included | No |
| Sensor Casing Length | 76.6 MM |
| Sensor Casing Width | 116.0 MM |
| Voltage | 12.0 2H |
| Gasket Or Seal Included | No |
| Bolt Hole Center To Bolt Hole Center | 88.3 MM |
| Mounting Hole Diameter | 5.5 MM |
| Seal Quantity | 0 |
| Sensor Casing Length | 3.0 IN |
| Sensor Casing Width | 4.5 IN |
| Bolt Hole Center To Bolt Hole Center | 3.4 IN |
| Mounting Hole Diameter | 0.2 IN |
| Intake Air Temperature (IAT) Included | Yes |
Additional Information
| Warranty Distance UOM | DH |
| Warranty Distance | 12000 |
| Harmonized Tariff Code (Schedule B) | 9026800000 |
| Harmonized Tariff Code (HTS) | 9026802000 |
| Warranty Time UOM | MO |
| Warranty Time | 12 |
| Country of Origin (Primary) | CN |
| UPC | 00689604153185 |
| VMRS Code | 045021019 |
| UNSPSC | 41111931 |
DELPHI AF10043 Cross References
| Brand | Part Number |
|---|---|
| ACDelco | 2133460, 213364, 19330121, 213-4160 |
| Airtex | 5S8050, 5S2636 |
| BWD | 28411M, MA1062 |
| Beck/Arnley | 158-1465 |
| Blue Streak Electronics New | MF8411N |
| BorgWarner | 28411M |
| CARDONE New | 86-8411 |
| CARDONE Reman | 74-8411 |
| Carquest | 64-1859, MQ7202 |
| Dorman | 917-826 |
| Duralast | DL-6012 |
| Echlin | MAF68411, XTP48411 |
| GLOBAL PARTS DISTRIBUTORS | 1813298 |
| General Motors | 15 90 4068, 19330121, 25 31 8411, 25168491 |
| HELLA | 358095881 |
| Isuzu | 8-15904-068-0, 8-19330-121-0, 8-25318-411-0 |
| N/A | 748411, 868411, 8159040680, 8253184110, 641859, 917826, 1581465, 15904068, 25318411, 214130, DL-6145, 245-1107 |
| NAPA Reman Computers | MAF68411, XTP48411 |
| NGK SPARK PLUGS | MG0001 |
| NTK | MG0001 |
| Richporter | MA145 |
| STANDARD IGNITION | MAS0203 |
| Saab | 15 90 4068, 25 31 8411 |
| Spectra Premium | MA145 |
| Standard Motor Products | MF8411, MAS0203, MAS0277 |
| VEMO | V51720227 |
| WAI | MAF8411T |
| WALKER PRODUCTS | 245-1107 |
| Wells | SU1287 |
DELPHI AF10043 Fits Vehicles
- GMC C8500 Topkick (2003-2009)
- Chevrolet Silverado 1500 HD Classic (2007)
- GMC Sierra 1500 HD Classic (2007)
- GMC Sierra 3500 Classic (2007)
- GMC Sierra 2500 HD Classic (2007)
- GMC Sierra 1500 Classic (2007)
- Chevrolet Silverado 3500 Classic (2007)
- Chevrolet Silverado 2500 HD Classic (2007)
- Chevrolet Silverado 1500 Classic (2007)
- Chevrolet C8500 (2003-2009)
- GMC C3500HD (2001-2002)
- Chevrolet C3500HD (2001-2002)
- Cadillac Escalade EXT (2002-2006)
- Cadillac Escalade ESV (2003-2006)
- Chevrolet Trailblazer EXT (2003-2006)
- GMC Envoy XL (2003-2006)
- GMC Envoy XUV (2004-2005)
- Chevrolet C7500 Kodiak (2003-2009)
- GMC C7500 Topkick (2003-2009)
- GMC C5500 Topkick (2003-2009)
- Chevrolet C5500 Kodiak (2003-2009)
- Chevrolet C6500 Kodiak (2003-2009)
- GMC C6500 Topkick (2003-2009)
- GMC C4500 Topkick (2003-2009)
- Chevrolet C4500 Kodiak (2003-2009)
- Chevrolet Trailblazer (2006-2009)
- Hummer H2 (2004-2009)
- Saab 9-7x (2005-2009)
- Pontiac Bonneville (2005)
- Pontiac GTO (2005-2006)
- GMC Envoy (2005-2009)
- Chevrolet SSR (2003-2006)
- Cadillac CTS (2004-2005)
- Buick Rainier (2004-2007)
- Oldsmobile Aurora (2001-2003)
- GMC Yukon XL 2500 (2000-2006)
- GMC Yukon XL 1500 (2000-2006)
- GMC Yukon (2000-2006)
- GMC Sierra 3500 (2001-2006)
- GMC Sierra 2500 HD (2001-2006)
- GMC Sierra 2500 (1999-2004)
- GMC Sierra 1500 HD (2001-2003, 2005-2006)
- GMC Sierra 1500 (1999-2006)
- Chevrolet Tahoe (2000-2006)
- Chevrolet Suburban 2500 (2000-2006)
- Chevrolet Suburban 1500 (2000-2006)
- Chevrolet Silverado 3500 (2001-2006)
- Chevrolet Silverado 2500 HD (2001-2006)
- Chevrolet Silverado 2500 (1999-2004)
- Chevrolet Silverado 1500 HD (2001-2003, 2005-2006)
- Chevrolet Silverado 1500 (1999-2006)
- Chevrolet Corvette (2001-2007)
- Chevrolet Avalanche 2500 (2002-2006)
- Chevrolet Avalanche 1500 (2002-2006)
- Cadillac Seville (2000-2004)
- Cadillac Escalade (2002-2006)
- Cadillac Eldorado (2000-2002)
- Cadillac DeVille (2000-2005)
- Isuzu Ascender (2003-2006)
DELPHI AF10043 Customer Reviews
No reviews yet
Be the first to review this product!
DELPHI AF10043 Questions & Answers
No questions yet
Be the first to ask a question about this product!
