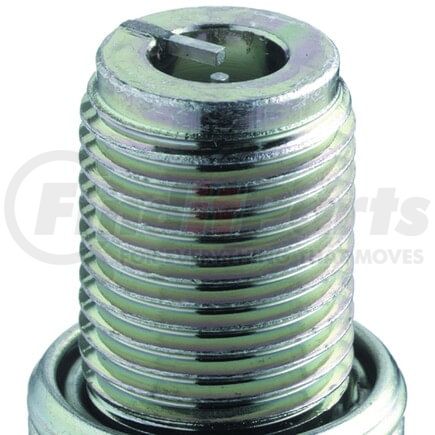

(888) 312-8812 Login SignupNGK SPARK PLUGS 4482 Spark Plug - Racing Series, Platinum, 14mm Thread Diameter, 13/16" Hex, 0.028" Preset Gap, Solid Terminal
Tap to view 1 more
MSRP: $54.32
$4949
Save $4.83
Limited availability at this price!
In Stock
Get it by Friday, Jan 9
NGK SPARK PLUGS 4482 Part Description
Manufacturer
Product Description
Spark Plug - Racing Series, Platinum, 14mm Thread Diameter, 13/16" Hex, 0.028" Preset Gap, Solid Terminal
Features & Benefits
- DESIGNED FOR RACING: Low angle tip design built to withstand extreme heat and vibration
- RECOMMENDED USAGE: Racing use only
- RECOMMENDED USAGE: Racing use only, featuring special configurations and designs to ensure durability and ignitability
- NGK's OE CERAMIC TECHNOLOGY: High grade alumina silicate ceramic creates a stronger insulator for optimal dielectric performance
- SOLID COPPER CORE: 98% pure copper core offers superior heat dissipation, conductivity and ultra wide heat ranges
- COLD-ROLLED THREADS: Prevents cross-threading and damage to cylinder heads
- TRIVALENT METAL PLATING: Delivers superior anti-corrosion and anti-seizing properties, ensuring ease of installation and removal
Spark Plug - Racing Series, Platinum, 14mm Thread Diameter, 13/16" Hex, .028" Preset Gap, Solid Terminal
NGK SPARK PLUGS 4482 Specifications
Product Attributes
| Stock Number | 4482 |
| Part Number | R6725-115 |
| Resistance | 5000.0 82 |
| Ground Electrode Tip Design | Pin Type |
| Ground Configuration | Slant |
| Ground Electrode Core Material | Platinum |
| Electrical Terminal Type | Non-Removable Nut |
| Center Electrode Core Material | Copper |
| Center Electrode Tip Material | Platinum |
| Pre-Gap Size | .028 IN |
| Ground Electrode Quantity | 1 |
| Hex Size | 13/16 IN |
| Insulator Height | 67.00 MM |
| Manufacturer Heat Range | 12 |
| Seat Type | Flat |
| Reach | 21.5 MM |
| Thread Diameter | 14.00 MM |
| Short Style Spark Plug | No |
| Service Number | R6725-115 |
| Washer(s) Included | Yes |
| Grade Type | Performance |
| Hex Size | 13/16" |
| Insulator Height | 2.64 IN |
| Reach | 0.846 IN |
| Thread Diameter | 0.551 IN |
| Insulator Material | Ceramic |
| Resistor Type | Yes |
| Skirt Length | 0.0 IN |
| Ground Electrode Tip Material | Platinum |
| Skirt | No |
| Center Electrode Insulator Tip Projection | 0.00 IN |
| Center Electrode Design | Fine Wire |
| Washer Type | Crush |
| Center Electrode Projection | Non-Projected |
Additional Information
| Harmonized Tariff Code (HTS) | 8511100000 |
| Country of Origin (Primary) | JP |
| UPC | 00087295144824 |
| VMRS Code | 033003005 |
| UNSPSC | 26101732 |
NGK SPARK PLUGS 4482 Part Interchanges
| Brand | Part Number |
|---|---|
| DENSO Auto Parts | 5741, IRE01-35 |
| NGK | 4482 |
