(888) 312-8812 Login SignupHORTON 79A9762 Engine Cooling Fan Clutch
Tap to view 3 more
MSRP: $2,699.01
$1,28399
Save $1,415.02
+$586.67 core deposit
Total price w/ core: $1,870.66
In Stock
Get it by Wednesday, Sep 9

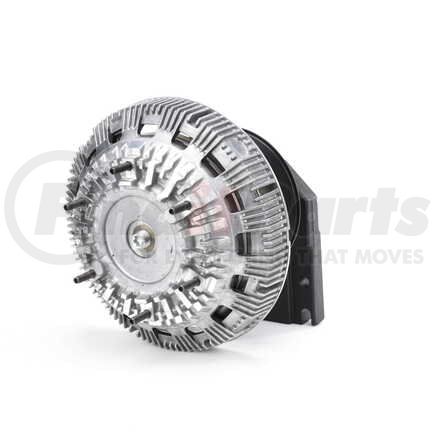

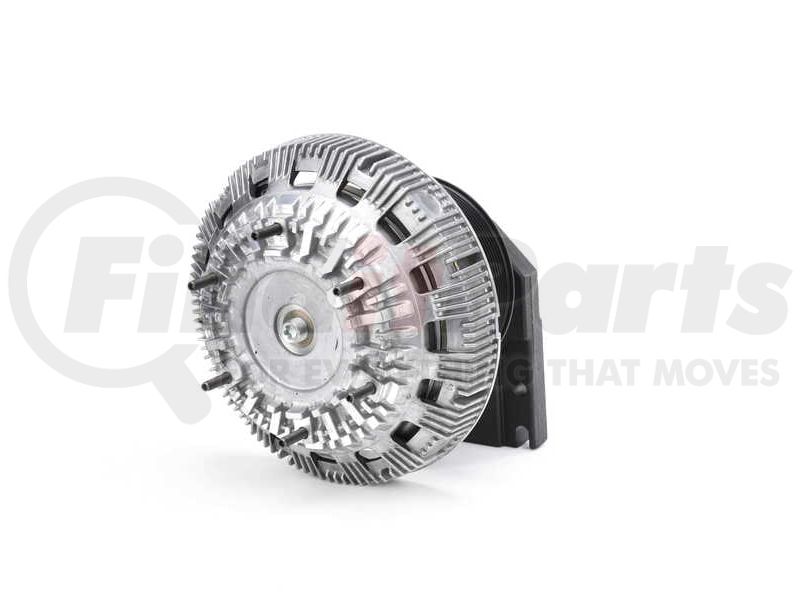

HORTON 79A9762 Part Description
Manufacturer
Product Description
Engine Cooling Fan Clutch
Application Summary
KENWORTH, PETERBILT
Features & Benefits
- Built to the same specifications as Horton Genuine models
- Easy-to-install, exact drop-in replacements
- Total cost can be less than rebuilding
- Two-year warranty for line-haul applications
- Credit for old Horton or competitor cores
- Low eddy-current speeds reduce noise, increase available horsepower, conserve fuel and minimize radiator abrasion
- Higher, spring-actuated fan speeds make sure necessary cooling is delivered
- Faster engine warm-ups in cold weather
- Premium bearings and friction liners
- High torque for turning large fans
- Lower parts count for easy installation and maintenance
Two-speed fan clutch, fan clutch, engine cooling, fan drive, performance, cooling system, horsepower, performance, reman
HORTON 79A9762 Specifications
Product Attributes
| BACK PULLEY DIAMETER | 6.36 IN |
| BELT CONFIGURATION | 12PK |
| Belt Groove Location | 3.39 IN |
| BOLT CIRCLE | 6 IN |
| Center of JB To Top Right Mounting Hole | 4.13 IN |
| Fan Blade Stud Length | 1.1 IN |
| FAN PILOT DIAMETER | 5 IN |
| Heavy Duty | 1 |
| HORIZONTAL MOUNTING DISTANCE | 3.94 IN |
| Overall Length | 10.16 IN |
| Stud Thread Size | .312-18 UNC IN |
| VERTICAL MOUNTING DISTANCE | 1.57 IN |
| Fan Bolt Circle | 6 |
| FRONT PULLEY DIAMETER | - |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 8483604040 |
| Harmonized Tariff Code (HTS) | 8483604040 |
| NAFTA Preference Criterion Code | B |
| OEM's Part Number | 98A9762 |
| Warranty Distance | 300000 |
| Warranty Distance UOM | DH |
| Warranty Special | 7500 Hours |
| Warranty Special UOM | TX |
| Warranty Time | 36 |
| Warranty Time UOM | MO |
| VMRS Code | 042003131 |
HORTON 79A9762 Cross References
| Brand | Part Number |
|---|---|
| 98A9762, 79A9762 | |
| BorgWarner | 10023292, 10024552, 10024553, F17-6015M03 |
| Caterpillar | 20R-8415 |
| DM ADVANTAGE ON/OFF | 99A9592 |
| DM ADVANTAGE ON/OFF REMAN | 79A9592 |
| DM ADVANTAGE TWO-SPEED | 99A9762 |
| DM ADVANTAGE TWO-SPEED REMAN | 79A9762 |
| Freightliner | HOR 79A9762 |
| Horton | 98A9762, 99A9762, P99A9762, K799762, R799762 |
| KIT MASTERS | 99592-2 |
| MCI | HOR79A9762 |
| MODULATOR | 9910116 |
| Mack | 3912-79A9762 |
| NAVISTAR | FLT995922 |
| Navistar | HOR79A9762 |
| Paccar Parts | F17-6010M03, F17-6010M22, F17-6018M01, 79A9762RMAN |
