National Seals 32305 - National 32305 Multi-Purpose Bearing
- Part Number
- 32305
- Manufacturer
- NATIONAL SEALS
- Description
-

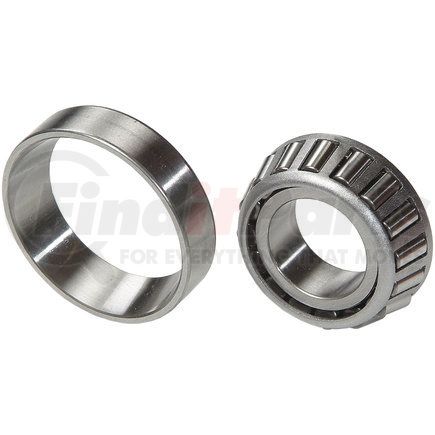

National 32305 Multi-Purpose Bearing
details
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
Sometimes we may have similar parts for sale, click the button below to see if anything matches.
NATIONAL SEALS part description
Product Description
Multi-Purpose Bearing
Application Summary
2013-2015 Subaru XV Crosstrek (Rear Inner); 2013-2019 Subaru WRX (Rear Inner, Rear Outer); 2013-2019 Subaru WRX STI (Rear Outer, Rear Inner); 2016-2019 Subaru Crosstrek (Rear Inner); 2003-2006 Subaru Baja (Rear Inner); 1978-1987 Subaru Brat (Rear Inner); 1975-1989 Subaru DL (Rear Inner); 1979 Subaru FE (Rear Inner); 1998-2019 Subaru Forester (Rear Inner); 1975-1979 Subaru GF (Rear Inner); 1975-1989 Subaru GL (Rear Inner); 1985-1989 Subaru GL-10 (Rear Inner); 1980-1982 Subaru GLF (Rear Inner); 1993-2019 Subaru Impreza (Rear Inner, Rear Outer); 1990-2019 Subaru Legacy (Rear Inner); 1990-1994 Subaru Loyale (Rear Inner); 2000-2019 Subaru Outback (Rear Inner); 1985-1989 Subaru RX (Rear Inner); 1992-1997 Subaru SVX (Rear Inner); 1976-1987 Subaru Standard (Rear Inner); 1985-1991 Subaru XT (Rear Inner); 1989-1991 UD 1100 (Front Outer); 1992-1993 UD 1300 (Front Outer); 2004-2006 Mercedes-Benz Sprinter (Front Outer); 2005-2006 Saab 9-2X (Rear Outer, Rear Inner); 1990-1994 Nissan Axxess (Rear Outer); 1974-1977 Nissan 710 (Rear Outer); 1974-1978 Nissan B210 (Rear Outer); 1986-1988 Nissan Multi (Rear Outer); 1970-1973 Nissan B110 (Rear Outer); 1970-1973 Nissan 240Z (Rear Outer); 1995-1997 Nissan Pickup (Front Outer) (Drive: 4WD); 1980-1986 Nissan 720 (Front Outer) (Drive: 4WD); 1986-1994 Nissan D21 (Front Outer) (Drive: 4WD); 1971-1973 Nissan 1200 (Rear Outer); 1972-1973 Nissan 1300 (Rear Outer); 1965-1967 Nissan 411 (Rear Outer); 1977-1988 Nissan 200SX (Rear Outer); 1974-1975 Nissan 260Z (Rear Outer); 1975-1978 Nissan 280Z (Rear Outer); 1979-1983 Nissan 280ZX (Rear Outer); 1968-1981 Nissan 510 (Rear Outer); 1973-1976 Nissan 610 (Rear Outer); 1977-1981 Nissan 810 (Rear Outer); 1998-2004 Nissan Frontier (Front Outer) (Drive: 4WD); 1981-1984 Nissan Maxima (Rear Outer); 1987-1995 Nissan Pathfinder (Front Outer) (Drive: 4WD); 1987-1990 Nissan Sentra (Rear Outer); 1986-1988 Nissan Stanza (Rear Outer)
Features & Benefits
- CONSISTENT PERFORMANCE -- Matched cup and cone components ensure consistent performance
- PREMIUM MATERIALS -- Precision manufactured using high-quality materials for durability and performance
- OE-STYLE DESIGN -- Engineered to meet OE specifications
- COMPREHENSIVE COVERAGE -- Industry-leading coverage for domestic and import applications
- RIGOROUS TESTING -- Comprehensive testing throughout design and development processes by National engineers for quality you can count on
- RIGOROUS TESTING?--?Comprehensive?testing throughout design and development processes by National engineers for quality you can count on
Product Attributes
| Bore (inch) | 0.9843 IN |
| Bore (mm) | 25.0000 MM |
| Cone Length (inch) | 0.9449 IN |
| Cone Length (mm) | 24.0000 MM |
| Cone Radius (inch) | 0.0787 IN |
| Cone Radius (mm) | 2.0000 MM |
| Cup Length (inch) | 0.7874 IN |
| Cup Length (mm) | 20.0000 MM |
| Cup Radius (inch) | 0.0787 IN |
| Cup Radius (mm) | 2.0000 MM |
| Design | ISO Metric |
| Outside Diameter (inch) | 2.4409 IN |
| Outside Diameter (mm) | 62.0000 MM |
| Part Description | Taper Bearing Assembly |
| Series | 32300 |
| Standout (inch) | 0.2067 IN |
| Standout (mm) | 5.2500 MM |
| Type | TS |
| Width (inch) | 0.9941 IN |
| Width (mm) | 25.2500 MM |
| Grade Type | Premium |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 8482200040 |
| Harmonized Tariff Code (HTS) | 8482200040 |
| Canadian Harmonizing Tariff Code | 8482200000 |
| UPC | 00724956092918 |
Part Interchanges
- Beck/Arnley 051-4249
- SKF 32305J
- SKF BR32305
- SKF VKBA3434
- SKF VKBA6686
- SKF VKHB2057
- SKF VKHB2294
- Timken 32305
- Timken K82066
- Perfect Circle 32305
- Sealed Power F32305
- Chicago Rawhide BR32305
- Breda C280
- Breda CR2212
- Datsun/Nissan 09022-0008P
- Datsun/Nissan 38140-09400
- Datsun/Nissan 38140-13200
- Datsun/Nissan 38140-13201
- Datsun/Nissan 38140-18000
- Datsun/Nissan 40215-76000
- Datsun/Nissan 40215-76001
- Mercedes-Benz 003 981 15 05
- Mercedes-Benz 0109817505
- Mercedes-Benz 6043300025
- Mercedes-Benz 6113300825
- Mercedes-Benz 9013301025
- Subaru 8063-25020
- Volkswagen 2D0-498-625
- Lazorlite L81-2048
Fits Vehicles
- Subaru XT (1985-1991)
- Subaru SVX (1992-1997)
- Subaru Loyale (1990-1994)
- Subaru GLF (1980-1982)
- Subaru GL-10 (1985-1989)
- Subaru GF (1975-1979)
- Subaru FE (1979)
- Subaru DL (1975-1989)
- Subaru Brat (1978-1987)
- Subaru Crosstrek (2016-2019)
- Subaru WRX STI (2013-2019)
- Subaru WRX (2013-2019)
- Subaru XV Crosstrek (2013-2015)
- Subaru RX (1985-1989)
- Nissan 1300 (1972-1973)
- Nissan 1200 (1971-1973)
- Nissan B110 (1970-1973)
- Nissan 411 (1965-1967)
- Mercedes-Benz Sprinter (2004-2006)
- UD 1300 (1992-1993)
- UD 1100 (1989-1991)
- Saab 9-2X (2005-2006)
- Subaru GL (1975, 1979-1989)
- Subaru Standard (1976-1987)
- Subaru Outback (2000-2019)
- Subaru Legacy (1990-2019)
- Subaru Forester (1998-2019)
- Subaru Impreza (1993-2019)
- Subaru Baja (2003-2006)
- Nissan 240Z (1970-1973)
- Nissan Multi (1986-1988)
- Nissan B210 (1974-1978)
- Nissan Maxima (1981-1984)
- Nissan 710 (1974-1977)
- Nissan Axxess (1990-1994)
- Nissan 720 (1980-1986)
- Nissan Stanza (1986-1988)
- Nissan Sentra (1987-1990)
- Nissan Pickup (1995-1997)
- Nissan Pathfinder (1987-1995)
- Nissan Frontier (1998-2004)
- Nissan D21 (1986-1994)
- Nissan 810 (1977-1981)
- Nissan 610 (1973-1976)
- Nissan 510 (1968-1973, 1978-1981)
- Nissan 280ZX (1979-1983)
- Nissan 280Z (1975-1978)
- Nissan 260Z (1974-1975)
- Nissan 200SX (1977-1981, 1984-1988)
