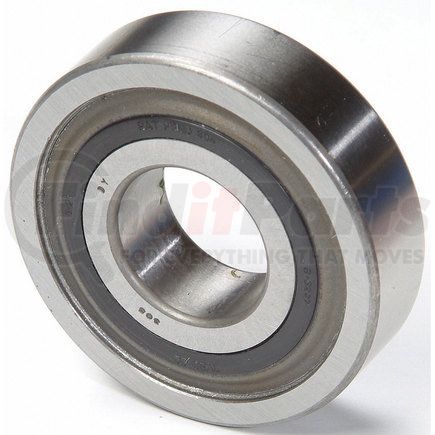

Name: National Seals 202FFH8 National 202-FFH8 Multi-Purpose Bearing
SKU: 202ffh8
Price: 28.49 USD
Availability: InStock

Multi-Purpose Bearing

Deere; Gehl; Vermeer (Ag Spec)

BUILT TO LAST -- Advanced heat treatment process for strength
PREMIUM MATERIALS -- Precision manufactured using premium-grade steel for lasting performance and extended bearing life
RELIABLE PERFORMANCE -- Element size and quantity are engineered to meet or exceed the load rating of OE bearings
COMPREHENSIVE COVERAGE -- Industry-leading coverage for domestic and import applications
RIGOROUS TESTING -- Comprehensive testing throughout design and development processes by National engineers for quality you can count on 
RIGOROUS TESTING?--?Comprehensive?testing throughout design and development processes by National engineers for quality you can count on

Bore (inch)	0.500 IN
Bore (mm)	12.700 MM
Design	Single Row Radial
Footnote	Agricultural Bearing Special
Inner Race Bore (inch)	0.500 IN
Inner Race Bore (mm)	12.700 MM
Inner Race Radius (inch)	0.025 IN
Inner Race Radius (mm)	0.635 MM
Inner Race Width (inch)	0.433 IN
Inner Race Width (mm)	11.000 MM
Outer Race Outside Diameter (inch)	1.532 IN
Outer Race Outside Diameter (mm)	38.913 MM
Outer Race Radius (inch)	0.100 IN
Outer Race Radius (mm)	2.540 MM
Outer Race Width (inch)	0.433 IN
Outer Race Width (mm)	11.000 MM
Outside Diameter (inch)	1.532 IN
Outside Diameter (mm)	38.913 MM
Part Description	Ball Bearing
Series	AGSPEC
Type	A-9
Width (inch)	0.433 IN
Width (mm)	11.000 MM
Grade Type	Premium

Country of Origin (Primary)	CN
Harmonized Tariff Code (Schedule B)	8482105048
Harmonized Tariff Code (HTS)	8482105048
Canadian Harmonizing Tariff Code	8482100000
UPC	00724956063444
