National Seals 710147 - National 710147 Multi-Purpose Seal
- Part Number
- 710147
- Manufacturer
- NATIONAL SEALS
- Description
-

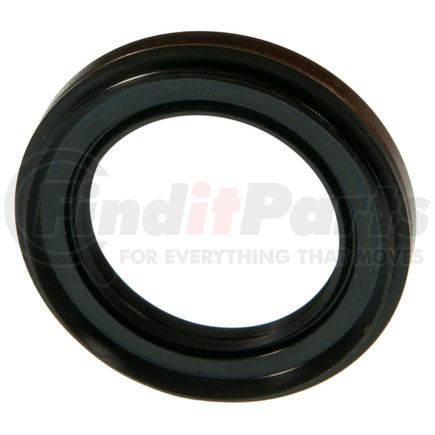

National 710147 Multi-Purpose Seal
details
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
Sometimes we may have similar parts for sale, click the button below to see if anything matches.
NATIONAL SEALS part description
Product Description
Multi-Purpose Seal
Application Summary
1986-1990 Acura Legend (Outer); 1985-1991 Honda Civic (Outer) (Body: Wagon & Drive: 4WD); 1984-1991 Honda Prelude (Outer); 2000-2009 Honda S2000 (Transmission Code: SCYM & Transmission Base Gear: 6 & Transmission Control Type: Manual)
Features & Benefits
- Design type: spring loaded; multi-lip
- Temperature range: -40°F to 225°F / -40°C to 107°C
- Temperature range: -40degF to 225degF / -40degC to 107degC
- Good low temperature capability
- Low swell in hydrocarbon fluids
- Delivers quality and reliable performance for every type of repair
Product Attributes
| Inside Diameter | 1.575 IN |
| Inside Diameter | 40.000 MM |
| Outside Diameter | 2.370 IN |
| Outside Diameter | 60.200 MM |
| Width | 0.315 IN |
| Width | 8.000 MM |
| Material | Nitrile |
| Part Description | Oil Seal |
| Sealing Material | Nitrile |
| Series | 710100 |
| Thickness | 0.315 IN |
| Thickness | 8.000 MM |
| Type | 40 |
| Unit of Dimension | Metric |
| Housing Bore | 2.362 IN |
| Housing Bore | 60.000 MM |
| Shaft Diameter | 1.575 IN |
| Shaft Diameter | 40.000 MM |
| Overall Width with Side Lip | 11.300 MM |
| Overall Width with Side Lip | 0.449 in |
| Grade Type | Premium |
Additional Information
| Country of Origin (Primary) | JP |
| Harmonized Tariff Code (Schedule B) | 4016931020 |
| Harmonized Tariff Code (HTS) | 4016931020 |
| Canadian Harmonizing Tariff Code | 4016930000 |
| UPC | 00724956234714 |
Part Interchanges
- Honda 91201-PCY-003
- Honda 91260-SD9-003
- Honda 91260-SD9-004
- Honda 91260-SD9-013
- Honda 91260-SD9-014
- Honda 91260-SD9-023
- TransTec B29634
- SKF 15841
- SKF 15842
- Chicago Rawhide 15841
- Chicago Rawhide 15842
- Lazorlite L81-9727
- Timken 710147
- Acura 91205-PW5-005
- Corteco 19027829
- Corteco 19027830
- Corteco 19027829B
- Corteco 19027830B
- Isuzu 5-09625-092-0
Fits Vehicles
- Honda S2000 (2000-2009)
- Honda Prelude (1984-1991)
- Honda Civic (1985-1991)
- Acura Legend (1986-1990)
