Name: FEDERAL MOGUL-NATIONAL SEALS 472409
SKU: 472409
Price: 71.84 USD
Availability: InStock

FEDERAL MOGUL-NATIONAL SEALS part description

Product Description

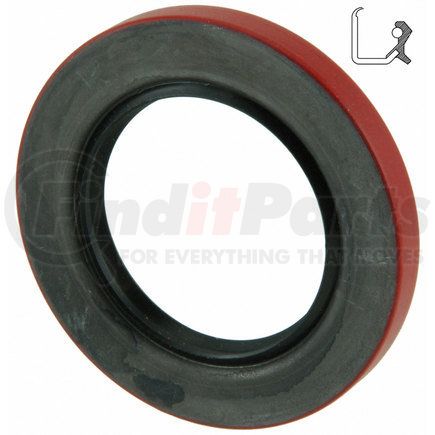

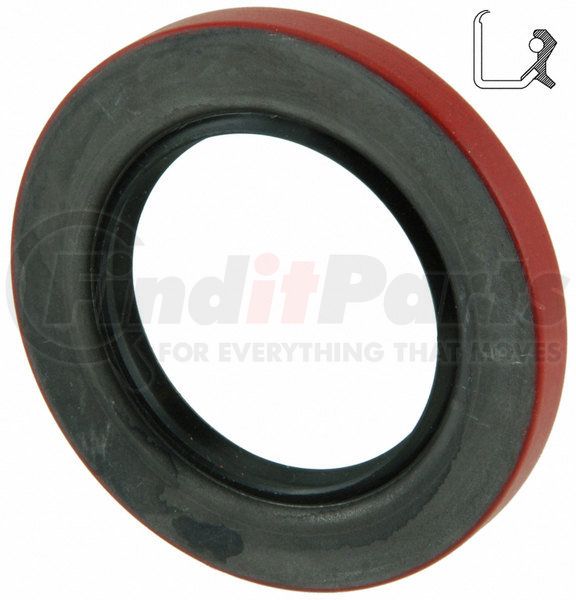

Oil Seal

Application Summary

Industrial 2.125x3.189x0.375

Features & Benefits

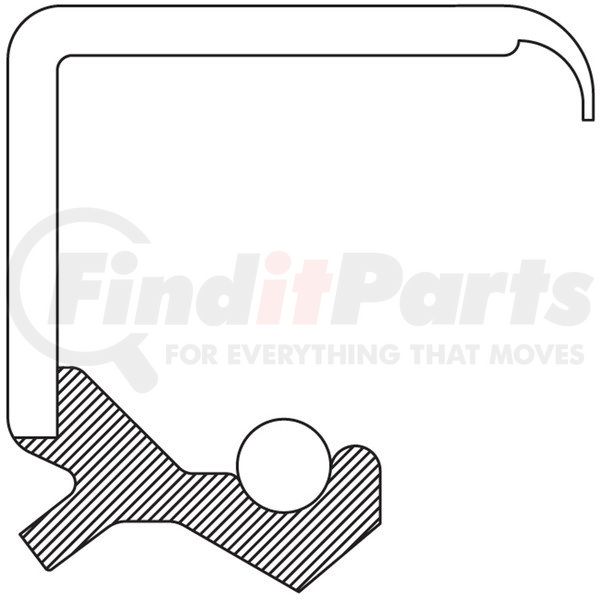

Design type: spring loaded; multi-lip
Tipo de diseno: Carga de resorte; multi-labio
Temperature range: -40degF to 225degF / -40degC to 107degC
Rango de temperatura: -40degF a 225degF / -40degC a 107degC
Good low temperature capability
Buena capacidad a bajas temperaturas
Low swell in hydrocarbon fluids
Baja expansion en fluidos de hidrocarburos
Delivers quality and reliable performance for every type of repair
Ofrece un rendimiento confiable de calidad para cada tipo de reparacion

Product Attributes

Material	Nitrile
Inside Diameter	2.125 IN
Thickness	0.375 IN
Outside Diameter	3.194 IN
Sealing Material	Nitrile
Footnote	Zero Duplication Part
Housing Bore (inch)	3.189 IN
Housing Bore (mm)	81.000 MM
Outside Diameter (inch)	3.194 IN
Outside Diameter (mm)	81.130 MM
Part Description	Oil Seal
Redicoat	Yes
Series	470000
Shaft (inch)	2.125 IN
Shaft (mm)	53.980 MM
Type	47
Unit of Dimension	Inch
Width (inch)	0.375 IN
Width (mm)	9.530 MM

Additional Information

Country of Origin (Primary)	US
Harmonized Tariff Code (Schedule B)	4016931020
Harmonized Tariff Code (HTS)	4016931020
UPC	00724956140275

Part Interchanges

The National Seals® is a proud designer and supplier of wheel bearings and oil seals with a focus on quality, safety, and continuous improvement. The key to its success may be attributed to its hardworking and dedicated team of engineers who keep pace with the industry to provide premium wheel end solutions for light and commercial vehicle applications. Federal-Mogul acquired the National Seal Division of the National Motor Bearing Company only in 1942. But the brand National Seals has already cemented itself as one of the most respected names in the industry. Over the years, it has remained fully committed to providing only the highest quality seals and bearings that meet or exceed OE specifications.
