Product Description

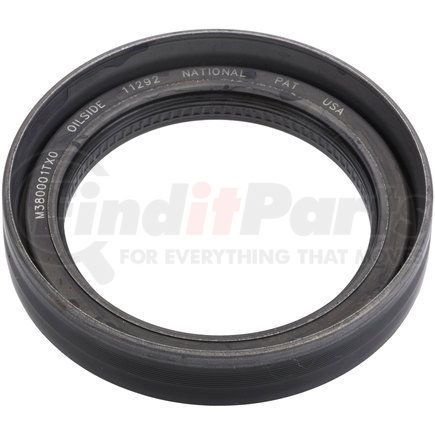

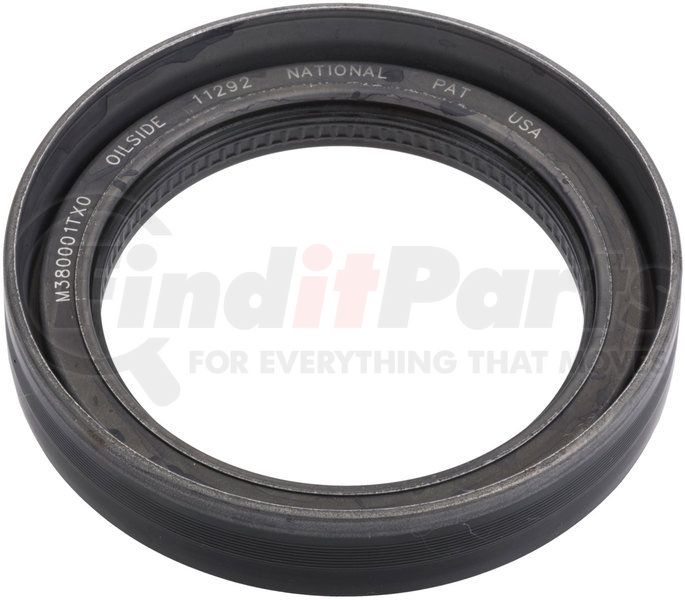

Oil Bath Seal

Application Summary

2007-2011 Isuzu FVR (Front Inner); 2004-2011 Isuzu FXR (Front Inner); 2005-2007 Isuzu HTR (Front Inner); 2005-2008 Isuzu HVR (Front Inner); 2003-2009 Chevrolet C6500 Kodiak (Front Inner); 2003-2009 Chevrolet C7500 Kodiak (Front Inner); 1997-2009 Chevrolet T6500 (Front Inner); 1997-2009 Chevrolet T7500 (Front Inner); 2003-2009 GMC C6500 Topkick (Front Inner); 2003-2009 GMC C7500 Topkick (Front Inner); 1997-2009 GMC T6500 (Front Inner); 1997-2009 GMC T7500 (Front Inner); 2005-2017 Hino 268 (Front Inner); 2009-2018 Hino 338 (Front Inner); 2011-2014 Hino 268A (Front Inner); 2009-2014 Hino 338CT (Front Inner); 1981-1994 Ford F600 (Front Inner); 1981-1998 Ford F700 (Front Inner); 1990-1999 Ford F800 (Front Inner); 2004-2011 Ford F650 (Front Inner); 2004-2011 Ford F750 (Front Inner)

Features & Benefits

  • Gold 38 Series seals feature advanced technology
  • Los retenes Gold 38 Series ofrecen tecnologia avanzada
  • Temperature range: -100degF to 450degF; -73degC to 232degC
  • Rango de temperatura: -100degF a 450degF; -73degC a 232degC
  • Triple barrier contamination system for ultimate in dirt exclusion
  • Sistema de contaminacion de triple barrera lo ultimo en exclusion de suciedad
  • Proprietary PTFE compound endures extreme temperatures, compatible with mixed lubricants and has lowest friction
  • El compuesto patentado de PTFE soporta temperaturas extremas, es compatible con lubricantes mixtos y tiene menor friccion.
  • Patented, lay-down bi-directional sealing lip provides greater sealing surface especially during wheel end movement
  • El labio de sellado bidireccional patentado proporciona una mayor superficie de sellado, especialmente durante el movimiento del extremo de la rueda

Product Attributes

Material PTFE
Width 0.910 IN
Outside Diameter 4.852 IN
Shaft Diameter 3.500 IN
Housing Bore 4.840 IN
Housing Bore (inch) 4.840 IN
Housing Bore (mm) 122.990 MM
Installation Tool RD307
Outside Diameter (inch) 4.852 IN
Outside Diameter (mm) 123.110 MM
Part Description Oil Bath Seal
Series 380000
Shaft (inch) 3.500 IN
Shaft (mm) 88.900 MM
Type 10
Unit of Dimension Inch
Width (inch) 0.910 IN
Width (mm) 23.110 MM

Additional Information

Country of Origin (Primary) US
Harmonized Tariff Code (Schedule B) 4016931020
Harmonized Tariff Code (HTS) 4016931020
UPC 00724956273713

Part Interchanges

The National Seals® is a proud designer and supplier of wheel bearings and oil seals with a focus on quality, safety, and continuous improvement. The key to its success may be attributed to its hardworking and dedicated team of engineers who keep pace with the industry to provide premium wheel end solutions for light and commercial vehicle applications. Federal-Mogul acquired the National Seal Division of the National Motor Bearing Company only in 1942. But the brand National Seals has already cemented itself as one of the most respected names in the industry. Over the years, it has remained fully committed to providing only the highest quality seals and bearings that meet or exceed OE specifications.

Fits Vehicles

  • Isuzu HVR (2005-2008)
  • Isuzu HTR (2005-2007)
  • Isuzu FXR (2004-2011)
  • Isuzu FVR (2007-2011)
  • Hino 268A (2011-2014)
  • Hino 338 (2009-2018)
  • Hino 338CT (2009-2014)
  • Ford F750 (2004-2011)
  • Ford F650 (2004-2011)
  • Ford F800 (1990-1999)
  • Ford F700 (1981-1998)
  • Ford F600 (1981-1994)
  • GMC T7500 (1997-2002, 2004-2009)
  • GMC T6500 (1997-2002, 2004-2009)
  • Chevrolet T7500 (1997-2002, 2004-2009)
  • Chevrolet T6500 (1997-2002, 2004-2009)
  • Hino 268 (2005-2017)
  • GMC C7500 Topkick (2003-2009)
  • GMC C6500 Topkick (2003-2009)
  • Chevrolet C7500 Kodiak (2003-2009)
  • Chevrolet C6500 Kodiak (2003-2009)
