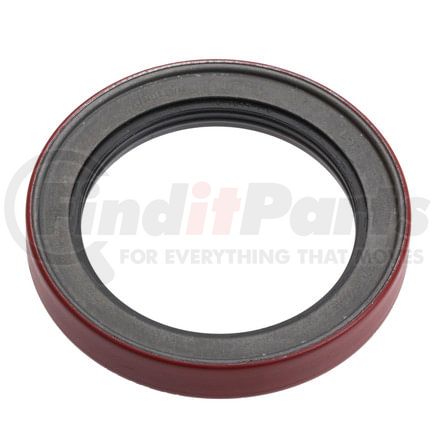

NATIONAL SEALS 370047A Part Description
Manufacturer
Product Description
Wheel Seal
Application Summary
2005-2008 Hino 185 (Rear Inner) (Qualifier: Oil Bath Seal Style, Nitrile); 1981-1994 Ford F600 (Rear Inner) (Qualifier: Oil Bath Seal Style, Bore 4.755 (in), Nitrile, with 15,000 (lb) Drive Axle); 1981-1998 Ford F700 (Rear Inner) (Qualifier: Oil Bath Seal Style, Bore 4.755 (in), Nitrile, with 15,000 (lb) Drive Axle); 1990-1999 Ford F800 (Rear Inner) (Qualifier: Oil Bath Seal Style, Bore 4.755 (in), Nitrile, with 15,000 (lb) Drive Axle); 1997 Ford F-250 HD (Rear Inner) (Qualifier: Oil Bath Seal Style, Full-Floating, Nitrile, with 10.25 (in) Ring Gear); 1985-1999 Ford F-250 (Rear Inner) (Qualifier: Oil Bath Seal Style, Full-Floating, Nitrile, with 10.25 (in) Ring Gear); 1985-1998 Ford F-350 (Rear Inner) (Qualifier: Oil Bath Seal Style, Nitrile, with 10.25 (in) Ring Gear); 1975-1976 Ford F-500 (Rear Inner) (Qualifier: Oil Bath Seal Style, Nitrile, with 15,000 (lb) Drive Axle); 1975-1977 Ford P-500 (Rear Inner) (Qualifier: Oil Bath Seal Style, Nitrile, with 15,000 (lb) Drive Axle)
Features & Benefits
- Red 37 Series oil bath seals deliver dependable point contact seal
- Temperature range: -40°F to 225°F; -40°C to 107°C
- Temperature range: -40degF to 225degF; -40degC to 107degC
- Unitized construction provides greater structural integrity, easier installation and main lip protection
- Abrasion-resistant nitrile with spring-loaded main lip for positive sealing with reduced shaft interference
- Unique rubber I.D. and O.D. includes patented SURE-LOCK® ribs that prevent shaft leaks and bore contamination
- Unique rubber I.D. and O.D. includes patented SURE-LOCK(R) ribs that prevent shaft leaks and bore contamination
NATIONAL SEALS 370047A Specifications
Product Attributes
| Outside Diameter | 4.761 IN |
| Outside Diameter | 120.930 MM |
| Width | 0.700 IN |
| Width | 15.370 MM |
| Material | Nitrile |
| Housing Bore | 4.755 IN |
| Housing Bore | 120.780 MM |
| Installation Tool | RD277 |
| Part Description | Oil Bath Seal |
| Redicoat | Yes |
| Series | 370000 |
| Shaft Diameter | 3.437 IN |
| Shaft Diameter | 87.300 MM |
| Type | 06 |
| Unit of Dimension | Inch |
| Grade Type | Premium |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 4016931020 |
| Harmonized Tariff Code (HTS) | 4016931020 |
| Canadian Harmonizing Tariff Code | 4016930000 |
| UPC | 00724956107025 |
NATIONAL SEALS 370047A Part Interchanges
| Brand | Part Number |
|---|---|
| Volkswagen | 600-501-317A |
| White Truck | 3103514 |
| General Motors | 2064731 |
| Chicago Rawhide | 34386, 34387, 34384 |
| Timken | 370047A, 11S34370T, 11S34370 |
| Rockwell International | A1205W-1557 |
| Stemco | 309-0935, 390-9035, 392-9035, 397-9735 |
| Hino | A-1205-W-1557 |
| SKF | 34384, 34387, 34386 |
| ACDelco | 299-36, 290-78 |
| Motorcraft | BRS-83, BRS-49, BRS-48, BRS-4, BRS-7 |
| Ford | C8TA1173C, C8TA1173D, D0HZ1175B, D3TA1175CA, E2HS1175AA, E2HS1175CA, E5TW1177BA, E5TZ1177B, E7HZ1175A, E8TW1177BA, E8TZ1177B, F0TW1177AA, F0TZ1177A, F4TZ-1177B, F4TZ-1177-C, 2667874, F2HZ1175A, F4TZ-1S177BA, F3TW-1177CA, F4TZ1S177C, F4TZ-1S177B, MF4TZ-1177B, MF4TZ-1S177B, F2HZ-1S175-A, E7HZ-1S175-A |
| Victor Reinz | SS47880SF, SS64558, 47880, 47880SF, 48096, 64558 |
| Meritor | A-1205-W-1557 |
NATIONAL SEALS 370047A Fits Vehicles
- Ford P-500 (1975-1977)
- Ford F-500 (1975-1976)
- Ford F-250 (1985-1999)
- Ford F-250 HD (1997)
- Ford F-800 (1990-1999)
- Ford F-700 (1981-1998)
- Ford F-600 (1981-1994)
- Ford F-350 (1985-1998)
- Hino 185 (2005-2008)
NATIONAL SEALS 370047A Cross References
We have 2 alternatives for the 370047A by NATIONAL SEALS:
