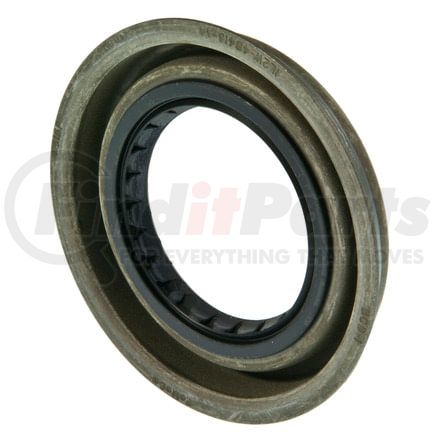

National Seals 100537 - OIL SEAL
- Part Number
- 100537
- Manufacturer
- NATIONAL SEALS
- Description
-
OIL SEAL
details
$1199
In stock
limited availability at this price!
. Learn more
NATIONAL SEALS part description
Product Description
Drive Axle Shaft Seal
Application Summary
1999-2000 Panoz AIV Roadster (Rear) (Qualifier: with 8.8 (in) Ring Gear, with Ford Axle, Independent Rear Suspension); 2001-2007 Panoz Esperante (Rear) (Qualifier: Viton Type, with 8.8 (in) Ring Gear, Independent Rear Suspension); 2002-2006 Ford Expedition (Rear) (Qualifier: Viton Type, with 9.75 (in) Ring Gear, Independent Rear Suspension, with 8.8 (in) Ring Gear); 2002-2005 Ford Explorer (Rear) (Doors: 4 / Qualifier: Viton Type, with 8.8 (in) Ring Gear, Independent Rear Suspension); 1999-2004 Ford Mustang (Rear) (Qualifier: with 8.8 (in) Ring Gear, with Ford Axle, Independent Rear Suspension, Viton Type); 1989-1997 Ford Thunderbird (Rear) (Qualifier: with 8.8 (in) Ring Gear, with Ford Axle, Independent Rear Suspension); 2003-2005 Lincoln Aviator (Rear) (Qualifier: Viton Type, with 8.8 (in) Ring Gear, Independent Rear Suspension); 2002 Lincoln Blackwood (Rear) (Qualifier: Viton Type, with 9.75 (in) Ring Gear, Independent Rear Suspension); 1989-1992 Lincoln Mark VII (Rear) (Qualifier: with 8.8 (in) Ring Gear, with Ford Axle, Independent Rear Suspension); 1993-1998 Lincoln Mark VIII (Rear) (Qualifier: with 8.8 (in) Ring Gear, with Ford Axle, Independent Rear Suspension); 2002-2006 Lincoln Navigator (Rear) (Qualifier: Viton Type, with 8.8 (in) Ring Gear, Independent Rear Suspension, with 9.75 (in) Ring Gear); 2005-2007 Avanti Avanti (Rear) (Qualifier: Viton Type, with 8.8 (in) Ring Gear, Independent Rear Suspension); 1989-1997 Mercury Cougar (Rear) (Qualifier: with 8.8 (in) Ring Gear, with Ford Axle, Independent Rear Suspension); 2002-2005 Mercury Mountaineer (Rear) (Qualifier: Viton Type, with 8.8 (in) Ring Gear, Independent Rear Suspension)
Features & Benefits
- Design type: spring loaded; multi-lip
- Temperature range: -40°F to 400°F / -40°C to 204°C
- Temperature range: -40degF to 400degF / -40degC to 204degC
- Excellent high temperature capabilities
- Compatible with wide range of fluids
- Delivers quality and reliable performance for every type of repair
Product Attributes
| Inside Diameter | 1.811 IN |
| Inside Diameter | 46.000 MM |
| Outside Diameter | 2.881 IN |
| Outside Diameter | 73.177 MM |
| Width | 0.472 IN |
| Width | 12.000 MM |
| Material | Fluoro-Elastomer |
| Part Description | Oil Seal |
| Redicoat | Yes |
| Series | 100000 |
| Shaft Diameter | 1.811 IN |
| Shaft Diameter | 46.000 MM |
| Thickness | 0.472 IN |
| Thickness | 12.000 MM |
| Type | 74 |
| Unit of Dimension | Metric |
| Housing Bore | 2.874 IN |
| Housing Bore | 73.000 MM |
| Flanged Outside Diameter | 3.228 in |
| Flanged Outside Diameter | 82.000 mm |
| Grade Type | Premium |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 4016931020 |
| Harmonized Tariff Code (HTS) | 4016931020 |
| Canadian Harmonizing Tariff Code | 4016930000 |
| UPC | 00614046899049 |
Part Interchanges
Fits Vehicles
- Mercury Cougar (1989-1997)
- Lincoln Mark VIII (1993-1998)
- Lincoln Mark VII (1989-1992)
- Lincoln Blackwood (2002)
- Ford Thunderbird (1989-1997)
- Panoz AIV Roadster (1999-2000)
- Avanti Avanti (2005-2007)
- Ford Expedition (2002-2006)
- Ford Explorer (2002-2005)
- Panoz Esperante (2001-2007)
- Mercury Mountaineer (2002-2005)
- Lincoln Navigator (2002-2006)
- Lincoln Aviator (2003-2005)
- Ford Mustang (1999-2004)
