NATIONAL SEALS part description

Product Description

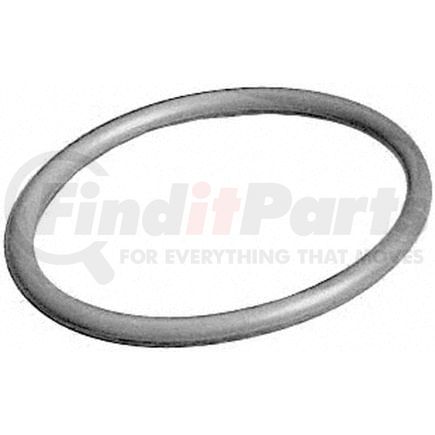

Multi-Purpose O-Ring

Application Summary

1/16 Width x 1/2 ID x 5/8 OD

Features & Benefits

  • Standard size
  • Temperature range: -40°F to 225°F; -40°C to 107°C
  • Excellent resistance to petroleum-based oils and fuels, water & alcohol
  • Good resistance to acids & bases (except those with a strong oxidizing effect)
  • Designed for a variety of industrial and automotive applications

Product Attributes

Outside Diameter 0.629 IN
Outside Diameter 16.000 MM
Inside Diameter 12.400 MM
Inside Diameter 0.489 IN
Thickness 0.070 IN
Thickness 1.800 MM
Material Nitrile
Part Description O-Ring
Inside Diameter (Fraction) 1/2
Outside Diameter (Fraction) 5/8
Product Description O-Ring
Standard Unit Pack 10
Unit of Dimension Inch
Width (Fraction) 1/16

Additional Information

Country of Origin (Primary) US
Harmonized Tariff Code (Schedule B) 4016931010
Harmonized Tariff Code (HTS) 4016931010
UPC 00614046816930
