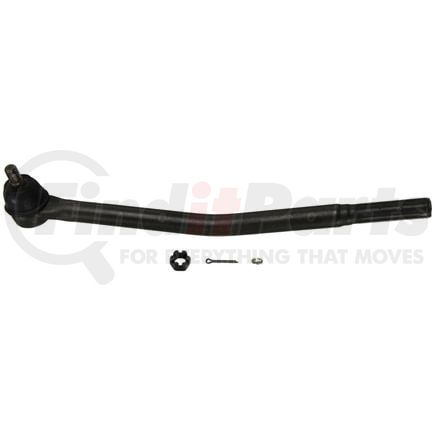

(888) 312-8812 Login SignupMOOG DS1289 MOOG DS1289 Steering Tie Rod End
Tap to view 3 more
MSRP: $121.29
$5549
Save $65.80
Limited availability at this price!
In Stock
Get it by Wednesday, Feb 4
MOOG DS1289 Part Description
Manufacturer
Product Description
Steering Tie Rod End
Application Summary
1999-2006 Ford E-350 Super Duty (Front Left Inner) (Qualifier: Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces); 2003-2006 Ford E-450 Super Duty (Front Left Inner) (Qualifier: Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces); 1999-2002 Ford E-450 Econoline Super Duty (Front Left Inner) (Qualifier: Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces); 1996-1999 Ford Econoline Super Duty (Front Left Inner) (Qualifier: Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces); 1992-2002 Ford E-250 Econoline (Front Left Inner) (Qualifier: Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces); 2003-2006 Ford E-250 (Front Left Inner) (Qualifier: Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces); 1992-1998 Ford E-350 Econoline (Front Left Inner) (Qualifier: Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces); 2003-2005 Ford E-350 Club Wagon (Front Left Inner) (Qualifier: Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces); 1992-2002 Ford E-350 Econoline Club Wagon (Front Left Inner) (Qualifier: Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces)
Features & Benefits
- ABSORBS IMPACT -- Belleville preload washer helps eliminate spring bind and shattering during shock load
- PROBLEM SOLVER® GUSHER BEARING -- Metal-to-metal design provides strength and allows grease to flow through bearing surface for reduced friction and long life
- STRONG AND DURABLE -- Ball studs are heat treated to match or exceed OE requirements to inhibit premature failure and improve fatigue strength
- RESTORES LIKE-NEW STEERING -- Patented pressed-in cover plate seals out debris and minimizes looseness, reducing bearing wear and promoting longer life
- GREASEABLE SOCKET -- Reduces corrosion and wear by allowing new lubricant to flush contaminants
- EASY TO INSTALL -- Precision tolerances for easy installation and steering alignment giving you a perfect fit right out of the box
- RIGOROUS TESTING -- Comprehensive testing throughout design and development processes by MOOG engineers for quality you can count on
- COMPREHENSIVE COVERAGE -- Available for foreign and domestic nameplates
Product Description
UPT LIGHT DUTY PARTS
UPT LIGHT DUTY PARTS
MOOG DS1289 Specifications
Product Attributes
| End 1 Gender | MALE |
| End 1 Thread Diameter | 22.0 MM |
| End 1 Thread Direction | Clockwise |
| End 1 Thread Pitch | 1.5 MM |
| End 2 Gender | Male |
| End 2 Thread Diameter | 14.0 MM |
| End 2 Thread Pitch | 1.5 MM |
| Length - Stud Center to End | 17.800 IN |
| Dust Boot Included | Yes |
| Greaseable | Yes |
| Type | BENT |
| Part Description | Steering Tie Rod End |
| End 1 Thread Diameter | 22.0 MM |
| End 1 Thread Pitch | 1.5 mm |
| End 2 Thread Diameter | 14.0 MM |
| End 2 Thread Pitch | 1.5 MM |
| Grade Type | Premium |
Additional Information
| Country of Origin (Primary) | US |
| Canadian Harmonizing Tariff Code | 8708949900 |
| Harmonized Tariff Code (Schedule B) | 8708948000 |
| Harmonized Tariff Code (HTS) | 8708947550 |
| Refurbished Part | N |
| Remanufactured Part | N |
| UPC | 00080066417462 |
| VMRS Code | 011001031 |
| UNSPSC | 25174205 |
MOOG DS1289 Cross References
| Brand | Part Number |
|---|---|
| 080066417462 | |
| ACDelco | 45A2062, 46A2062A |
| AutoZone | DS1289 |
| Autospecialty | 12-85009 |
| Centric Parts | 612.65086 |
| DORMAN | D1289 |
| Delphi | TA2799 |
| Dorman | 531-303, D1289XL |
| Dorman - OE Solutions | 531-303 |
| Dorman - Premium | D1289XL |
| Duralast | DS1289 |
| Falcon Steering Systems | DS1289 |
| Firestone | DS1289 |
| Ford | F2UZ-3A130B |
| Import Direct Chassis | DS1289 |
| MAS Industries | D1289 |
| Mcquay-Norris | DS1289E, DS1289 |
| Mevotech | MDS1289 |
| Mevotech Supreme | MDS1289 |
| NAPA | DS1289, 269-5119 |
| NAPA Chassis Parts | 269-5119, 2695119 |
| NAPA Proformer | DS1289 |
| Parts Master | DS1289 |
| Perfect Circle | 269-5119 |
| Raybestos Brakes | 405-1062B, 405-1062 |
| SUSPENSIA | X15TE7547 |
| TRW | DS1289 |
| TRW Steering and Suspension Parts | JTE1531, DS1289 |
MOOG DS1289 Fits Vehicles
- Ford E-350 Super Duty (1999-2006)
- Ford E-450 Econoline Super Duty (1999-2002)
- Ford E-350 Econoline Club Wagon (1992-2002)
- Ford E-350 Club Wagon (2003-2005)
- Ford E-350 Econoline (1992-1998)
- Ford E-250 (2003-2006)
- Ford E-250 Econoline (1992-2002)
- Ford Econoline Super Duty (1996-1999)
- Ford E-450 Super Duty (2003-2006)
MOOG DS1289 Customer Reviews
No reviews yet
Be the first to review this product!
MOOG DS1289 Manufacturer Information
For over 100 years, Moog® has been an industry leader in mid- to high-end aftermarket parts for steering, suspension, and driveline systems worldwide. Utilized by daily commuters to entire fleets, Moog parts have become synonymous with reliable performance that’s just as good or even better than their OE counterparts. Moog also incorporates innovative features in their products not found in competing products, such as patented forged steel bodies and metal “gusher” bearings that greatly reduce friction across moving components. The brand also leads the way in after-sales support, with comprehensive technical assistance and training materials available for customers around the world.
