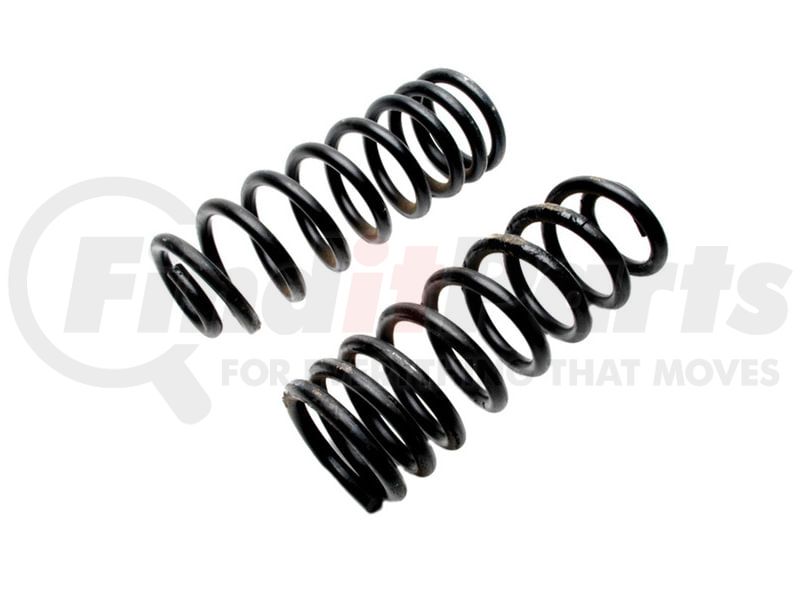

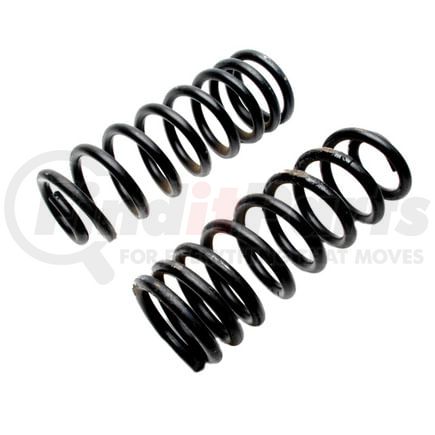

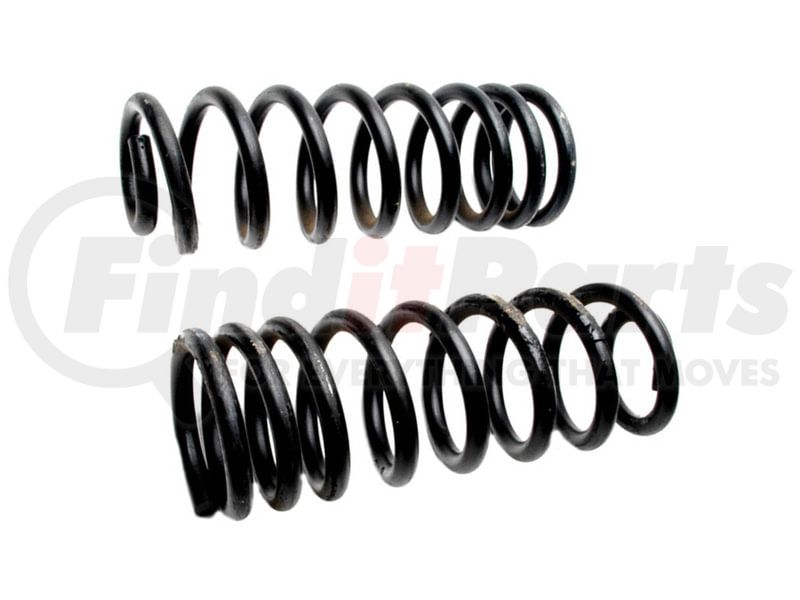

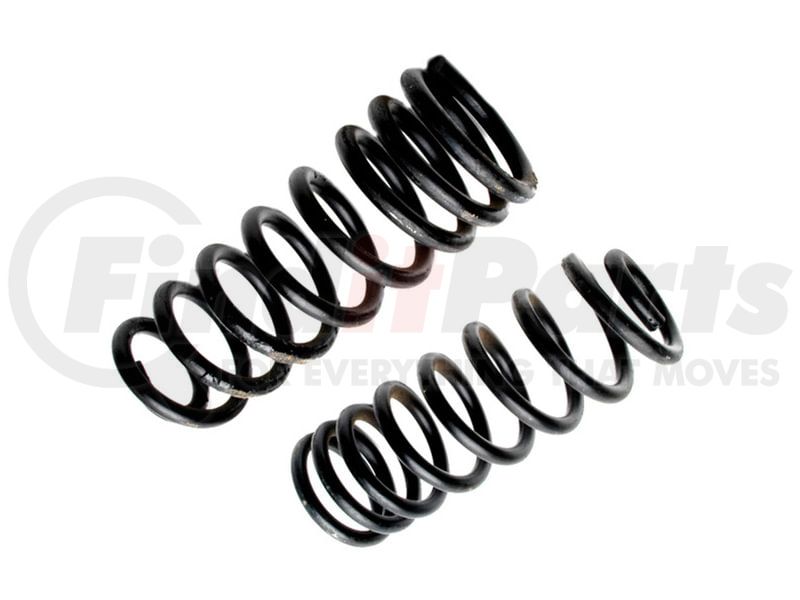

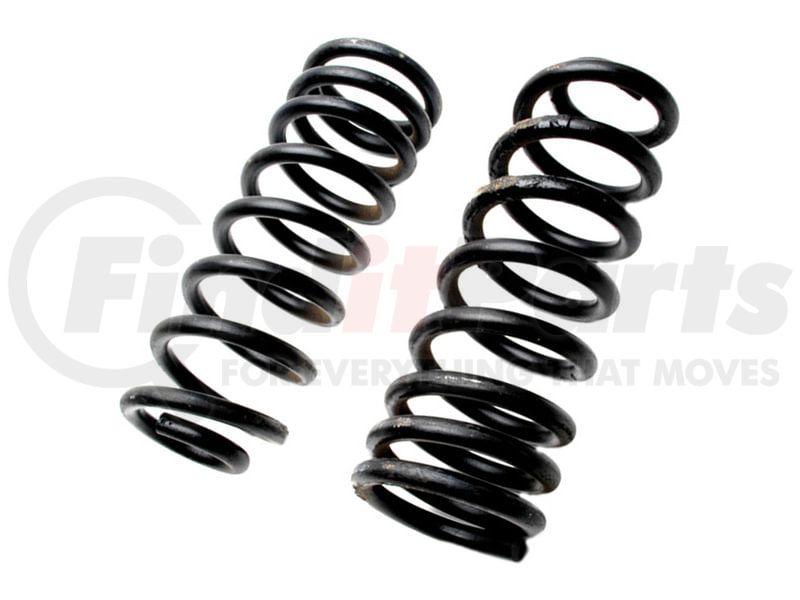

MOOG CC836 - Coil Spring Set
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
Sometimes we may have similar parts for sale, click the button below to see if anything matches.
MOOG part description
California Proposition 65 Warning
California Proposition 65 Warning
Product Description
Coil Spring Set
Application Summary
Ford: Bronco II (1984, 1986-1990), Ranger (1984-1985)
Features & Benefits
- 100% Load tested
- Easy to install
- Provides like-new steering
- Designed to lower stresses for longer service life
- Worn or sagging coil springs can cause premature tire wear due to vehicle misalignment
Product Attributes
| Wire Diameter | 0.60 IN |
| Wire Diameter | 15.50 MM |
| Spring Color | Black |
| Front Spring Outside Diameter | 4.720 IN |
| Front Spring Relaxed Length | 13.72 IN |
| Front Spring Relaxed Length | 348.50 MM |
| Front Spring Compressed Length | 10.50 IN |
| Front Spring Compressed Length | 266.70 MM |
| Rear Spring Relaxed Length | 13.72 IN |
| Rear Spring Relaxed Length | 348.50 MM |
| Rear Spring Compressed Length | 10.50 IN |
| Rear Spring Compressed Length | 266.70 MM |
| Rear Spring Outside Diameter | 4.720 IN |
| Bar Diameter (in.) | 0.6 |
| Bar Diameter (mm) | 15.5 |
| End Type 1 | Squared |
| End Type 2 | Pigtail |
| Free Height (in.) | 13.72 |
| Free Height (mm) | 348.5 |
| ID (in.) | 3.5 |
| ID (MM) | 88.9 |
| Installation Height (in.) | 10.5 |
| Installation Height (mm) | 266.7 |
| Load (lbs) | 1075 |
| Spring Rate (lbs Per in.) | 357 |
| Spring Type | Variable Rate |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 8708806590 |
| Harmonized Tariff Code (HTS) | 8708806590 |
| Remanufactured Part | N |
| UPC | 00080066163864 |
