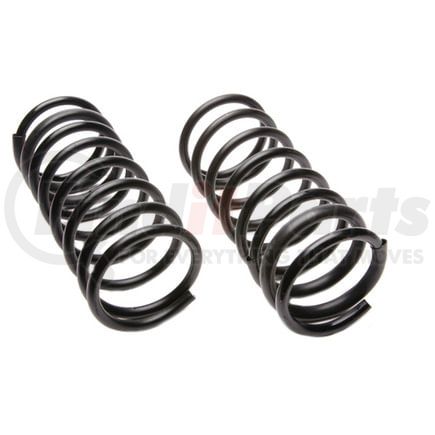

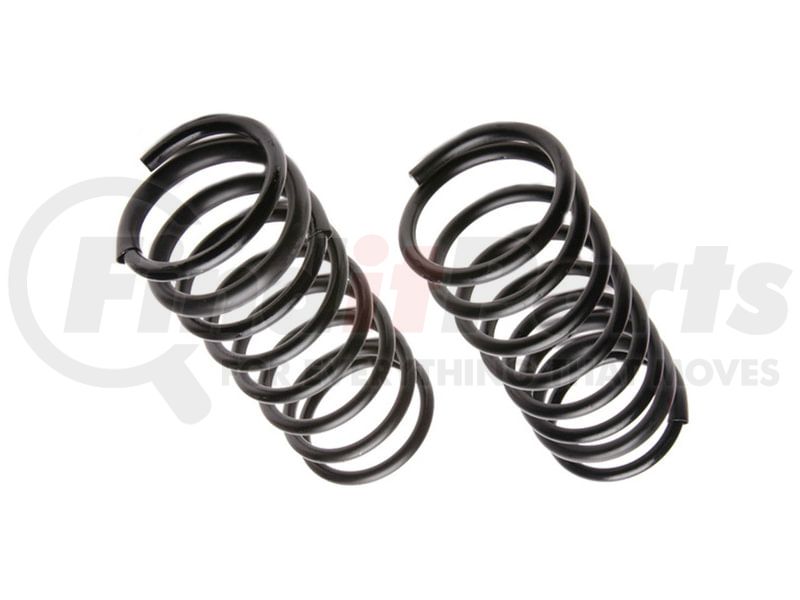

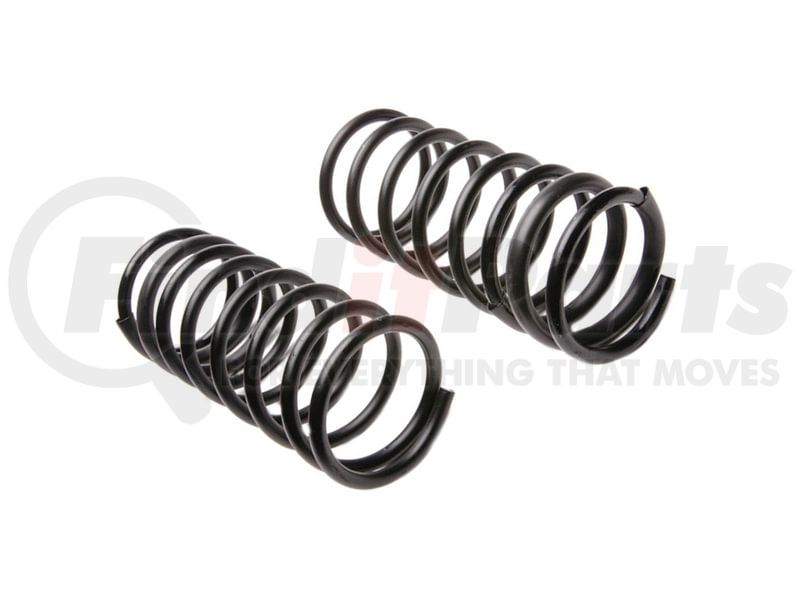

MOOG CC719 Part Description
Manufacturer
Product Description
Coil Spring Set
Application Summary
1993-1997 Chrysler Concorde (Rear) (Qualifier: Variable Rate); 1994-1997 Chrysler LHS (Rear) (Qualifier: Variable Rate); 1994-1996 Chrysler New Yorker (Rear) (Qualifier: Variable Rate); 1993-1997 Chrysler Intrepid (Rear) (Qualifier: Variable Rate); 1993-1997 Dodge Intrepid (Rear) (Qualifier: Variable Rate); 1993-1997 Eagle Vision (Rear) (Qualifier: Variable Rate)
Features & Benefits
- 100% Load tested
- Easy to install
- Provides like-new steering
- Designed to lower stresses for longer service life
- Worn or sagging coil springs can cause premature tire wear due to vehicle misalignment
Moog Rear Coil Springs OE comparable -MOOG COIL SPRINGS, SOLD AS PAIR -- Variable Rate Springs, Made From Heat-Treated Alloy Steel For A Full Coil Rebound And Sagging Resistance, Change Resistance When Compressing, Become Progressively Stiffer As Its Load Increases, Use A Premium Urethane Tube That Lasts Much Longer, Vinyl-Coated For Corrosion Resistance And Extended Service LifeRear
MOOG CC719 Specifications
Product Attributes
| Wire Diameter | 0.56 IN |
| Wire Diameter | 14.30 MM |
| Spring Color | Black |
| Front Spring Outside Diameter | 5.780 IN |
| Front Spring Relaxed Length | 14.19 IN |
| Front Spring Relaxed Length | 360.40 MM |
| Front Spring Compressed Length | 12.00 IN |
| Front Spring Compressed Length | 304.80 MM |
| Rear Spring Relaxed Length | 14.19 IN |
| Rear Spring Relaxed Length | 360.40 MM |
| Rear Spring Compressed Length | 12.00 IN |
| Rear Spring Compressed Length | 304.80 MM |
| Rear Spring Outside Diameter | 5.780 IN |
| Bar Diameter (in.) | 0.56 |
| Bar Diameter (mm) | 14.3 |
| End Type 1 | Squared |
| End Type 2 | Squared |
| Free Height (in.) | 14.19 |
| Free Height (mm) | 360.4 |
| ID (in.) | 4.66 |
| ID (MM) | 118.4 |
| Installation Height (in.) | 12 |
| Installation Height (mm) | 304.8 |
| Load (lbs) | 287 |
| Spring Rate (lbs Per in.) | 135 |
| Spring Type | Variable Rate |
| Bar Diameter - Inches | 0.56 |
| Bar Diameter - MM | 14.30 |
| End 1 Type | Squared |
| End 2 Type | Squared |
| Free Height - Inches | 14.19 |
| Free Height - MM | 360.40 |
| ID - Inches | 4.66 |
| ID - MM | 118.40 |
| Installation Height - Inches | 12.00 |
| Installation Height - MM | 304.80 |
| Load - lbs | 287.00 |
| Part Description | Coil Spring Set |
| Spring Rate - lbs per inch | 135.00 |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 8708806590 |
| Harmonized Tariff Code (HTS) | 8708806590 |
| Remanufactured Part | N |
| Refurbished Part | N |
| UPC | 00080066416816 |
| VMRS Code | 016002002 |
| UNSPSC | 31161903 |
MOOG CC719 Cross References
MOOG CC719 Fits Vehicles
- Chrysler Intrepid (1993-1997)
- Eagle Vision (1993-1997)
- Dodge Intrepid (1993-1997)
- Chrysler New Yorker (1994-1996)
- Chrysler LHS (1994-1997)
- Chrysler Concorde (1993-1997)
MOOG CC719 Customer Reviews
No reviews yet
Be the first to review this product!
MOOG CC719 Manufacturer Information
For over 100 years, Moog® has been an industry leader in mid- to high-end aftermarket parts for steering, suspension, and driveline systems worldwide. Utilized by daily commuters to entire fleets, Moog parts have become synonymous with reliable performance that’s just as good or even better than their OE counterparts. Moog also incorporates innovative features in their products not found in competing products, such as patented forged steel bodies and metal “gusher” bearings that greatly reduce friction across moving components. The brand also leads the way in after-sales support, with comprehensive technical assistance and training materials available for customers around the world.
