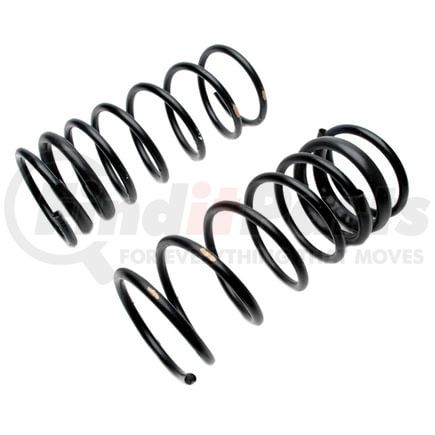

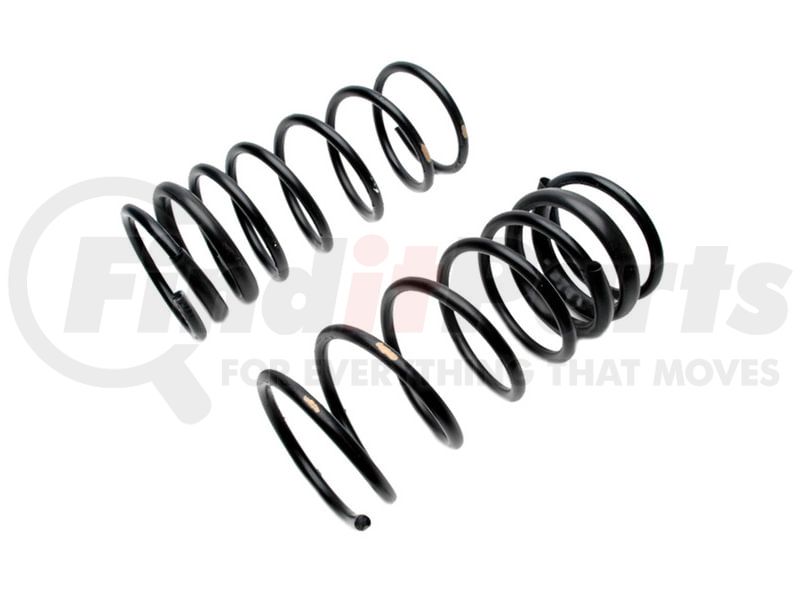

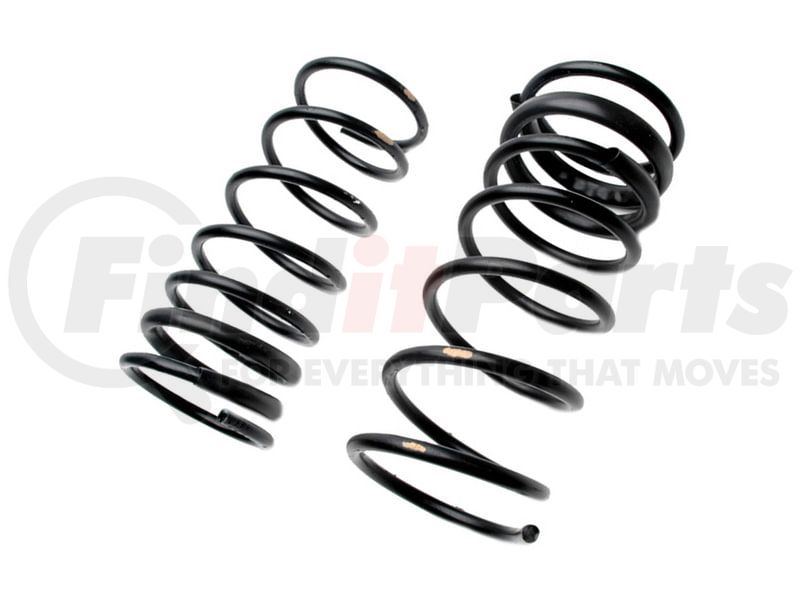

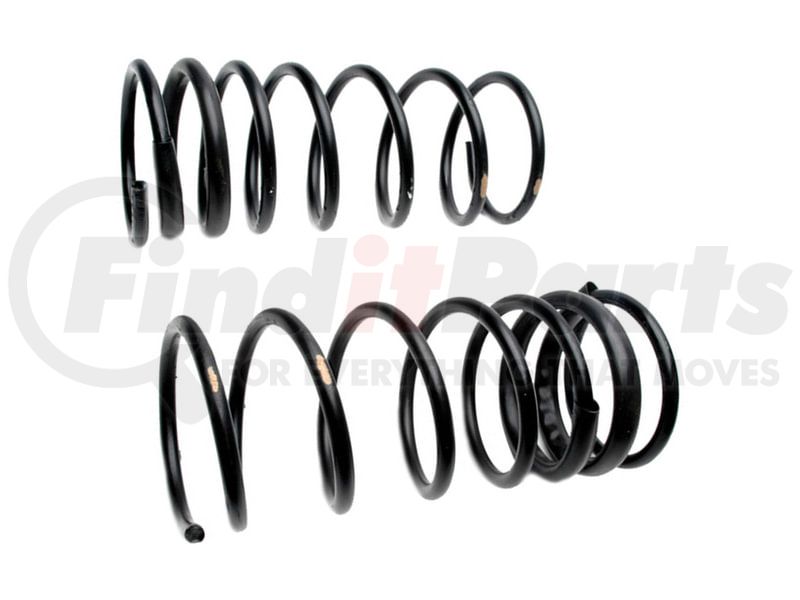

(888) 312-8812 Login SignupMOOG CC254 Coil Spring Set
Tap to view 3 more
No Stock Available
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
MOOG CC254 Part Description
Moog Front Coil Springs OE comparable -MOOG COIL SPRINGS, SOLD AS PAIR -- Variable Rate Springs, Made From Heat-Treated Alloy Steel For A Full Coil Rebound And Sagging Resistance, Change Resistance When Compressing, Become Progressively Stiffer As Its Load Increases, Use A Premium Urethane Tube That Lasts Much Longer, Vinyl-Coated For Corrosion Resistance And Extended Service LifeFront
MOOG CC254 Specifications
Product Attributes
| Wire Diameter | 0.53 IN |
| Wire Diameter | 13.50 MM |
| Spring Color | Black |
| Front Spring Outside Diameter | 6.020 IN |
| Front Spring Relaxed Length | 14.59 IN |
| Front Spring Relaxed Length | 370.60 MM |
| Front Spring Compressed Length | 12.00 IN |
| Front Spring Compressed Length | 304.80 MM |
| Rear Spring Relaxed Length | 14.59 IN |
| Rear Spring Relaxed Length | 370.60 MM |
| Rear Spring Compressed Length | 12.00 IN |
| Rear Spring Compressed Length | 304.80 MM |
| Rear Spring Outside Diameter | 6.020 IN |
| Bar Diameter (in.) | 0.53 |
| Bar Diameter (mm) | 13.5 |
| End Type 1 | Squared |
| End Type 2 | Tangential |
| Free Height (in.) | 14.59 |
| Free Height (mm) | 370.6 |
| ID (in.) | 4.96 |
| ID (MM) | 126 |
| Installation Height (in.) | 12 |
| Installation Height (mm) | 304.8 |
| Load (lbs) | 265 |
| Spring Rate (lbs Per in.) | 105 |
| Spring Type | Variable Rate |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 8708806590 |
| Harmonized Tariff Code (HTS) | 8708806590 |
| Remanufactured Part | N |
| UPC | 00080066408415 |
MOOG CC254 Cross References
| Brand | Part Number |
|---|---|
| 080066408415 | |
| ACDelco | 45H1096 |
| Centric Parts | 630.44056 |
| DORMAN | 566-277 |
| Duralast | FCS254V |
| General Motors | 481311E720 , 481311E720 |
| Mcquay-Norris | FCS254V |
| Mevotech | SMS254V |
| NAPA | 277-5332 |
| Perfect Circle | 277-5324, 277-5332 |
| Raybestos Brakes | 587-1096 |
| TRW | CC254 |
| TRW Steering and Suspension Parts | CC254 |
| Toyota | 48131-1E720 |
MOOG CC254 Fits Vehicles
- Toyota Corolla (1988-1992)
- Geo Prizm (1989-1992)
MOOG CC254 Customer Reviews
No reviews yet
Be the first to review this product!
MOOG CC254 Manufacturer Information
For over 100 years, Moog® has been an industry leader in mid- to high-end aftermarket parts for steering, suspension, and driveline systems worldwide. Utilized by daily commuters to entire fleets, Moog parts have become synonymous with reliable performance that’s just as good or even better than their OE counterparts. Moog also incorporates innovative features in their products not found in competing products, such as patented forged steel bodies and metal “gusher” bearings that greatly reduce friction across moving components. The brand also leads the way in after-sales support, with comprehensive technical assistance and training materials available for customers around the world.
