MOOG part description

Moog Front Coil Springs OE comparable -Coil Spring , Front, High Quality Original Equipment Replacement, Sold In PairsFront

Product Description

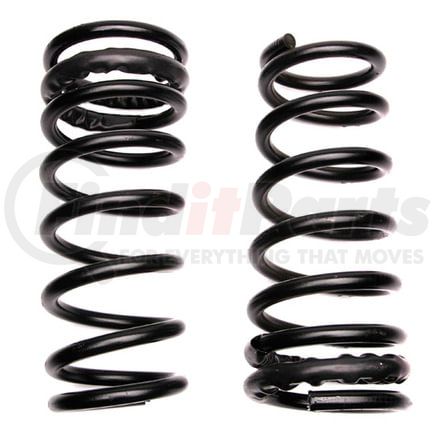

Coil Spring Set

Features & Benefits

  • 100% Load tested
  • Easy to install
  • Provides like-new steering
  • Designed to lower stresses for longer service life
  • Worn or sagging coil springs can cause premature tire wear due to vehicle misalignment

Product Attributes

Bar Diameter - Inches 0.84
Bar Diameter - MM 21.40
End 1 Type Squared
End 2 Type Tangential
Free Height - Inches 18.09
Free Height - MM 459.50
Front Spring Compressed Length 14.00 IN
Front Spring Compressed Length 355.60 MM
Front Spring Relaxed Length 18.09 IN
Front Spring Relaxed Length 459.50 MM
Installation Height - Inches 14.00
Installation Height - MM 355.60
Load - lbs 1670.00
Part Description Coil Spring Set
Rear Spring Compressed Length 14.00 IN
Rear Spring Compressed Length 355.60 MM
Rear Spring Relaxed Length 18.09 IN
Rear Spring Relaxed Length 459.50 MM
Spring Color Black
Spring Rate - lbs per inch 423.00
Spring Type Variable Rate
Wire Diameter 0.84 IN
Wire Diameter 21.40 MM

Additional Information

Country of Origin (Primary) US
Canadian Harmonizing Tariff Code 7320200020
Harmonized Tariff Code (Schedule B) 7320201000
Harmonized Tariff Code (HTS) 7320201000
UPC 00080066441696
VMRS Code 016002002
UNSPSC 31161903

Part Interchanges

MOOG CC1712 Cross Reference

We have 1 alternatives for the CC1712 by MOOG:

Fits Vehicles

  • Dodge Ram 3500 (1995-2002)
  • Dodge Ram 2500 (1995-2002)

For over 100 years, Moog® has been an industry leader in mid- to high-end aftermarket parts for steering, suspension, and driveline systems worldwide. Utilized by daily commuters to entire fleets, Moog parts have become synonymous with reliable performance that’s just as good or even better than their OE counterparts. Moog also incorporates innovative features in their products not found in competing products, such as patented forged steel bodies and metal “gusher” bearings that greatly reduce friction across moving components. The brand also leads the way in after-sales support, with comprehensive technical assistance and training materials available for customers around the world.
