(888) 312-8812 Login SignupMOOG CC1708 MOOG CC1708 Coil Spring Set
Tap to view 3 more
No Stock Available
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
MOOG CC1708 Part Description
Manufacturer
Product Description

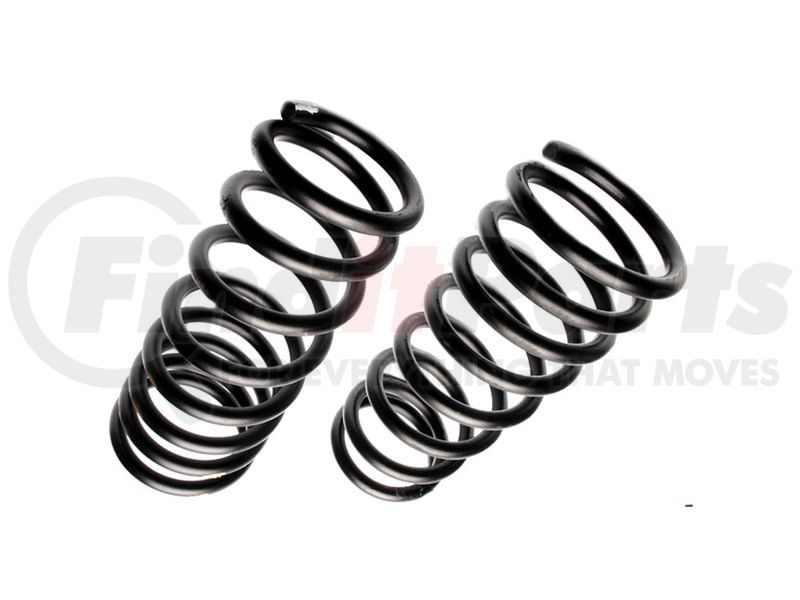

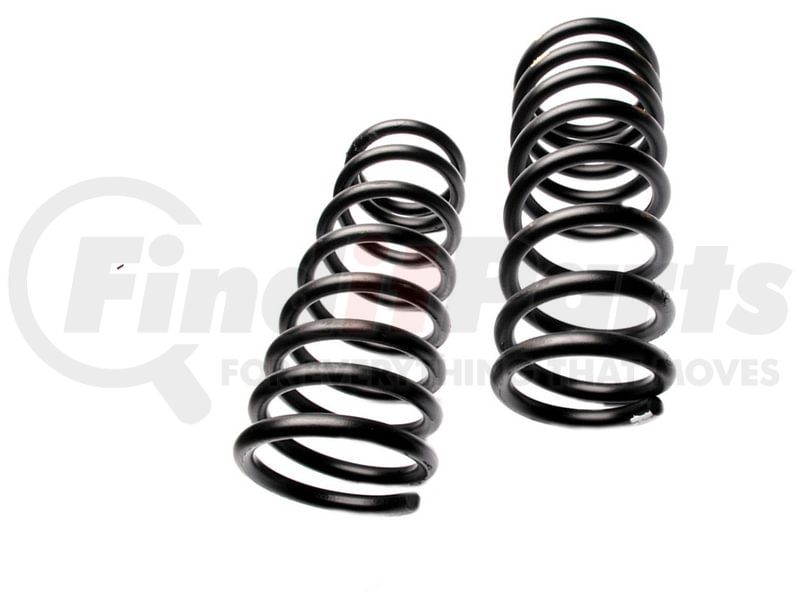

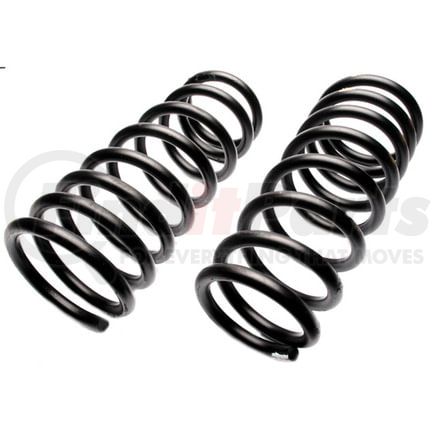

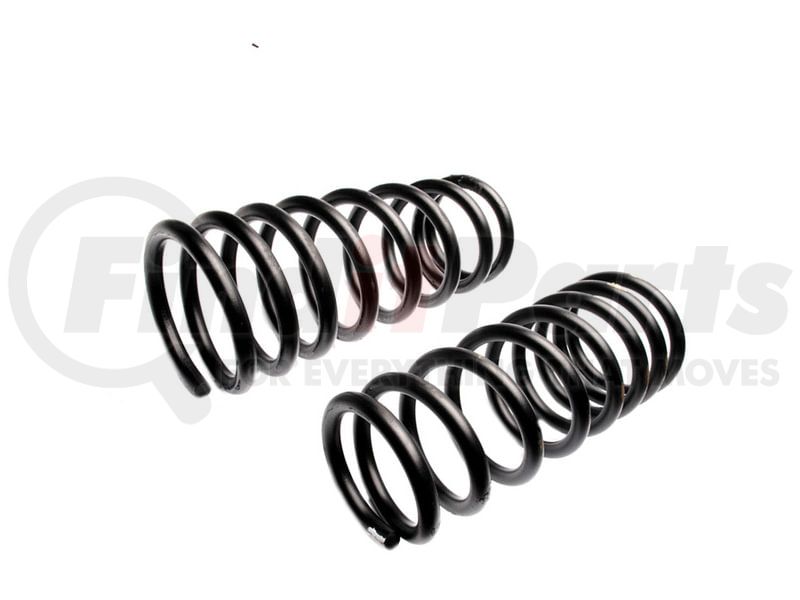

Coil Spring Set
Application Summary
1996-2002 Dodge Ram 2500 (Front) (Doors: 2, 4 & Body: Extended Cab Pickup & Liter: 5.9 & Wheel Base: 139.0, 138.7 & Drive: 4WD / Qualifier: with 8,800 (lb) Gross Vehicle Weight (GVW), Variable Rate)
Features & Benefits
- 100% Load tested
- Easy to install
- Provides like-new steering
- Designed to lower stresses for longer service life
- Worn or sagging coil springs can cause premature tire wear due to vehicle misalignment
MOOG® coil spring sets restore proper handling, reduce body sway and bring ride height to OE specifications.
MOOG® Problem Solver® products incorporate proven design and engineering features for like new steering, ease of installation and longer life. MOOG is the preferred steering and suspension brand of professional technicians and NASCAR Crew Chiefs.
- MOOG® Problem Solver® products incorporate proven design and engineering features for like new steering, ease of installation and longer life. MOOG is the preferred steering and suspension brand of professional technicians and NASCAR Crew Chiefs.
- Variable rate coil springs maintain proper chassis ride height and smooth ride
- Ideal for family transportation, work trucks and sales fleet vehicles
- Powder-coated to protect against corrosion
- Worn or sagging coil springs can cause premature tire wear due to vehicle misalignment
Part Specifications
COIL SPRING ATTRIBUTES
| Bar Diameter - Inches | 0.81 |
| Bar Diameter - MM | 20.60 |
| Spring Rate - lbs per inch | 321 |
| Load - lbs | 639 |
| Installation Height - Inches | 16 |
| Installation Height - MM | 406.40 |
| Free Height - Inches | 18 |
| Free Height - MM | 457.20 |
| End Type 1 | Squared |
| End Type 2 | Squared |
| Spring Type | Variable Rate |
MOOG CC1708 Specifications
Product Attributes
| Wire Diameter | 0.81 IN |
| Wire Diameter | 20.60 MM |
| Spring Color | Black |
| Front Spring Relaxed Length | 18.00 IN |
| Front Spring Relaxed Length | 457.20 MM |
| Front Spring Compressed Length | 16.00 IN |
| Front Spring Compressed Length | 406.40 MM |
| Rear Spring Relaxed Length | 18.00 IN |
| Rear Spring Relaxed Length | 457.20 MM |
| Rear Spring Compressed Length | 16.00 IN |
| Rear Spring Compressed Length | 406.40 MM |
| Bar Diameter (in.) | 0.81 |
| Bar Diameter (mm) | 20.6 |
| End Type 1 | Squared |
| End Type 2 | Squared |
| Free Height (in.) | 18 |
| Free Height (mm) | 457.2 |
| Installation Height (in.) | 16 |
| Installation Height (mm) | 406.4 |
| Load (lbs) | 639 |
| Spring Rate (lbs Per in.) | 321 |
| Spring Type | Variable Rate |
| Bar Diameter - Inches | 0.81 |
| Bar Diameter - MM | 20.60 |
| End 1 Type | Squared |
| End 2 Type | Squared |
| Free Height - Inches | 18.00 |
| Free Height - MM | 457.20 |
| Installation Height - Inches | 16.00 |
| Installation Height - MM | 406.40 |
| Load - lbs | 639.00 |
| Part Description | Coil Spring Set |
| Spring Rate - lbs per inch | 321.00 |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 8708806590 |
| Harmonized Tariff Code (HTS) | 8708806590 |
| Remanufactured Part | N |
| Refurbished Part | N |
| UPC | 00080066537696 |
| VMRS Code | 016002002 |
| UNSPSC | 31161903 |
MOOG CC1708 Cross References
| Brand | Part Number |
|---|---|
| 080066537696 | |
| ACDelco | 45H1133 |
| Centric Parts | 630.67027 |
| Chrysler | 52039036 |
| Duralast | CC1708 |
| Duralast Gold | DG5871133 |
| Mcquay-Norris | FCS1708V |
| Mevotech | SMS1708V |
| Mevotech Supreme | SMS1708V |
| NAPA | 277-5412 |
| NAPA Chassis Parts | 277-5412 |
| Pontotoc | U1708CV |
| Raybestos Brakes | 587-1133 |
| TRW | CC1708 |
| TRW Steering and Suspension Parts | CC1708 |
MOOG CC1708 Fits Vehicles
- Dodge Ram 2500 (1996-2002)
