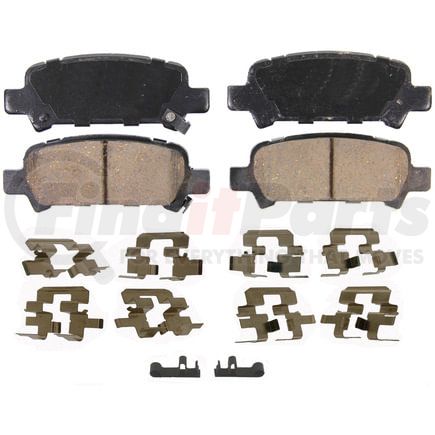

(888) 312-8812 Login SignupWAGNER ZD770 QuickStop Ceramic Disc Brake Pad Set
Tap to view 1 more
MSRP: $63.33
$3999
Save $23.34
Limited availability at this price!
In Stock
Get it by Friday, Jun 26
WAGNER ZD770 Part Description
Manufacturer
Features & Benefits
- RESTORES LIKE-NEW BRAKING PERFORMANCE -- OE fit and form design delivers consistent, even braking throughout the life of the brake pad
- REDUCED VIBRATION -- Application-specific design reduces noise-causing vibration
- VEHICLE-SPECIFIC MATERIALS -- Formulated to meet the unique needs of each vehicle application
- HARDWARE INCLUDED -- Premium stainless-steel hardware included in most applications
- COMPREHENSIVE COVERAGE -- Brake pads available for all vehicle types
- ZERO COPPER FORMULATION -- Features Wagner OE25™ zero-copper friction formulation
- QUIETER OPERATION -- Up to four-layer shim (application specific) helps dampen vibration and reduce squeal for smoother, quieter braking performance
- PAD LIFE MONITORING -- Application-specific brake wear sensor detects pad wear and provides a timely alert to support proactive maintenance and preserve braking performance
- BUILT TO STAY PUT -- Thermoset adhesive secures the friction material to the backplate, maintaining bond integrity through heat, pressure and repeated stops
- CORROSION PROTECTION -- Powder-coated backplate helps resist rust and extend product life
- LAB-TESTED PERFORMANCE -- Validated on a dynamometer using SAE J2521 (noise), SAE J2522 (effectiveness) and Los Angeles City Traffic protocols to ensure quiet operation, consistent stopping power and pad life
- PERFECT PAIRING -- Pair Wagner® Standard brake pads with Wagner rotors and calipers (sold separately) for optimal performance
- PERFECT PAIRING -- Pair Wagner(R) Standard brake pads with Wagner rotors and calipers (sold separately) for optimal performance
Rely on the Wagner® Brake QuickStop® disc brake pad set to restore like-new braking performance to your vehicle.
Wagner® QuickStop® ceramic brake pads are designed, tested and certified to ensure a vehicle's braking system will be restored to original equipment performance.
- Optimal stopping performance
- Application-specific design reduces noise-causing vibration
- 100% OE-post cured for consistent braking throughout the life of the pad
- Includes OE-style lubricant
- Low copper 2021 compliant ceramic formulation
- Install Wagner with total confidence
Part Specifications
BRAKE PADS
| Pad FMSI Number | 7637-D770 |
| Abutement Hardware Included | Yes |
| Friction Thickness Inner Pad (Inch) | 0.543 |
| Friction Thickness Outer Pad (Inch) | 0.543 |
| Front or Rear Pads | Rear |
| OEM Replacement | Yes |
| Package Quantity | 4 |
| Pad Material | Ceramic |
| Shims Included | Yes |
| Wear Sensors Included | Mechanical |
| Performance | No |
WAGNER ZD770 Specifications
Product Attributes
| Friction Material Composition | Ceramic |
| FMSI Number | 7637-D770 |
| Abutment Clips Included | Yes |
| Pad Shims Included | Yes |
| Chamfered Edges | Yes |
| Slotted | Yes |
| Inner Pad Friction Material Thickness | 0.543 IN |
| Outer Pad Friction Material Thickness | 0.543 IN |
| Pad Wear Sensor Included | Yes |
| Pad Wear Sensor Type | Mechanical |
| Part Description | Disc Brake Pad Set |
| FMSI Lining | 7637 |
| Fmsi Steel | D770 |
Additional Information
| MSDS Sheet Number | 5008 |
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 8708305020 |
| Harmonized Tariff Code (HTS) | 8708305020 |
| UPC | 00008536672036 |
| VMRS Code | 013000000 |
| UNSPSC | 25171713 |
WAGNER ZD770 Cross References
| Brand | Part Number |
|---|---|
| Auto Extra | AXMD770, AXCD770 |
| BRAKE PRO | BKP770CH |
| Bendix | SBC770, SCD770, MRD770, D770CT |
| Bosch | BC770, BE770, BE770H |
| BrakeBest Select Brake Pads | SM770 |
| CENTRIC | 301.07700 |
| Carquest Premium Gold | GNAD770 |
| Carquest Professional Platinum Brake Pads | PXD770H |
| Carquest Standard Brake Pads | NAD770 |
| Centric Parts | 301.07700, 102.07700, 103.07700, 105.07700, 106.07700, 305.07700, 308.07700, 309.07700, 319.07700, 106.07701 |
| Detroit Axle | P770 |
| Duralast | DG770, MKD770 |
| Dynamic Friction Company | 1551-0770-03, 1115-0770-03, 4000-0770-03, 1115-0770-00, 1551-0770-00, 4000-0770-00, 1551-0770-01, 1902-0770-00, 4000-0770-01, 1115-0770-01, 1311-0770-03, 1310-0770-00, 1311-0770-01, 1310-0770-03, 1310-0770-01 |
| MAGMA PRODUCTS | PMD770C |
| Monroe Shocks & Struts | CX770, DX770, FX770, GX770 |
| NAPA BRAKES | SG7637X, SG7637M, PF7637X, SS7637M, UP7637X, PF7637M, SR770, SS7637X |
| PRONTO | BP770MS |
| PowerStop | 16770, 17770, Z26770, Z23770 |
| Promax | PRM21-770 |
| RAYBESTOS | SGD770C |
| Raybestos Brakes | PGD770M, MGD770CH, EHT770H |
| Subaru | 26292AE020, 26292AE0218A, 26296FC002, 26692AE040, 26692AE0418A, 26696-AE040, 26696-AE060, 26696AE020, 26696AE040, 26696AE060, 26696FC000, 26696FC001, 26696FC002 |
| VORTEX | VXD770CH |
| Worldparts Synergy | WSD770CH |
WAGNER ZD770 Fits Vehicles
- Subaru Outback (2000-2004)
- Subaru Legacy (2000-2009)
- Subaru Impreza (1999-2003)
- Subaru Baja (2003-2006)
- Subaru Forester (1998-2003)
