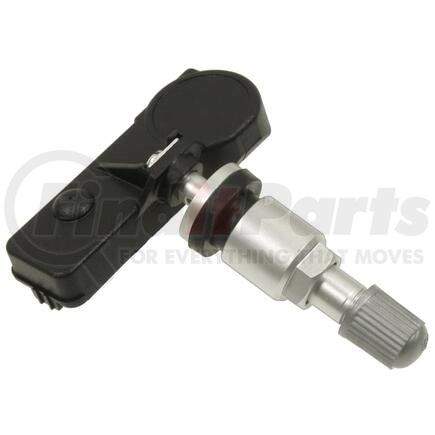

STANDARD IGNITION TPM45A - Tire Pressure Monitoring System OE Design Sensor

Product Description

Tire Pressure Monitoring System OE Design Sensor

Features & Benefits

• Pre-programmed at the factory with exact OE protocol, so it's ready to be installed and OE-relearned out of the box
• Designed and manufactured to meet or exceed OE performance in compliance with all SAE2657 specifications
• Undergoes extensive testing-including operational temperature, thermal shock, extreme temperature, humidity, frost, proof pressure, rapid deflation, contamination, salt fog, drop, centrifugal force vehicle speed, mechanical vibration tests-to ensure durab
• Validated at independent lab during 168-hour on-vehicle live test
• Military-grade lithium battery ensures maximum battery life and sensor performance
• Low-power wakeup timer and periodic reset driven by Low-Frequency Output (LFO) maximizes shelf life, extends battery life, and maintains optimum performance levels
• Z-axis or duel XY-axis accelerometers on IC chip ensure more precise readings on tire positions and rotational direction
• External-crystal oscillator provides frequency stability and more accurate frequency ranges, ensuring more reliable communications between sensors and vehicle receivers
• Fully assembled with nickel-plated valve core and aircraft-grade 6061 aluminum clamp-in valve stem to prevent premature breaking and resist galvanic corrosion
• Unique ID Cloning functionality allows you to clone/copy unique ID from one sensor to another

• Echlin 92-1021C
• ACDelco 15922396
• ACDelco 25799331
• ACDelco 25920615
• CARQUEST 20153
• BWD TPM45A
• Duralast SU11143
• Duralast SU11147
• Duralast SU1147
• General Motors 15123145
• General Motors 15254101
• General Motors 19118652
• General Motors 20923680
• General Motors 22853741
• General Motors 22854866
• General Motors 25799331
• General Motors 25920615
• Saturn 25952370
• Dill Air Control 9153
• Airtex 5S9688
• Airtex 5S9692
• Dorman 974-009
• Airaware 20116
• Airaware 20153
• DENSO 550-2405
• CARQUEST Premium By WELLS 72-2669
• CARQUEST Premium By WELLS 72-2671
• CARQUEST Premium By WELLS 72-2750
• CARQUEST Premium By WELLS 72-2754
• NAPA Solutions 974-009
• NAPA Solutions 974009
• 13540600

Fits Vehicles

• Chevrolet Suburban (2014)
• Chevrolet Silverado 1500 HD Classic (2007)
• Chevrolet Silverado 1500 Classic (2007)
• GMC Sierra 1500 HD Classic (2007)
• GMC Sierra 3500 Classic (2007)
• Cadillac XTS (2015)
• Chevrolet Impala Limited (2014)
• Cadillac ELR (2014-2015)
• Buick Encore (2013-2015)
• Cadillac Escalade EXT (2007-2013)
• Chevrolet Volt (2014-2015)
• Cadillac Escalade ESV (2007-2014)
• Buick Verano (2014-2015)
• Chevrolet Trax (2013-2015)
• Chevrolet SS (2014)
• Chevrolet Caprice (2011-2013)
• Chevrolet Silverado 2500 (2007-2009, 2011-2015)
• Buick Regal (2013-2015)
• GMC Savana 4500 (2009-2015)
• Pontiac G3 Wave (2009)
• Chevrolet Orlando (2012-2014)
• Chevrolet Express 4500 (2009-2015)
• Chevrolet Captiva Sport (2008-2015)
• Chevrolet Corvette (2010-2013)
• GMC Sierra (2007-2010)
• Chevrolet Silverado 2500 HD (2007-2014)
• Pontiac G3 (2008-2010)
• Suzuki XL-7 (2007-2009)
• Pontiac Montana (2008-2009)
• Chevrolet Traverse (2009-2015)
• GMC Savana 2500 (2008-2019)
• Hummer H2 (2007-2009)
• Cadillac STS (2009-2011)
• Chevrolet Aveo5 (2007-2011)
• GMC Yukon XL 1500 (2007-2014)
• Pontiac G5 (2008-2010)
• Chevrolet Uplander (2008-2009)
• Saturn Sky (2008-2010)
• Chevrolet HHR (2008-2011)
• Suzuki Reno (2007-2008)
• GMC Sierra 3500 HD (2008-2014)
• Pontiac Solstice (2008-2009)
• GMC Savana 3500 (2008-2019)
• GMC W3500 Forward (2007-2008)
• Cadillac CTS (2008-2014)
• Buick Enclave (2008-2015)
• Pontiac Wave (2007-2008)
• Pontiac G8 (2008-2009)
• Pontiac G6 (2008-2010)
• GMC Savana 1500 (2008-2014)
• Chevrolet Optra (2007)
• Chevrolet Suburban 2500 (2007-2013)
• Pontiac Torrent (2007-2009)
• Chevrolet Malibu (2008-2016)
• Chevrolet Cobalt (2008-2010)
• Saturn Vue (2007-2010)
• Cadillac SRX (2007-2009, 2014-2015)
• Chevrolet Silverado 3500 HD (2007-2014)
• Saturn Outlook (2007-2010)
• GMC Acadia (2007-2014)
• Buick Allure (2007-2008)
• Saturn Aura (2007-2009)
• Suzuki Forenza (2007-2008)
• Pontiac Grand Prix (2007-2008)
• Chevrolet Equinox (2007-2009)
• Chevrolet Express 3500 (2007-2020)
• Chevrolet Express 2500 (2007-2020)
• Chevrolet Express 1500 (2007-2014)
• Chevrolet Silverado 3500 (2007-2009, 2011-2013, 2015)
• Chevrolet Silverado 1500 (2007-2015)
• Cadillac DTS (2006-2011)
• Buick Lucerne (2007-2011)
• GMC Sierra 1500 (2007-2013)
• Chevrolet Tahoe (2007-2013)
• Cadillac Escalade (2007-2015)
• GMC Sierra 2500 HD (2007-2014)
• Chevrolet Suburban 1500 (2007-2014)
• Chevrolet Avalanche (2007-2013)
• GMC Yukon (2007-2014)
• GMC Yukon XL 2500 (2007-2013)
• Chevrolet Monte Carlo (2006-2007)
• Buick LaCrosse (2006-2009)
• Chevrolet Impala (2006-2015)
• Chevrolet Aveo (2004-2011, 2018)
