STANDARD IGNITION part description

Product Description

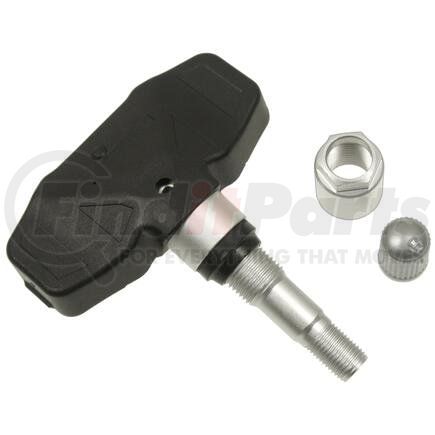

Tire Pressure Monitoring System OE Design Sensor

Features & Benefits

  • Pre-programmed at the factory with exact OE protocol, so it's ready to be installed and OE-relearned out of the box
  • Designed and manufactured to meet or exceed OE performance in compliance with all SAE2657 specifications
  • Undergoes extensive testing-including operational temperature, thermal shock, extreme temperature, humidity, frost, proof pressure, rapid deflation, contamination, salt fog, drop, centrifugal force vehicle speed, mechanical vibration tests-to ensure durab
  • Validated at independent lab during 168-hour on-vehicle live test
  • Military-grade lithium battery ensures maximum battery life and sensor performance
  • Low-power wakeup timer and periodic reset driven by Low-Frequency Output (LFO) maximizes shelf life, extends battery life, and maintains optimum performance levels
  • Z-axis or duel XY-axis accelerometers on IC chip ensure more precise readings on tire positions and rotational direction
  • External-crystal oscillator provides frequency stability and more accurate frequency ranges, ensuring more reliable communications between sensors and vehicle receivers
  • Fully assembled with nickel-plated valve core and aircraft-grade 6061 aluminum clamp-in valve stem to prevent premature breaking and resist galvanic corrosion
  • Unique ID Cloning functionality allows you to clone/copy unique ID from one sensor to another

Product Attributes

Connector Type Bolt On
Frequency 315 MHZ
Mounting Location Wheel
Mounting Method Clamp In
Sensor Nut Torque (in/lbs) 62

Additional Information

Country of Origin (Primary) TW
Harmonized Tariff Code (HTS) 9026204000
Warranty Distance 36000
Warranty Distance UOM MI
Warranty Time 36
Warranty Time UOM MO
UPC 00025623580012

Part Interchanges

Fits Vehicles

  • GMC Envoy XL (2005-2006)
  • GMC Envoy XUV (2005)
  • Chevrolet Trailblazer EXT (2006)
  • Isuzu Ascender (2006-2008)
  • Saab 9-7x (2005-2009)
  • Buick Rainier (2006-2007)
  • Chevrolet SSR (2006)
  • GMC Envoy (2005-2009)
  • Cadillac CTS (2004-2007)
  • Cadillac SRX (2004-2006)
  • Chevrolet Trailblazer (2002-2009)
