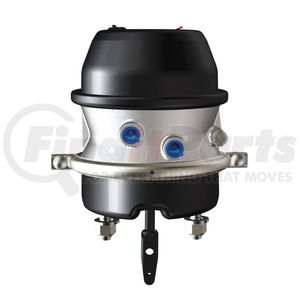

(888) 312-8812 Login SignupMGM BRAKES 3831651 Air Brake Spring Brake - Transit, 3/4 Inch x 18 Inch Push-Rod
$28499
21 Day Lead Time
Due to limited availability, we will confirm your order and notify you within 1 business day.
MGM BRAKES 3831651 Part Description
Manufacturer
General Description
Line Haul
Features and Benefits
- Tamper Resistant Design
- Molded Nitrile Rubber Push-Rod Air Seal
- Center Hole Shield
- Six (6) Year Limited Warranty
- Integral Release Bolt
- 360 Aluminum Alloy
- Low Friction Piston & Guide
- Epoxy Coated Return Spring
- Heavy-Duty "Long Life" Power Spring 100 lb (45.4 kg) additional parking brake force @ 1.25" (31.8 mm) of stroke
- Heavy-Duty Steel Non-Pressure Chamber (8 Gauge Standard on Type 3030 Aftermarket Models)
- Stroke alert
- Polymer Push-Rod Guides
- Heavy-Duty Nylon Reinforced Diaphragms
- Heavy-Duty Nylon Reinforced Neoprene Diaphragms (Optional)
- External Breather Tube
Technical Specifications
| Stroke | 2.50" (63.5 mm) |
| Weight lb (kg) Combination | 19.9 lb (9.0 kg) |
| Weight lb (kg) Single | 11.7 lb (5.3 kg) |
| A | 11.86" (301.2 mm) |
| B | 9.46" (240.3 mm) |
| C | 8.27" (210.1 mm) |
| D | 8.18" (207.8 mm) |
| E | 4.75" (120.7 mm) |
| F | 5/8" - 11 UNC (M16 x 1.5 - 6g) |
| G | 5/8" - 18 UNF (M16 x 1.5 - 6g) |
| Inlets | 3/8" - 18 NPTF (M16 x 1.5 - 6H) |
| X - Min. (aftermarket unit only) | 18.00" |
