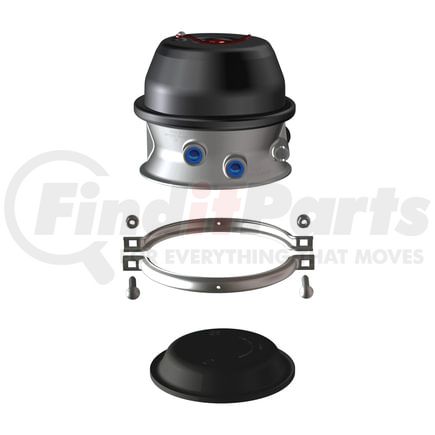

Name: MGM Brakes 3420008 Air Brake Spring Brake - 3420 Series, Piggyback Plus Kit, Model TR2024
SKU: 3420008
Price: 162.49 USD
Availability: InStock

MGM BRAKES part description

Specifications

Aftermarket Unit
Port Size: 3/8-18 NPTF
Stroke (in.): 2.25

Service Size: 20
Spring Size: 24

Features & Benefits

Tamper Resistant Design
Externally Stored Release Bolt
Epoxy-Coated Head
360 Aluminum Center Case
"Long Life" Power Spring
Weatherseal Plug
Heavy-Duty Nylon Reinforced Diaphragm
Heavy-Duty Nylon Reinforced Neoprene Diaphragm (Optional)
External Breather Tube
Composite Guide -Corrosion Fighter Technology, Type 30 Spring Side Models Only

Model: TR2024

Technical Data

Stroke	2.25" (57.2 mm)
Weight lb (kg) Single	9.6 lb (4.4 kg)
B	6.16" (156.5 mm)
C	6.90" (175.3 mm)
D	7.34" (186.4 mm)
Inlets	3/8" - 18 NPTF

Replacement Parts

1	Kit -NP Chamber	N/A
2	Kit -Nuts & Bolts	9003001
3	Clamp Band Assembly	8216020
4	Diaphragm	8017120
5	Kit -Push-Rod Assembly SAE	N/A
5a	Kit -Push-Rod Assembly METRIC	N/A
6	Return Spring	N/A
7	Kit -Center Hole Shield	N/A
8	NP Chamber Assembly	N/A
9	Kit -Nuts & Washers SAE	N/A
9a	Kit -Nuts & Washers METRIC	N/A
10	Hex Nut -Yoke SAE	N/A
10a	Hex Nut -Yoke METRIC	N/A
11	Kit -Weatherseal Plug	9019005
12	Kit -Release Bolt	9007003

Product Description

Piggyback Plus Kit

Features & Benefits

Tamper Resistant
Externally Stored Release Bolt
Epoxy-Coated Head
360 Aluminum Center Case
Long Life Power Spring
Weatherseal Plug
Heavy-Duty Nylon Reinforced Diaphragm (Neoprene Optional)
Breather Tube
Composite Guide

Product Attributes

Chamber Type	Piggyback Plus Kit
Diaphragm Diameter	Rubber IN
Mounting Bolt Length	N/A IN
Mounting Bolt Thread	N/A
Port Size	3/8-18 NPTF
Spring Size	24
Service Size	20
Stroke	2.25 IN
UNIT	Aftermarket
