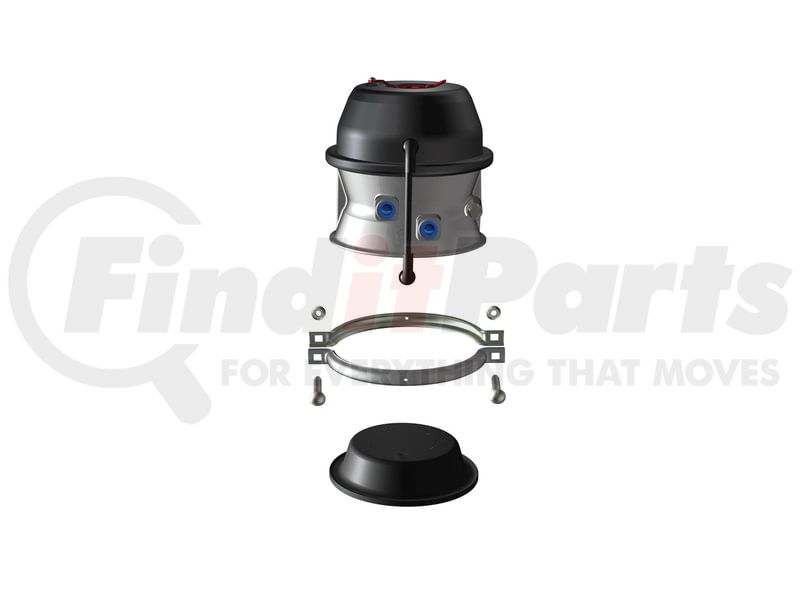

(888) 312-8812 Login SignupMGM BRAKES 3227008 Air Brake Spring Brake - 3227 Series, Piggyback Plus Kit, Model TR2430LP3THD
$17249
21 Day Lead Time
Due to limited availability, we will confirm your order and notify you within 1 business day.
MGM BRAKES 3227008 Part Description
Manufacturer
Product Description
Piggyback Plus Kit
Features & Benefits
- Tamper Resistant
- Long Life Power Spring
- Center Hole Diaphragm & Shield
- Epoxy-Coated Head, NPC/Lower Push-Rod, Return Spring
- HD NPC
- Polymer Guide
- HD Reinforced Diaphragm (or Neoprene)
- Stroke Alert
- Molded Rubber Seal
- Composite Guide
General Description
Dry Bulk Chemicals
Features and Benefits
- Tamper Resistant Design
- Center Hole Diaphragm (U.S Patent No. 5,507,217)
- Epoxy-Coated Head
- Square Port Bosses (Long Stroke Identification)
- Weatherseal Plug
- Heavy-Duty Nylon Reinforced Diaphragm
- Heavy-Duty Nylon Reinforced Neoprene Diaphragm (Optional)
- Externally Stored Release Bolt
- 3" (76.2 mm) Long Stroke
- External Breather Tube
- Heavy Duty Power Spring 145 lb (65.8 ks) Of Additional Parking Bake Force @ 1.25 inches (31.8 mm) of Stroke
- Composite Guide -Corrosion Fighter Technology
Technical Specifications
| Stroke | 3.00" (76.2 mm) |
| Weight lb (kg) Single | 11.7 lb (5.3 kg) |
| B | 7.81" (198.4 mm) |
| C | 7.38" (187.5 mm) |
| D | 8.21" (208.5 mm) |
| Inlets | 3/8" - 18 NPTF (M16 x 1.5 - 6H) |
MGM BRAKES 3227008 Specifications
Product Attributes
| Breather Tube | Breather Tube |
| Chamber Type | Piggyback Plus Kit |
| Diaphragm Diameter | Rubber IN |
| Heavy Duty | Heavy Duty |
| Mounting Bolt Length | N/A IN |
| Mounting Bolt Thread | N/A |
| Port Size | 3/8-18 NPTF |
| Spring Size | 30 |
| Service Size | 24 |
| Stroke | 3.00 IN |
| UNIT | Aftermarket |
| Diaphragm | Rubber |
Additional Information
| Country of Origin (Primary) | US |
| 21 | |
| VMRS Code | 013004001 |
