NGK SPARK PLUGS part description

SPARK PLUG

Product Description

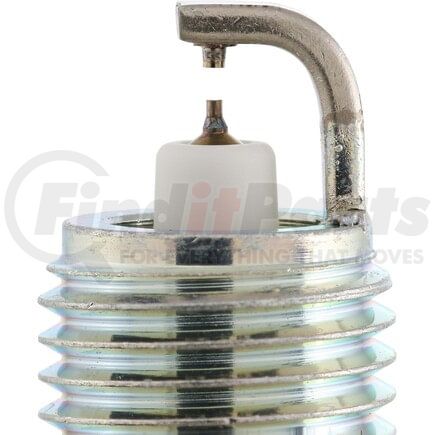

NGK Laser Iridium High Ignitability Spark Plug

Features & Benefits

  • ACTUAL OE or EQUIVALENT HIGH IGNITABILITY DESIGN: DFE tip and iridium alloy center electrode produce the most advanced OE spark plug technology
  • IRIDIUM ALLOY CENTER ELECTRODE: Iridium's density (6x that of platinum) and extremely high melting point is perfect for modern high efficiency engines
  • DFE DESIGN: Double fine electrode (platinum pin) provides more complete fuel burn, quicker throttle response, smoother idle and better cold starts
  • SOLID COPPER CORE: 98% pure copper core offers superior heat dissipation, conductivity and ultra wide heat ranges
  • TRIVALENT METAL PLATING: Delivers superior anti-corrosion and anti-seizing properties, ensuring ease of installation and removal
  • RECOMMENDED USAGE: Best for vehicles with OE DFE iridium alloy plugs

Product Attributes

Part Number DILKAR7B11
Stock Number 1406
Resistance 5000 82
Ground Electrode Tip Design Dual Fine Electrode - High Ignitability
Ground Configuration Standard
Ground Electrode Core Material Nickel
Electrical Terminal Type Non-Removable Nut
Center Electrode Core Material Copper
Center Electrode Tip Material Iridium
Pre-Gap Size .044 IN
Ground Electrode Quantity 1
Hex Size 14 MM
Insulator Height 50.00 MM
Manufacturer Heat Range 7
Seat Type Flat
Reach 26.5 MM
Thread Diameter 12.00 MM

Additional Information

Harmonized Tariff Code (HTS) 8511100000
Warranty Time UOM MO
Warranty Time 2
Country of Origin (Primary) JP
UPC 00087295114063
VMRS Code 033003005
UNSPSC 26101732

Part Interchanges

Headquartered in Wixom, Michigan, NGK® is a global leader in the design and manufacture of spark plugs for virtually every automotive and commercial vehicle application. It has grown immensely since its inception in 1936 with the expansion of its ignition product line and the introduction of its technical sensor and vehicle electronics line. NGK partners with OEMs and uses only the latest cutting tools to ensure each NGK product meets OE specifications for exact fit, form, and function. With world-class quality and engineering, NGK’s expertise goes beyond manufacturing the most reliable spark plugs for the automotive industry but also providing the best customer service possible.
