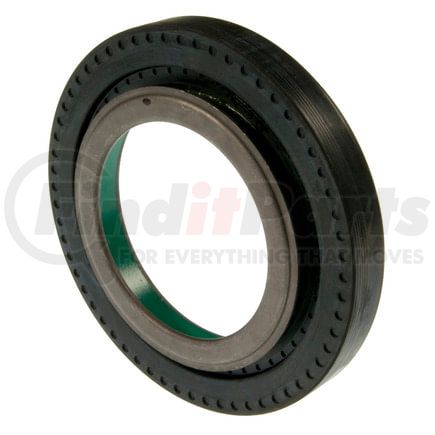

(888) 312-8812 Login SignupNATIONAL SEALS 710685 National 710685 Drive Axle Shaft Seal
Tap to view 1 more
MSRP: $79.62
$5899
Save $20.63
Limited availability at this price!
In Stock
Get it by Tuesday, Dec 23
NATIONAL SEALS 710685 Part Description
Manufacturer
Product Description
Drive Axle Shaft Seal
Application Summary
2005 Ford Excursion (Front Outer) (Drive: 4WD / Qualifier: OE Design, with 9.75 (in) Ring Gear, with Spicer 60-SF Axle, with Monobeam Axle); 2005-2018 Ford F-250 Super Duty (Front Outer) (Drive: 4WD / Qualifier: OE Design, with 9.75 (in) Ring Gear, with Spicer 60-SF Axle, with Monobeam Axle); 2005-2018 Ford F-350 Super Duty (Front Outer) (Drive: 4WD / Qualifier: OE Design, with 9.75 (in) Ring Gear, with Spicer 60-SF Axle, with Monobeam Axle); 2005-2018 Ford F-450 Super Duty (Front Outer) (Drive: 4 X 4 / Qualifier: OE Design, with 9.75 (in) Ring Gear, with Spicer 60-SF Axle, with Monobeam Axle); 2005-2018 Ford F-550 Super Duty (Front Outer) (Drive: 4 X 4 / Qualifier: OE Design, with 9.75 (in) Ring Gear, with Spicer 60-SF Axle, with Monobeam Axle)
Features & Benefits
- Design type: spring loaded; multi-lip
- Temperature range: -40°F to 225°F / -40°C to 107°C
- Temperature range: -40degF to 225degF / -40degC to 107degC
- Good low temperature capability
- Low swell in hydrocarbon fluids
- Delivers quality and reliable performance for every type of repair
NATIONAL SEALS 710685 Specifications
Product Attributes
| Inside Diameter | 3.528 IN |
| Inside Diameter | 89.610 MM |
| Outside Diameter | 5.472 IN |
| Outside Diameter | 139.000 MM |
| Width | 0.654 IN |
| Width | 16.610 MM |
| Material | Nitrile |
| Part Description | Oil Seal |
| Series | 710600 |
| Shaft Diameter | 3.545 IN |
| Shaft Diameter | 90.050 MM |
| Thickness | 0.654 IN |
| Thickness | 16.610 MM |
| Type | # |
| Unit of Dimension | Inch |
| Housing Bore | 5.465 IN |
| Housing Bore | 138.800 MM |
| Grade Type | Premium |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 4016931020 |
| Harmonized Tariff Code (HTS) | 4016931020 |
| Canadian Harmonizing Tariff Code | 4016930000 |
| UPC | 00019826069276 |
NATIONAL SEALS 710685 Part Interchanges
| Brand | Part Number |
|---|---|
| SKF | 35298 |
| Chicago Rawhide | 35298 |
| Ford | 5C3Z-3254-AA, 5C3Z-3254-A, 5C3Z-3254-B, 5C34-3254-AA, 5C34-3254-AC |
| Timken | 710685 |
| Spicer | 55474, 2017426 |
NATIONAL SEALS 710685 Fits Vehicles
- Ford F-250 Super Duty (2005-2018)
- Ford F-350 Super Duty (2005-2020)
- Ford F-450 Super Duty (2005-2018)
- Ford F-550 Super Duty (2005-2018)
- Ford Excursion (2005)
