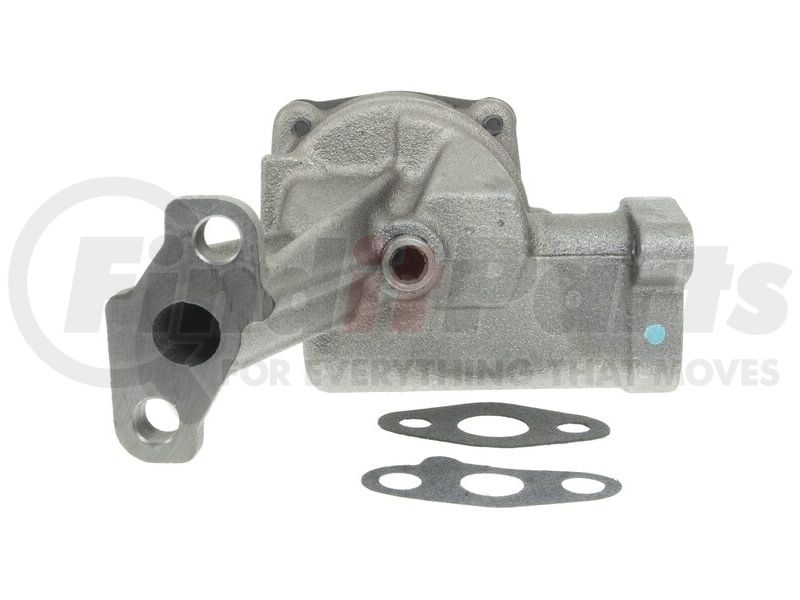

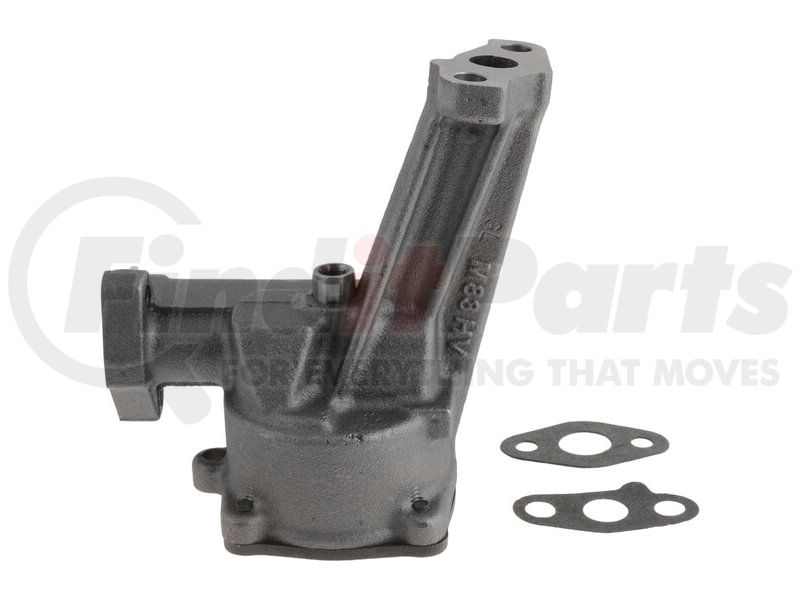

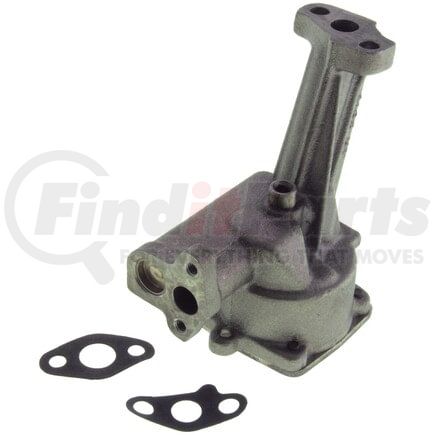

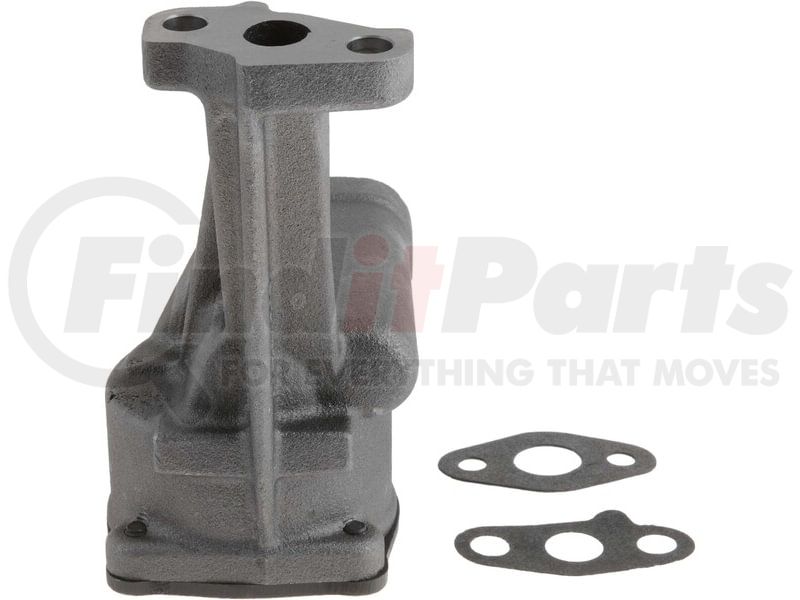

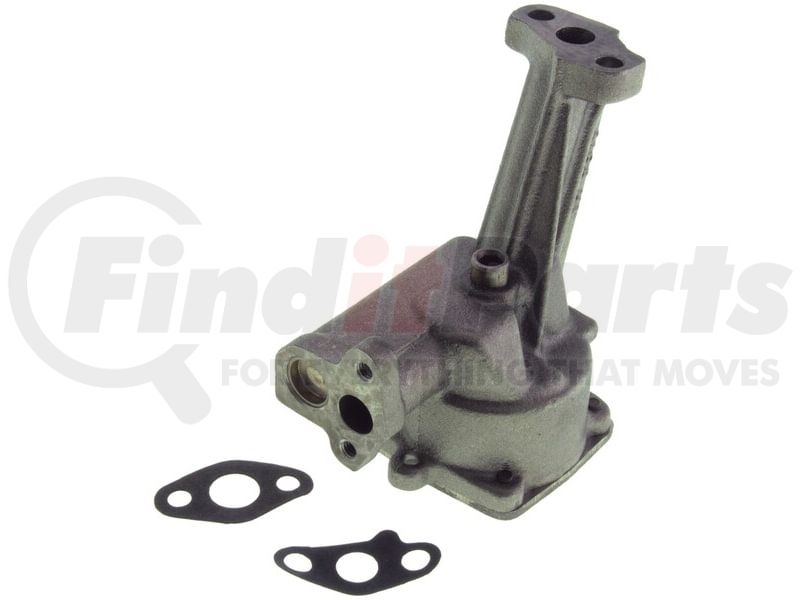

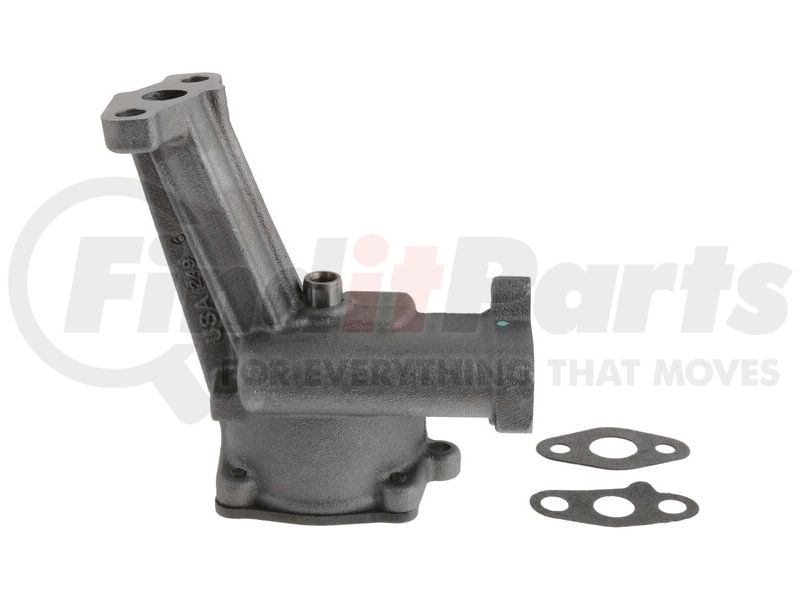

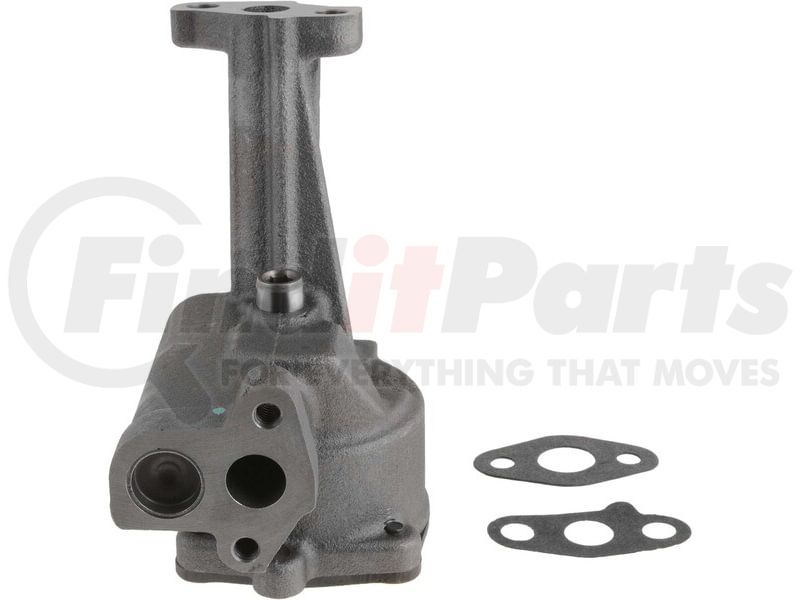

(888) 312-8812 Login SignupMELLING ENGINE PRODUCTS M83HV M-83HV Stock Replacement : High Volume, Standard Pressure, Cast Iron Oil Pump With Gasket
Tap to view 5 more
$170.04
MSRP Pricing shown.
Out of Stock
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
MELLING ENGINE PRODUCTS M83HV Part Description
Manufacturer
Product Description
High Volume Replacement Oil Pump
Features & Benefits
- Precision engineered for optimum fit and function
- Manufactured from high quality materials for consistent durable wear
- Designed for long-life and worry-free performance
- High volume oil pump supplies additional oil to engines when necessary for high performance applications or low oil pressure issues
- Meets or exceeds original equipment specifications
MELLING ENGINE PRODUCTS M83HV Specifications
Product Attributes
| Title | Engine Oil Pump |
| Width | 4.8 IN |
| Width | 122.0 MM |
| Height | 5.92 IN |
| Height | 151.0 MM |
| Grade Type | Improved Design |
| Gasket Or Seal Included | Yes |
| Mounting Hole Quantity | 2 |
| Housing Material | Cast Iron |
| Drive Type | Drive Shaft |
| Oil Pump Type | Gear |
| Pickup Screen Diameter | 0.62 IN |
| Pickup Screen Diameter | 16.0 MM |
| Mounting Hole Diameter | 0.375 IN |
| Mounting Hole Diameter | 10.0 MM |
| Oil Pump Pressure Type | Standard Pressure |
| Oil Pump Volume Type | High Volume |
| Additional Volume Over Stock Percentage | 25% |
| Pickup Screen Included | No |
| Intermediate Shaft Included | No |
| Inlet Size (in) | 0.630 |
| Inlet Size (mm) | 16.00 |
| Cover Material | Cast Iron |
| Bolts Included | No |
| Bushing Included | No |
| Cotter Pin Included | No |
| Governor Spinner Included | No |
| Guide Included | No |
| Nylon Bushing Included | No |
| O-Ring Included | No |
| Pump Cover Included | Yes |
| Shaft Material | Not Applicable |
| Timing Cover Included | No |
| Washers Included | No |
| Spacer Included | No |
| Gears Included | Yes |
| Finish | Rust Preventative |
| Gear Material | Steel |
| Pickup Tube Diameter | 0.630 IN |
| Pickup Tube Diameter | 16.00 MM |
| Adjustable Bypass Pressure | No |
| Alternate Pressure Springs Included | No |
| Drive Shaft Included | No |
Additional Information
| Harmonized Tariff Code (HTS) | 8413309060 |
| Harmonized Tariff Code (Schedule B) | 8413309000 |
| Warranty Time UOM | MO |
| Warranty Time | 12 |
| Country of Origin (Primary) | US |
| UPC | 00729295101451 |
MELLING ENGINE PRODUCTS M83HV Cross References
| Brand | Part Number |
|---|---|
| Avon Automotive | A-83HV |
| Badger | 41-143HVU, B-83HV |
| Balkamp | 601-1126 |
| Dynagear | DM-83HV |
| Elgin | EM-83HV |
| Enginetech | EP83HV |
| Federated | DM-83HV |
| Fleet-Tuf | OP137HV |
| Hoof | HM83HV |
| ITM Engine Components | N/A |
| Lunati | 94083 |
| MAHLE | 601-1126 |
| MELLING ENGINE PRODUCTS | M83HV |
| Melling | M-83HV |
| Muskegon | MM-83-HV |
| N/A | N/A |
| Perfect Circle | 601-1126, P83HV |
| Pioneer | OP-83-HV |
| SEALED POWER | 22441143V |
| Safety Auto Parts Corp | N/A |
| Sealed Power | 224-41143HV, 224-41143V |
| TRW | 50123 |
| Topline | N/A |
| Wolverine/Blue Racer | WG-533X |
MELLING ENGINE PRODUCTS M83HV Fits Vehicles
- Ford F-250 HD (1997)
- Ford Custom (1969-1972)
- Ford LTD Crown Victoria (1987-1991)
- Mercury Monterey (1970-1974)
- Mercury Cyclone (1969-1971)
- Mercury Comet (1969)
- Mercury Colony Park (1969-1974)
- Ford Ranch Wagon (1969-1974)
- Ford Mustang (1969-1973)
- Ford Galaxie 500 (1969-1974)
- Ford Falcon (1969-1970)
- Ford Fairlane (1969-1970)
- Ford Country Squire (1969-1974)
- Ford Country Sedan (1969-1974)
- Mercury Montego (1969-1976)
- Mercury Monarch (1975-1977)
- Mercury Marquis (1971-1973, 1978-1979, 1981)
- Mercury Cougar (1969-1979)
- Mercury Grand Marquis (1978-1979, 1981)
- Lincoln Versailles (1977)
- Lincoln Continental (1980)
- Ford Torino (1969-1976)
- Ford Thunderbird (1977-1979)
- Ford Ranchero (1969-1979)
- Ford LTD II (1977-1979)
- Ford Granada (1975-1977)
- Ford Gran Torino (1972-1976)
- Ford F-350 (1977-1997)
- Ford F-250 (1977-1996)
- Ford F-150 (1977-1996)
- Ford F-100 (1977-1979)
- Ford Elite (1975-1976)
- Ford E-350 Econoline Club Wagon (1977-1996)
- Ford E-350 Econoline (1975-1996)
- Ford E-250 Econoline Club Wagon (1975-1991)
- Ford E-250 Econoline (1975-1996)
- Ford E-150 Econoline Club Wagon (1975-1996)
- Ford E-150 Econoline (1975-1996)
- Ford E-100 Econoline Club Wagon (1975-1983)
- Ford E-100 Econoline (1975-1983)
- Ford Econoline Super Duty (1996)
- Ford Custom 500 (1969-1977)
- Ford LTD (1969-1986)
- Ford Bronco (1978-1996)
