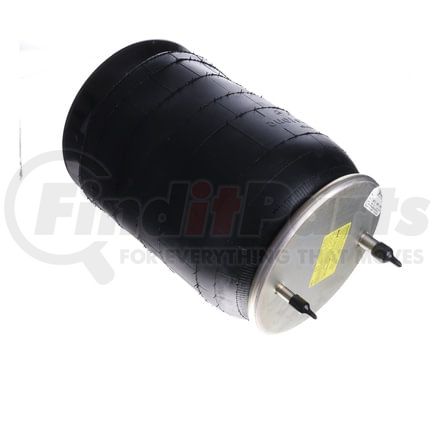

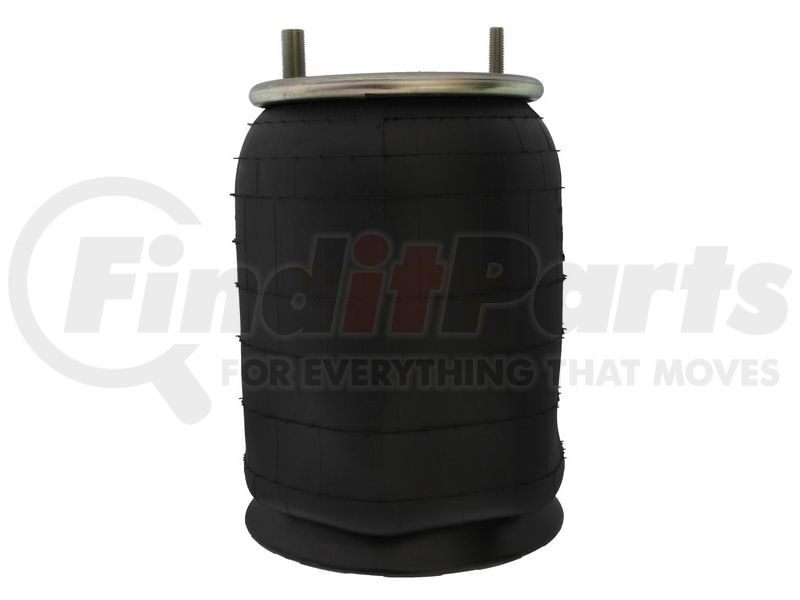

(888) 312-8812 Login SignupMERITOR FS9367 Air Suspension Spring, 10.25 in. Bead Plate Diameter Bottom, 9.00 in. Bead Plate Diameter Top
Tap to view 5 more
MSRP: $683.07
$30499
Save $378.08
Limited availability at this price!
In Stock
Get it by Tuesday, Aug 25
MERITOR FS9367 Part Description
Manufacturer
Product Description
Air Suspension Spring
Meritor Air Suspension Spring
The Meritor Air Suspension Spring supports heavy commercial payloads to maintain proper ride height across your trailer axles. Featuring a robust reinforced rubber bladder, this airbag isolates your truck frame from severe secondary road shock. Proper frame leveling returns to the vehicle immediately when you mount the Meritor FS9367 in the suspension bay. Keeping your pneumatic suspension fully operational safeguards fragile freight and lowers the wear on surrounding trailer components.
| Aftermarket Extended Warranty - General | 3 Years / 300K Miles |
| Application | Hendrickson S14249 (W01-455-9321); Hendrickson Auxiliary 003319 (metric equivalent) |
| Bead Plate Diameter Bottom | 10.25 in. |
| Bead Plate Diameter Top | 9.00 in. |
| Collapsed Height | 9.20 in. |
| Convoluted Style | 1T Reversible Sleeve |
| Max. Height | 27.60 in. |
| Part Diameter | 10.12 in. |
| Piston Height | 7.40 in. |
| Stud Configuration-Bottom | 4 |
| Stud Configuration-Top | 2 |
| Stud Mount-Bottom Flat | Flat |
| Stud Mount-Top Flat | Stud |
| VMRS Code | 016-008-000 |
Meritor Air Suspension Spring
Meritor air suspension spring protects tractors and trailers from road shocks and keep your ride a comfortable one. This aftermarket air spring covers a wide range of OEM specifications at affordable prices.
Features & Benefits
- Lightweight, high-strength pistons with support washers provide exceptional strength and durability
- Made of premium-grade steel and aluminum with electrostatic coating for oxidation resistance
- Special chromium coating on bead plate protects against rust, corrosive chemicals, and harsh operating environments
- Piston base units resist puncture damage on messy commercial job sites
MERITOR FS9367 Specifications
Product Attributes
| Aftermarket Extended Warranty - General | 3 Years / 300K Miles |
| Application | Hendrickson S14249 (W01-455-9321); Hendrickson Auxiliary 003319 (metric equivalent) |
| Bead Plate Diameter Bottom | 10.25 in. |
| Bead Plate Diameter Top | 9.00 in. |
| Brand | Meritor |
| Collapsed Height | 9.20 in. |
| Convoluted Style | 1T Reversible Sleeve |
| Max. Height | 27.60 in. |
| Pallet Quantity | 32 |
| Part Diameter | 10.12 in. |
| Piston Height | 7.40 in. |
| Product Category | Genuine OE Product |
| Stud Configuration-bottom | 04 |
| Stud Configuration-top | 02 |
| Stud Mount-bottom Flat | Flat |
| Stud Mount-top Flat | Stud |
| Weight | 19.59 |
| Air Spring Type | Reversible Sleeve |
| Max Height | 27.60 in. |
MERITOR FS9367 Cross References
| Brand | Part Number |
|---|---|
| Automann | 566CT64384, 566CT64716, AB1DK23N9367, AB1DK23N9367A |
| CONTITECH | 91021A505, 91021P505 |
| Continental-ContiTech | 64384, 91021A505, 91021P505 |
| DAYTON PARTS BATCO | 1R121071, 1R12256, 3529367, B14249 |
| FIRESTONE | W013589367, 9367 |
| FLAGG | 8505 |
| Firestone Ride-Rite | W013589367, 9367 |
| GOODYEAR | 1R12256, 1R12283 |
| HENDRICKSON TURNER | B14249, S14249 |
| NEWAY | 57009367 |
| SIRCO BRAKE | AS9367 |
| WATSON CHALIN | AS0104, AS0137 |
| WORLD AMERICAN | WA01-9367C |
