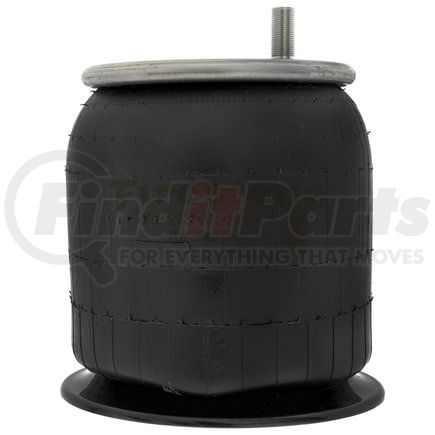

(888) 312-8812 Login SignupMERITOR FS8944 Air Suspension Spring, 11.06 in. Bead Plate Diameter Bottom, 9.00 in. Bead Plate Diameter Top
MSRP: $523.84
$28949
Save $234.35
Limited availability at this price!
In Stock
Get it by Friday, Jul 24
MERITOR FS8944 Part Description
Manufacturer
Product Description
Air Suspension Spring
Features & Benefits
- Rubber sleeve movement absorbs road shock before it reaches the frame
- Air chamber sealing keeps pressure contained through loaded operation
- Adapts to vertical travel as the suspension compresses and extends
- Stabilizes ride height response after the air system reaches pressure
- Cushions load changes between the axle side and chassis structure
Meritor Air Suspension Spring
If the suspension sits low on one corner after loading, the Meritor Air Suspension Spring is one of the first places to check before blaming the valve or frame hardware. The spring uses a reversible sleeve design with a 9.00-inch top bead plate and 11.06-inch bottom bead plate, creating a pressure-carrying rubber section between the chassis and axle-side mounting points. Its shape allows the suspension to rise, settle, and flex with changing trailer load instead of transferring every road hit straight into the frame. For air ride repair, the Meritor FS8944 brings the spring position back into the suspension stack.
| Aftermarket Extended Warranty - General | 3 Years / 300K Miles |
| Bead Plate Diameter Bottom | 11.06 in. |
| Bead Plate Diameter Top | 9.00 in. |
| Collapsed Height | 7.30 in. |
| Convoluted Style | 1T Reversible Sleeve |
| Max. Height | 21.70 in. |
| Part Diameter | 10.12 in. |
| Piston Height | 5.68 in. |
| Stud Configuration-Bottom | 4 |
| Stud Configuration-Top | 1 |
| Stud Mount-Bottom Flat | Flat |
| Stud Mount-Top Flat | Stud |
| VMRS Code | 016-008-000 |
Meritor Air Suspension Spring
Meritor air suspension spring protects tractors and trailers from road shocks and keep your ride a comfortable one. This aftermarket air spring covers a wide range of OEM specifications at affordable prices.
Features & Benefits
- Lightweight, high-strength pistons with support washers provide exceptional strength and durability
- Made of premium-grade steel and aluminum with electrostatic coating for oxidation resistance
- Special chromium coating on bead plate protects against rust, corrosive chemicals, and harsh operating environments
- Cushions load changes between the axle side and chassis structure
MERITOR FS8944 Specifications
Product Attributes
| Aftermarket Extended Warranty - General | 3 Years / 300K Miles |
| Bead Plate Diameter Bottom | 11.06 in. |
| Bead Plate Diameter Top | 9.00 in. |
| Brand | Meritor |
| Collapsed Height | 7.30 in. |
| Convoluted Style | 1T Reversible Sleeve |
| Max. Height | 21.70 in. |
| Pallet Quantity | 32 |
| Part Diameter | 10.12 in. |
| Piston Height | 5.68 in. |
| Product Category | Genuine OE Product |
| Stud Configuration-bottom | 04 |
| Stud Configuration-top | 01 |
| Stud Mount-bottom Flat | Flat |
| Stud Mount-top Flat | Stud |
| Weight | 16.11 |
| Air Spring Type | Reversible Sleeve |
| Max Height | 21.70 in. |
MERITOR FS8944 Cross References
| Brand | Part Number |
|---|---|
| Automann | 566CT64401, AB1DK23P8944 |
| CONTITECH | 910175P436 |
| Continental-ContiTech | 64401, 910175P436 |
| DAYTON PARTS BATCO | 1R12366, 3528944 |
| FIRESTONE | W013588944, 8944, 9015, 9262 |
| FLAGG | 8436 |
| Firestone Ride-Rite | 8944, 9262, 9015, W013588944 |
| GOODYEAR | 1R12366, 1R13081 |
| HENDRICKSON TURNER | S20217 |
| POWER10 PARTS | HT-S20217 |
| SIRCO BRAKE | AS8944 |
| WORLD AMERICAN | WA01-8944C |
MERITOR FS8944 Customer Reviews
No reviews yet
Be the first to review this product!
MERITOR FS8944 Manufacturer Information
Meritor®, whose roots could be traced back to 1909, is backed by over 100 years of industry experience plus a massive portfolio of products for various industries. In 1998, it made several acquisitions, including Volvo Trucks' heavy vehicle manufacturing operation in Sweden, Euclid Industries, and Lucas Varity's Heavy Vehicle Braking Systems division. Such investments solidify Meritor's position as the leading global supplier of brakes, axles, drivelines, transmissions, suspensions, tire inflations systems, and a whole lot of parts, hardware, and accessories for the automotive, truck, trailer, rail cars, bus and coach, and many other applications. Its "Run with the Bull" global brand identity further strengthens its commitment to provide the industry with durable products, unparalleled service and support, and continuous innovation.
