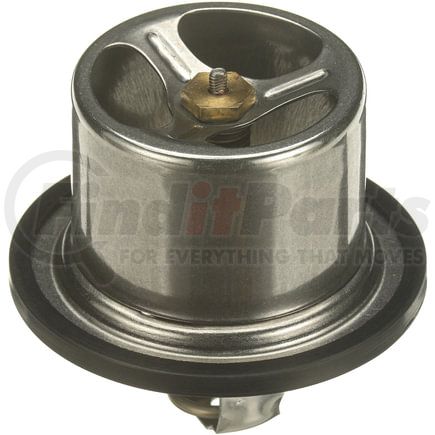

GATES 34149 Green Stripe Heavy-Duty Engine Coolant Thermostat

★★★★★ (0)
Gates 34149 Engine Coolant Thermostat Green Stripe Heavy-Duty Engine Coolant Thermostat
GATES
Tap to view 2 more

$103.49

Limited availability at this price!

In Stock

Get as soon as Wednesday, Oct 21
30-day Return Policy On eligible items Details
Free Ground shipping on orders over $499 details
Orders placed over the weekend will be processed the next business day.

GATES 34149 Part Description

Manufacturer

GATES

Product Description

Green Stripe Heavy-Duty Engine Coolant Thermostat

Application Summary

2016-12 International/Navistar, ProStar Series, Cummins ISX15 Diesel, Thermostat

Features & Benefits

  • Heavy-gauge brass and stainless steel construction for corrosion resistance
  • Quality-controlled factory calibration assures accuracy of opening and closing, regardless of pressure changes
  • Temperature sensitive heat motor provides consistent valve response for smooth performance and precise engine cooling
  • Jiggle pins for air venting, seals and gaskets make these thermostats equivalent to the original equipment parts

GATES 34149 Specifications

Product Attributes

Type Heavy-Duty Thermostat
Start to Open Temperature 192 FA
Design Weir-Stat
Material Stainless Steel, Copper
Height 3 IN
Sealing Flange Outside Diameter 3.13 IN
Flange Thickness .06 in
Valve Outside Diameter 2.27 IN
Flange Height 1.79 IN
Height Between Flanges 1.467 IN
Jiggle Pin Weep Hole No
Jiggle Pin Check Valve Quantity 0
Gasket Quantity 0
Seal Quantity 1
Seal Type O-Ring
Installation Tool Included No
Start to Open Temperature 88 CE

Additional Information

Country of Origin (Primary) CN
Harmonized Tariff Code (Schedule B) 8481809015
Stock Status S
UPC 00770075523949
VMRS Code 042006000
UNSPSC 41112209

GATES 34149 Cross References

BrandPart Number
CARQUEST or Stant15009, 15008
Carquest38009, 38008
Caterpillar7W0371
Cummins4973374, 2882757, 3335550, 35312357, 4318197, 4318947, 4952204, 4973373, 75017533, 79640644, 4319847, 4336659
Motorad4061-80, 4061-90
NAPA614190, 614180
NAPA Belts/Hose34149, 34148
Stant15009, 31579, 15008, 31578

GATES 34149 Fits Vehicles

  • Autocar LLC. Xpeditor (2009, 2014-2015)
  • Autocar LLC. Xpeditor WX (2006-2009)
  • Autocar LLC. Xpeditor WXLL (2006-2009)
  • Autocar LLC. Xpeditor WXR (2006)
  • Freightliner 122SD (2014)
  • Freightliner Argosy (2002)
  • Freightliner Cascadia (2009-2017)
  • Freightliner Columbia (2009)
  • Freightliner Coronado (2011-2015)
  • Freightliner MT55 (2009)
  • International 2554 (1999-2000)
  • International 2574 (1998-2003)
  • International 2654 (1999-2000)
  • International 2674 (1998-2003)
  • International 5000 (1998-2000)
  • International 5070 (1998-1999)
  • International 5500i (2000-2011)
  • International 5600i (2000-2011)
  • International 5900i (2000-2012, 2014-2016)
  • International 7400 (2005)
  • International 7600 (2003-2007)
  • International 7700 (2005-2006)
  • International 8100 (1998-2003)
  • International 8500 TranStar (2008-2011)
  • International 8600 SBA (2003-2007)
  • International 8600 TranStar (2008-2011)
  • International 9100 SBA (1999)
  • International 9100i SBA (2000-2003)
  • International 9200 SBA (1999-2000)
  • International 9200i SBA (2000-2011)
  • International 9400 (1999-2000)
  • International 9400i SBA (2000-2007, 2010-2011)
  • International 9800 SBA (1999)
  • International 9900 (1999)
  • International 9900 SFA (1999)
  • International 9900i (2000-2010, 2014-2016)
  • International 9900i SFA (2000-2003)
  • International 9900ix (2004-2009)
  • International 9900ix SFA (2001-2002)
  • International F5070 (1998-1999)
  • International LoneStar (2009-2012, 2015-2017, 2019)
  • International ProStar (2008-2016)
  • International WorkStar 7600 (2008-2011)
  • International WorkStar 7700 (2008-2012)
  • Kenworth C500 (2001-2016)
  • Kenworth K100E (1999, 2001)
  • Kenworth T2000 (1999-2010)
  • Kenworth T600A (1999-2008)
  • Kenworth T660 (2008-2015)
  • Kenworth T680 (2013-2016)
  • Kenworth T700 (2011-2015)
  • Kenworth T800 (1999-2015)
  • Kenworth T880 (2014-2016)
  • Kenworth W900 (1999-2016)
  • Mack CL (2004-2007)
  • Mack CXU (2014-2017)
  • Peterbilt 320 (1998-2003, 2005-2017)
  • Peterbilt 357 (1998, 2000-2007)
  • Peterbilt 365 (2008-2015)
  • Peterbilt 367 (2008-2015)
  • Peterbilt 378 (1998-2007)
  • Peterbilt 379 (1998-2007)
  • Peterbilt 384 (2008-2015)
  • Peterbilt 385 (1998-2007)
  • Peterbilt 386 (2007-2015)
  • Peterbilt 387 (2000-2011)
  • Peterbilt 388 (2008-2014)
  • Peterbilt 389 (2008-2015)
  • Peterbilt 567 (2014-2015)
  • Peterbilt 579 (2013-2017)
  • Peterbilt 587 (2011-2015)
  • Volvo ACL (1999-2001)
  • Volvo VHD (2001-2003)
  • Volvo VN (1998-1999)
  • Volvo VNL (2000-2016)
  • Volvo VNL 300 (2016)
  • Volvo VNL 430 (2015-2016)
  • Volvo VNL 630 (2015-2016)
  • Volvo VNL 670 (2015-2016)
  • Volvo VNM (2000-2003, 2007)
  • Volvo VT (2006-2010)
  • Volvo WAH (1998-1999, 2001-2002)
  • Volvo WC (1998)
  • Volvo WG (1998-2001)
  • Volvo WI (1998)
  • Volvo WX (1999-2003)
  • Western Star 4800 (1999-2000)
  • Western Star 4900 (2000-2001)
  • Western Star 4900EX (2003, 2011-2017)
  • Western Star 4900FA (2011-2018)
  • Western Star 4900SA (2011-2017)
  • Western Star 5800 (1998-2001)
  • Western Star 6900XD (2015)
  • American LaFrance ALF Eagle (2003)
  • American LaFrance Condor (2008-2011)
  • Crane Carrier Low Entry (2006-2009)
  • Gillig Low Floor (2005-2009)
  • Orion Bus Orion V (2000)
  • Oshkosh Motor Truck Co. S (2000-2011)
  • Pierce Mfg. Inc. Arrow XT (2009-2010)
  • Pierce Mfg. Inc. Dash (2006-2009)
  • Pierce Mfg. Inc. Lance (2008)
  • Pierce Mfg. Inc. Quantum (2006-2010)
  • Pierce Mfg. Inc. Velocity (2008-2010)
  • Sterling Truck A9500 (1999-2003)
  • Sterling Truck A9513 (1999-2000)
  • Sterling Truck AT9500 (1999-2003)
  • Sterling Truck AT9513 (1999-2000)
  • Sterling Truck AT9522 (1999-2000)
  • Sterling Truck Condor (2002-2003)
  • Sterling Truck L9500 (1999-2003)
  • Sterling Truck L9501 (1999-2000)
  • Sterling Truck L9511 (1999)
  • Sterling Truck L9513 (1999-2000)
  • Sterling Truck LT7500 (2001)
  • Sterling Truck LT9500 (1999-2003)
  • Sterling Truck LT9501 (1999-2000)
  • Sterling Truck LT9511 (1999-2000)
  • Sterling Truck LT9513 (1999-2002)
  • Sterling Truck LT9522 (1999-2000)
  • Van Hool C2045 (2000)
