(888) 312-8812 Login SignupGATES G22304-2432 Code 61 O-Ring Flange - 30 Bent Tube (GlobalSpiral Plus)
Tap to view 2 more
$114.37
MSRP Pricing shown.
Out of Stock
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
GATES G22304-2432 Part Description
Manufacturer
Product Description

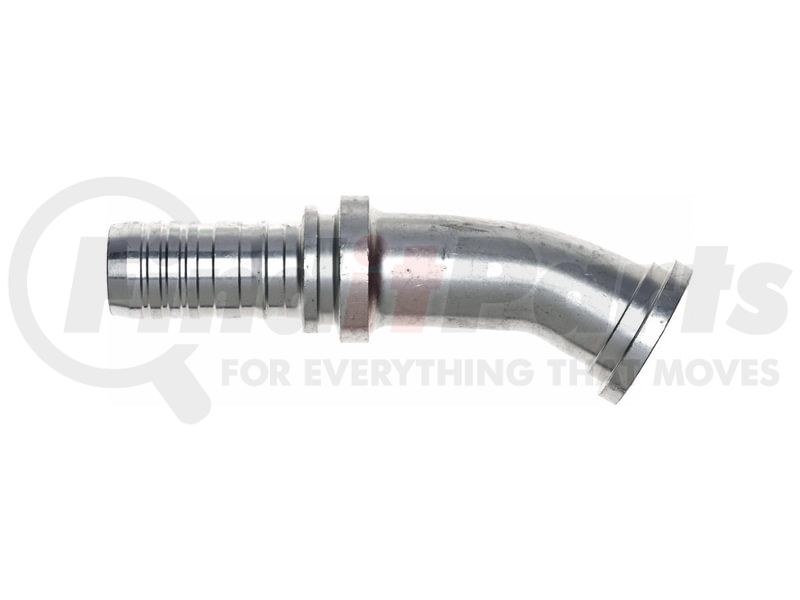

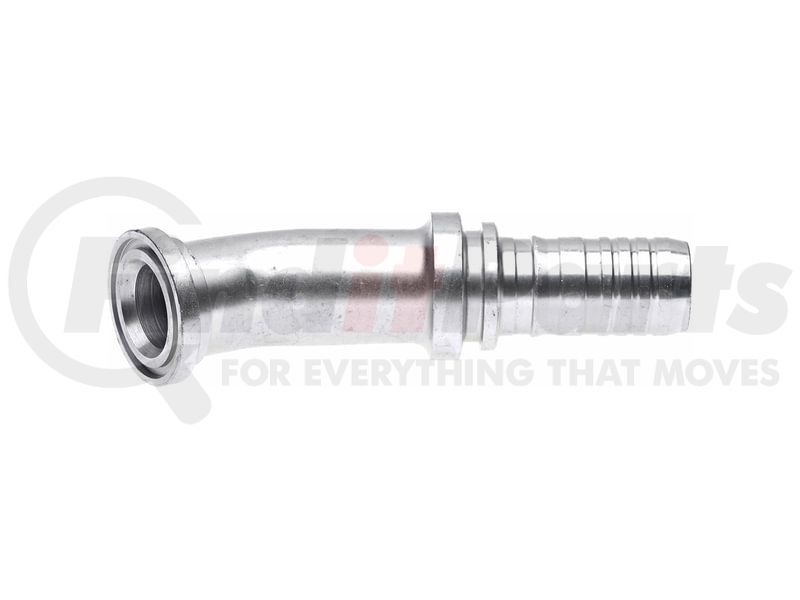

Code 61 O-Ring Flange - 30 Bent Tube (GlobalSpiral Plus)
Features & Benefits
- "Bite-the-wire" crimp for improved coupling retention
- “Bite-the-wire” crimp for improved coupling retention
- Tested to an industry-leading 1,000,000 impulse cycles
- +250 Deg. F temperature capability for longer assembly life
- Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance than the SAE Standard
GATES G22304-2432 Specifications
Product Attributes
| Coupling Description | GlobalSpiral Plus Code 61 O-Ring Flange - 30 Bent Tube |
| Industrial Description | 24GSP-32FL30M |
| Inside Diameter | 1.5 IN |
| Hydraulic Hose Recommendation | Gates Extremely High Pressure Hydraulic Hose (-24 & -32) |
| Maximum Working Pressure | 3000 PS |

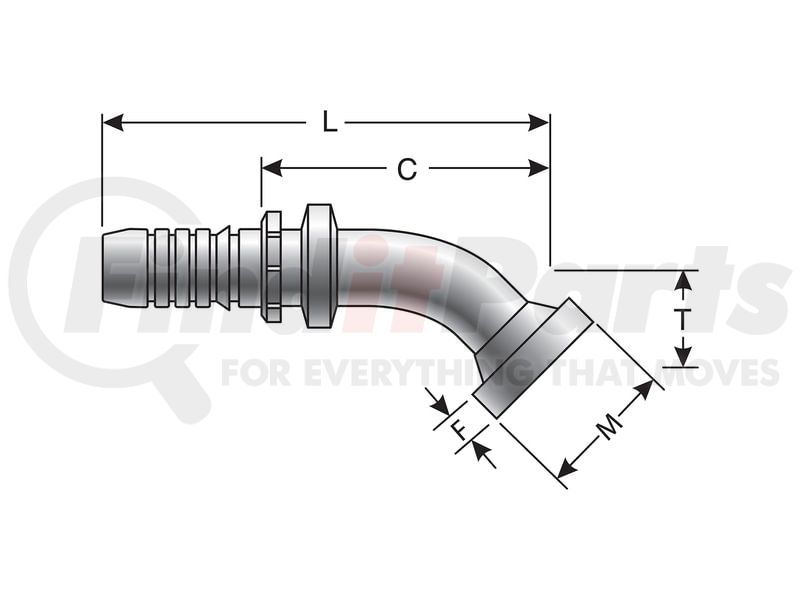

| Flange Thickness | .38 in |
| Flange Diameter | 2.81 IN |
| Drop Length | 1.26 IN |
| Cut-Off Length | 5.39 IN |
| Length | 8.27 IN |
| Inside Diameter | 38.1 MM |
| Flange Thickness | 9.7 MM |
| Flange Diameter | 71.4 MM |
| Drop Length | 32 MM |
| Cut-Off Length | 136.8 MM |
| Length | 210.1 MM |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8412909015 |
| Country of Origin (Primary) | US |
| Stock Status | N |
| UPC | 00770075417460 |
| VMRS Code | 059032012 |
| UNSPSC | 31163000 |
GATES G22304-2432 Cross References
| Brand | Part Number |
|---|---|
| Goodyear | 28335-2432 |
| N/A | 04031536 |
| NAPA | G22304-2432 |
| Weatherhead | 43024UH26, 43024U-H26 |
