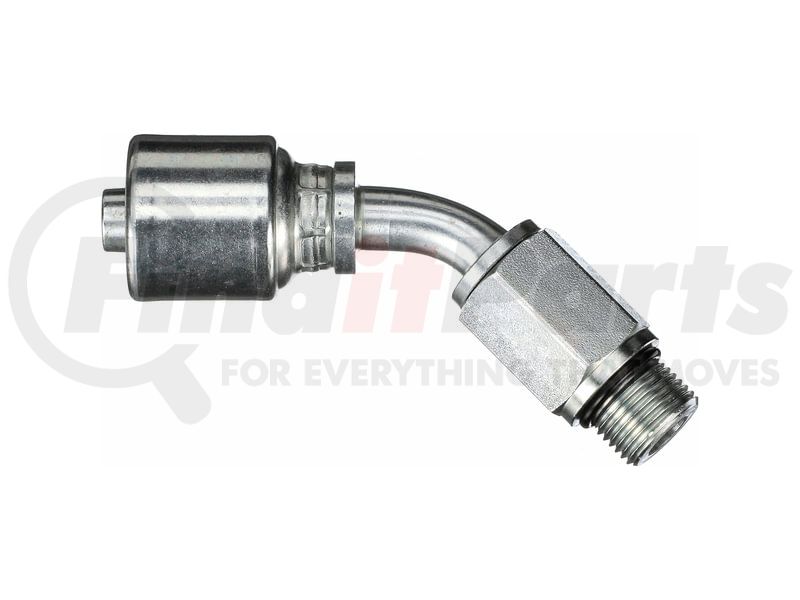

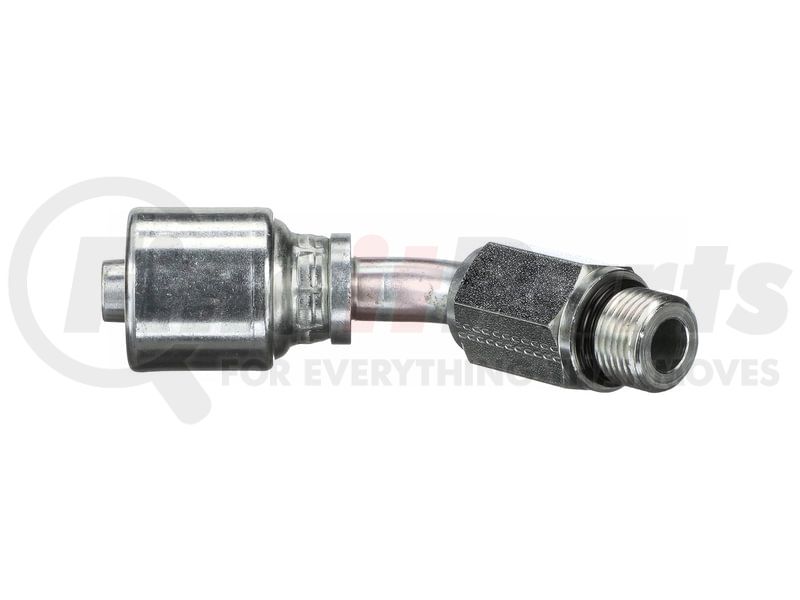

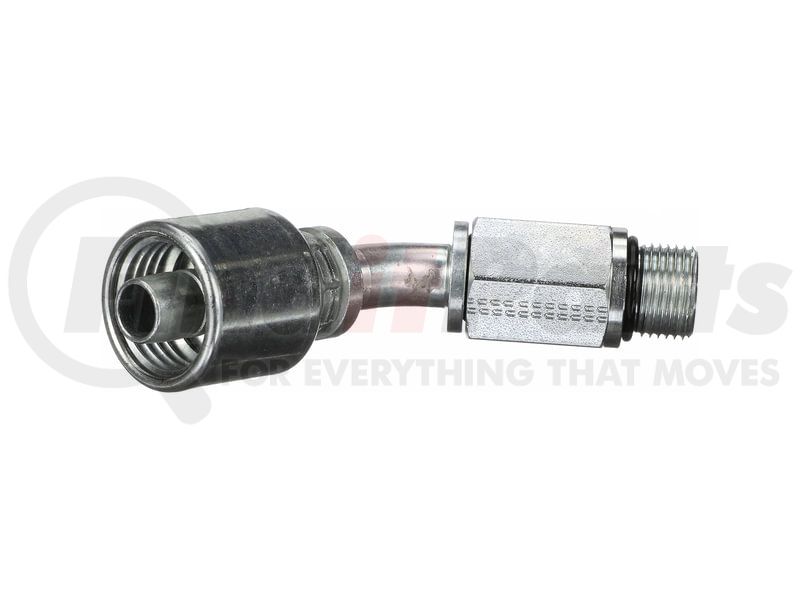

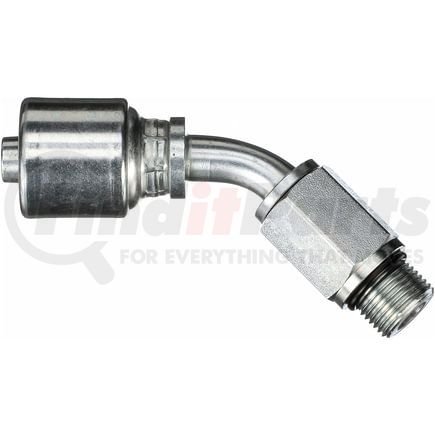

Gates G25126-0606 - Male O-Ring Boss Swivel - 45 Bent Tube (MegaCrimp)
$6649
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
GATES part description
Product Description
Male O-Ring Boss Swivel - 45 Bent Tube (MegaCrimp)
Features & Benefits
- Robust "bite-the-wire" crimp
- Robust “bite-the-wire” crimp
- Tested to an industry-leading 1,000,000 impulse cycles
- Simplifies inventory management
- Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance than the SAE Standard
- Popular thread styles also available with TuffCoat Xtreme plating for 583 percent better corrosion resistance than the SAE Standard
Product Attributes

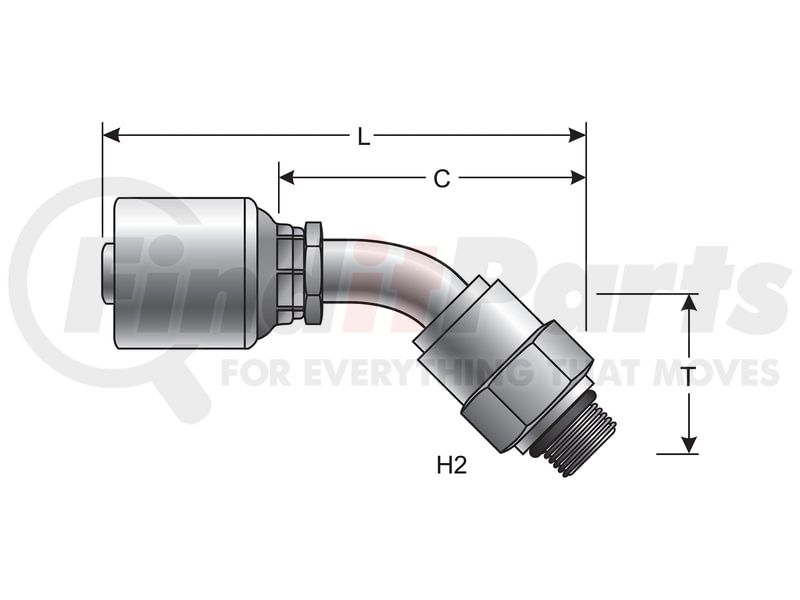

| Coupling Description | MegaCrimp Male O-Ring Boss Swivel - 45 Bent Tube |
| Industrial Description | 6G-6MBX45 |
| Thread Size | 9/16-18 |
| Inside Diameter | .375 IN |
| 9952 | Can Accommodate Various Hose Outside Diameters on Both One-Wire & Two-Wire Braid Hydraulic Hose |
| 9923 | 22 MM |
| Drop Length | 1.52 IN |
| 9929 | 2.54 IN |
| Length | 3.65 IN |
| Seal Type | O-Ring |
| 9927 | Outside O-Ring Boss |
| Gender | Male |
| 9934 | 45 |
| Swivel | Yes |
| Inside Diameter | 9.5 MM |
| 1874 | 38.7 MM |
| 9929 | 64.6 MM |
| Length | 92.6 MM |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 7326908688 |
| UPC | 00770075470182 |
| VMRS Code | 059032012 |
| UNSPSC | 31163000 |
