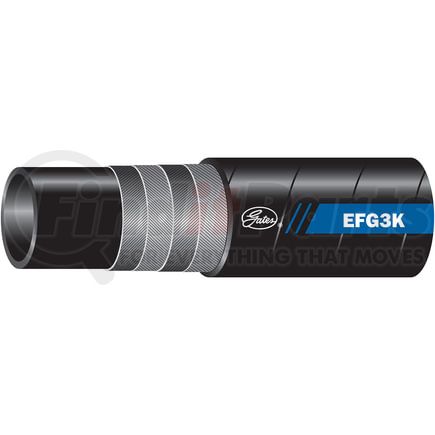

GATES 85430 - Hydraulic Hose - EFG3K Spiral Wire Hose - SAE 100R12
$1,04349
MSRP: $1,874.25
Save: $830.76
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
GATES part description
California Proposition 65 Warning
California Proposition 65 Warning
WARNING: This product can expose you to chemical which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov. (Read more)
Product Description
EFG3K Spiral Wire Hose - SAE 100R12
Features & Benefits
- For use with GlobalSpiral Couplings [G20 Series], GlobalSpiral One-Piece Couplings [G21 Series, -20 Only], GlobalSpiral Plus Couplings [G22 Series], Stainless Steel Couplings [G17 Series - Braid] and [G18 - Spiral]
- Tested to industry-leading 1,000,000 impulse cycles
- MegaTuff hose lasts up to 300 times longer than standard hose during hose-to-hose and hose-to-metal abrasion tests per ISO 6945 and offers superior ozone and weathering resistance
- Meets Flame Resistance Acceptance Designation MSHA 2G
- Temperature Range: -40 Deg. F to +250 Deg. F (-40 Deg. C to +121 Deg. C)
Product Attributes
| Product Type | EFG3K Spiral Wire Hose - SAE 100R12 |
| Industrial Description | 24EFG3KX25FT |
| Type | Hydraulic Hose |
| Hose Pressure Description | Very High Pressure |
| Maximum Working Pressure | 3000 PS |
| Burst Pressure | 12000 PS |
| Temperature Rating | -40 Deg. F to +250 Deg. F (-40 Deg. C to +121 Deg. C) |
| Length | 25 FT |
| 9941 | 24 |
| Inside Diameter | 1.5 IN |
| Outside Diameter | 2.11 IN |
| 9879 | 10 IN |
| Tube Description | Black, Oil-Resistant, Synthetic Rubber |
| Hose Material | Nitrile - Type C |
| Reinforcement Material | Four Alternating Layers of Spiraled, High-Tensile Steel Wire |
| Cover Material | Synthetic Rubber - Polychloroprene - Type A - Color Coded Layline |
| Cover Type | Type A - Flame & Oil Resistant |
| Cover Color | Black |
| 9856 | GlobalSpiral Plus, Stainless Steel B |
| 9453 | 100R12 |
| 9954 | 856 R12, 856 4SP |
| 9953 | 18752 Grade D, 3862 Type R12 |
Additional Information
| Harmonized Tariff Code (Schedule B) | 4009210000 |
| Country of Origin (Primary) | US |
| UPC | 00770075430643 |
| VMRS Code | 059032029 |
| UNSPSC | 40142020 |
