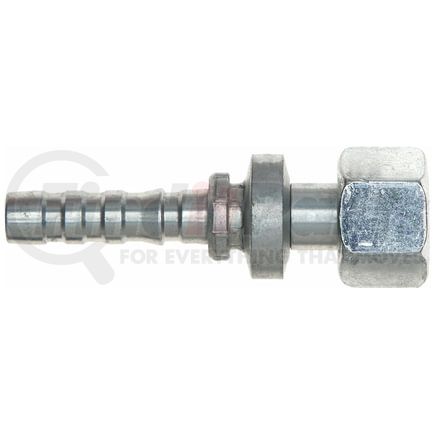

Gates G20645-2035 - Female DIN 24 Cone Swivel - Light Series with O-Ring (GlobalSpiral)
$11699
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
GATES part description
Product Description
Female DIN 24 Cone Swivel - Light Series with O-Ring (GlobalSpiral)
Features & Benefits
- "Bite-the-wire" crimp for improved coupling retention
- “Bite-the-wire” crimp for improved coupling retention
- Tested to an industry-leading 1,000,000 impulse cycles
- +250degF temperature capability for longer assembly life
- +250°F temperature capability for longer assembly life
- Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance than the SAE Standard
Product Attributes
| Inside Diameter | 1.25 IN |
| Hydraulic Hose Recommendation | All Gates MegaSys Four and Six-Spiral Wire Hydraulic Hose Up to 8,000 psi |
| Outside Diameter | 35 MM |
| Nut Hex Size | 50 MM |
| Cut-Off Length | 2.42 IN |
| Length | 5.21 IN |
| Coupling Description | GlobalSpiral Female DIN 24 Cone Swivel - Light Series w/ O-Ring |
| Industrial Description | 20GS-35FDLORX |
| Thread Size | M45X2.0 |
| Inside Diameter | 31.8 MM |
| Cut-Off Length | 61.4 MM |
| Length | 132.3 MM |
Additional Information
| Harmonized Tariff Code (Schedule B) | 7326908688 |
| Country of Origin (Primary) | US |
| UPC | 00770075418337 |
| VMRS Code | 059032012 |
| UNSPSC | 31163000 |
