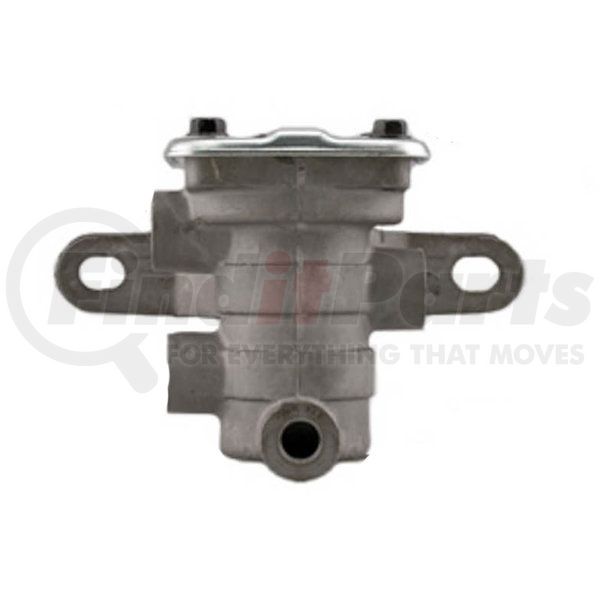

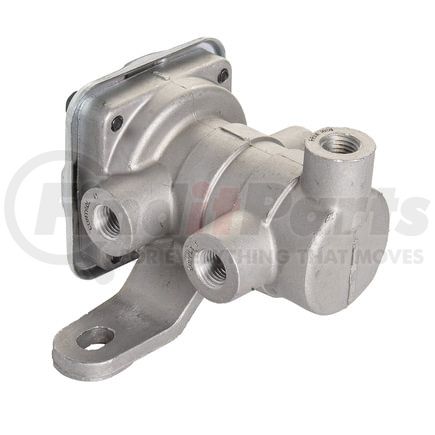

HALDEX KN28030 Inversion Valve

★★★★★ (0)
Haldex KN28030 Air Brake Inversion Valve Inversion Valve
HALDEX
Tap to view 2 more

$246.49

Limited availability at this price!

In Stock

Get as soon as Monday, Nov 23
30-day Return Policy On eligible items Details
Free Ground shipping on orders over $499 details

HALDEX KN28030 Part Description

Manufacturer

HALDEX

Product Description

Inversion Valve

Features & Benefits

  • Primary failure detection keeps spring brake control available
  • Modulates the spring brakes when primary air is lost
  • Four-port layout covers reservoir, supply, control, and delivery
  • Replaces competitive inversion valves once the air lines are relocated

Haldex Air Brake Inversion Valve

If the old inversion valve sticks or leaks, the spring brakes lose their backup control when primary air fails, and the Haldex Air Brake Inversion Valve puts that control back in the circuit. Used on spring brake trucks and tractors, the valve detects a primary reservoir failure and allows modulated control of the spring brakes. The Haldex KN28030 has 1/4-inch primary reservoir, supply, control, and delivery ports on 4.65-inch mounting centers. The valve belongs to older spring-brake circuits built around the stated FMVSS 121 configuration and port arrangement.

HALDEX KN28030 Specifications

Product Attributes

Control Port.25

Additional Information

Core Group-
Warranty Distance100000
Warranty Distance UOMDH
UPC00767653010649
VMRS Code013010363

HALDEX KN28030 Cross References

BrandPart Number
013-010-363
Advance Mixer16797
Bendix286364, 286365, 286634, 286634X, 286834, 286893, 287278, 288364, 288364X
Central Power Products843-034559
Chance Manufacturing28458500
DANAP-66932
Dana Commercial Vehicle Service PartsP-66932
Elgin Sweeper1038670
Emergency One350175
EuclidE-BN286364X, E-BN288063X, E-MDKN28030X
GMC15634535, 2017738, 2022477, 2022486, 717894
HALDEXKN28030, KN28030X
HaldexN20950AA
KenworthK295-127, K295-187
Lodal9961060
MCI4TA-29-1
Mack20QE1278R, 20QE311AR, 20QE3142R
Meritor9718990010, 9718990040, 9718990050, RKN28030, RKN28030X, RMPN20950AA, RN20950AA, VN20950AA
Midland1166900, KN28030, KN28030N, KN28030X, MPN20950AA, N20950, N20950A, N20950AA, N20950BA, N20950C, UMKN28030, VN20950AA
N/AE-BN286364X, N20950AA, 4TA-29-1, 1166900, 286365, 0209-MM5-004, 286364, 9718990010, EM-36530, 843-034559, 28458500, P-66932, 1038670, 350175, 15634535, 72902-0002, 7HD628, ZZKN28030X, 90001270, 801270, 20QE1278R, K295-127, 16797, U55 KN28030, 9961060, 550041, 1576014, 66932, 932050
NAPA66932, KN28030N
NavistarZZKN28030X
Oshkosh7HD628
Ottawa90001270
PAIEM-36530, LIV-3753
Paccar Parts801270
Pierce Mfg Inc550041
Prior286365, N20950, N20950AA
RYDER FLEET PROD.U55 KN28030, U55 KN28030X
RyderU55 KN28030, U55 KN28030X
Spartan0209-MM5-004
SpicerP-66932
Volvo72902-0002, 1576014, 722403-5002
Volvo GM Heavy Truck1576014, 722403-5002, 72902-0002
WABCORKN28030
Wagner932050
