HALDEX part description

Product Description

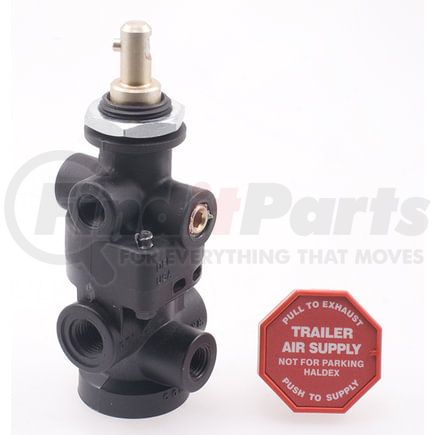

Push-Pull Trailer Air Supply Valve

Features & Benefits

  • A highly reliable push-pull trailer air supply valve
  • Designed with bulkhead mount, requiring a ?” mounting hole
  • Made of Engineering Grade Composite (EGC) that is proven tough, light, and corrosion resistant
  • Can be used to replace the PP-7
  • Does not include the KN20900 knob

Haldex Hand Operated Valve

The Haldex hand operated valve enables the user to manually reduce incoming pressure to the desired output pressure. Manufactured by a brand with over 100 years of engineering expertise, this hand control valve delivers superior performance, reliability, and efficiency.

Product Attributes

Control Port 0.125
Delivery Port .25 NPT
Exhaust Port .25 NPT
Freight Class 70
Non-Override Pressure 25± 5 PSI
Pop Pressure 35± 10 PSI
Supply Port 0.125

Additional Information

Country of Origin (Primary) MX
Harmonized Tariff Code (Schedule B) 8481200070
Harmonized Tariff Code (HTS) 8481200070
Remanufactured Part N
Warranty Distance 100000
Warranty Distance UOM MI
Warranty Special 36 MO, 350,000 MI=Haldex Air Brake Valves(1), Automatic Drain Valves (410-10XXX Series)(1). 12 MO, 100,000 MI= Automatic Drain Valves (N20878/ N20879 Series), Height Control Valve, Scale-O-Matic and AC Boxes. See L20221W.pdf for warranty details
Warranty Time 12
Warranty Time UOM MO
UPC 00767653009919
VMRS Code 013010016

Part Interchanges

Haldex® is a Sweden-based manufacturer specializing in brake and air suspension systems for heavy duty vehicles. Its product line consists of brake components for wheel ends, including disc brakes, brake adjusters, and actuators. It also offers air control products such as compressed air dryers, valves, ABS, and EBS. All these Haldex products are designed with safety and efficient operation in mind, cutting down on potential hazards and maintenance costs in the long run. Today, Haldex runs manufacturing and R&D facilities in 19 countries across four continents. It is dedicated to producing high-quality brake and suspension parts for its customers all around the world as well as developing new technologies for the future.

HALDEX KN20025 Cross Reference

We have 7 alternatives for the KN20025 by HALDEX:
