HALDEX part description

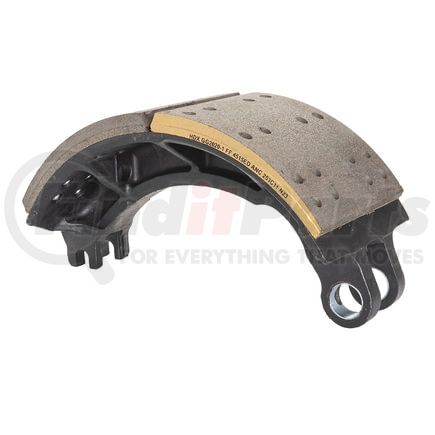

Relined Shoe
  • 16-1/2" x 7"
  • Friction Code - FF
  • Material Type - 2020
  • Brake Type - "S" Cam
  • GAWR - 23,000 lbs.

Technical Specifications:

Width: 7"
FMSI Number: 4515
Shoe I.D.: TC
Hardware Kit: CQ67407
Includes Hardware Kit: No
Core Group: 4515CAST

Product Description

Relined 1 shoe no hdw,2020 grade material

Application Summary

Meritor "P" Cast

Product Attributes

Brake System Air
Web Type Cast
Drum Size 16.5 IN
FMSI 4515
Shoe Type/ I.D. TC
Shoe Width 7 IN
Friction Material GG
New or Relined Relined
Number of Shoes 1
Includes Hardware Kit No
Hardware Kit CQ67407
Friction Code FF
GAWR 23,000 LB
Brake Lining Code 2020
Brake Type "S" Cam
Prop 65 Y
Prop 65 Short Warning Cancer & reproductive

Additional Information

Remanufactured Part Y
Emission Code 1
Country of Origin (Primary) US
Harmonized Tariff Code (HTS) 8716905060
Life Cycle Status Code 2
Life Cycle Status Description Available to order- part is released to customers for ordering
Harmonized Tariff Code (Schedule B) 8708305040
National Popularity Code B
Warranty Time 12
Warranty Time UOM MO
Warranty Distance 100000
Warranty Distance UOM MI
Warranty Special 12 MO, 100,000 MI, 3600 Hours
Warranty Special UOM TX
HALDEX GG4515TCR Cross Reference

We have 3 alternatives for the GG4515TCR by HALDEX:

Haldex® is a Sweden-based manufacturer specializing in brake and air suspension systems for heavy duty vehicles. Its product line consists of brake components for wheel ends, including disc brakes, brake adjusters, and actuators. It also offers air control products such as compressed air dryers, valves, ABS, and EBS. All these Haldex products are designed with safety and efficient operation in mind, cutting down on potential hazards and maintenance costs in the long run. Today, Haldex runs manufacturing and R&D facilities in 19 countries across four continents. It is dedicated to producing high-quality brake and suspension parts for its customers all around the world as well as developing new technologies for the future.
