HALDEX part description

Product Description

Relined 1 Shoe No 2020/2035 Grade Material, FMSI 4515

Application Summary

Meritor "P" Cast

Features & Benefits

  • Designed to offer fast and straightforward fitting
  • Rigorously tested for maximum braking performance and efficiency
  • Reliable even when used under extreme conditions
  • A high-quality yet cost-effective replacement option

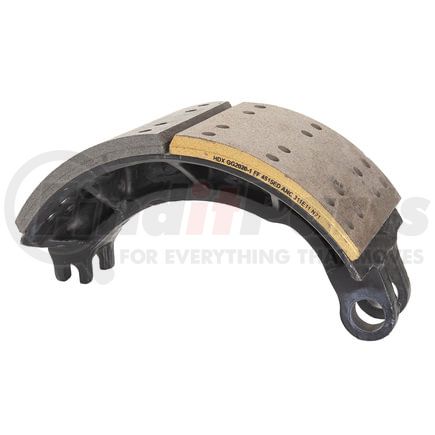

Haldex Relined Shoe

Make brake repair and maintenance simple with easy-to-use Haldex relined shoe. This remanufactured brake shoe offers a precise fit and optimized braking performance.

Product Attributes

Brake Shoe Width 7 in.
Friction Material GC
FMSI Number 4515
Hardware Included No
Brake Drum Diameter 16-1/2 in.
Brake Lining Code GG 2020/2035
Brake Shoe I.D. TC
Brake Shoe Quantity 1
Brake System Air
Brake Type "S" Cam
Freight Class 70
Friction Code FF/FF
Gross Axle Weight Rating 23000 lbs.
Hardware Kit CQ67407
Location Rear
New or Relined Relined
Web Type Cast

Additional Information

Country of Origin (Primary) US
Harmonized Tariff Code (Schedule B) 8716905060
Harmonized Tariff Code (HTS) 8716905060
Remanufactured Part Y
Warranty Distance 100000
Warranty Distance UOM MI
Warranty Special 12 MO, 100,000 MI, 3600 Hours See L20221W.pdf for warranty details
Warranty Time 12
Warranty Time UOM MO
UPC 00767653275895
VMRS Code 013002012
Haldex® is a Sweden-based manufacturer specializing in brake and air suspension systems for heavy duty vehicles. Its product line consists of brake components for wheel ends, including disc brakes, brake adjusters, and actuators. It also offers air control products such as compressed air dryers, valves, ABS, and EBS. All these Haldex products are designed with safety and efficient operation in mind, cutting down on potential hazards and maintenance costs in the long run. Today, Haldex runs manufacturing and R&D facilities in 19 countries across four continents. It is dedicated to producing high-quality brake and suspension parts for its customers all around the world as well as developing new technologies for the future.
