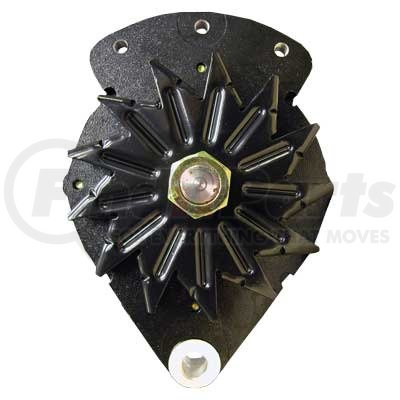

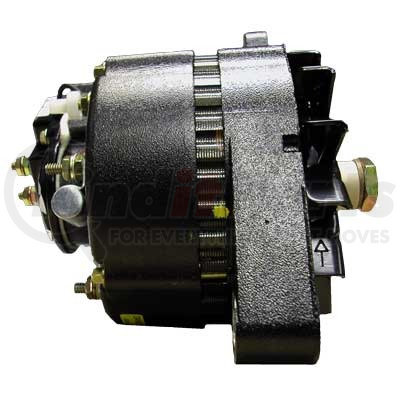

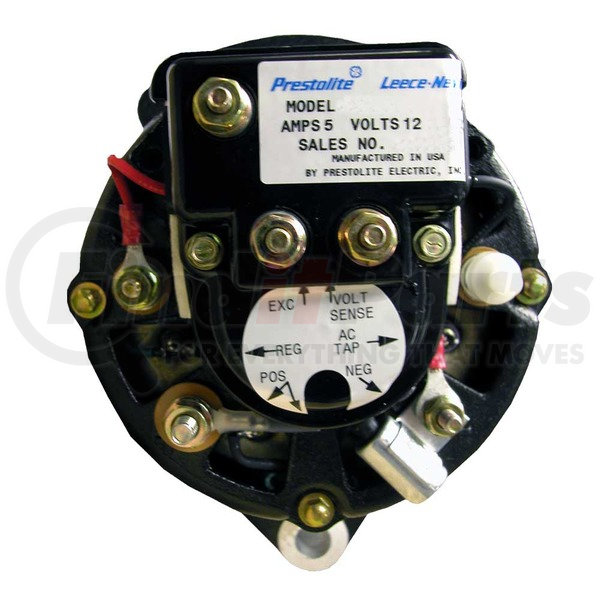

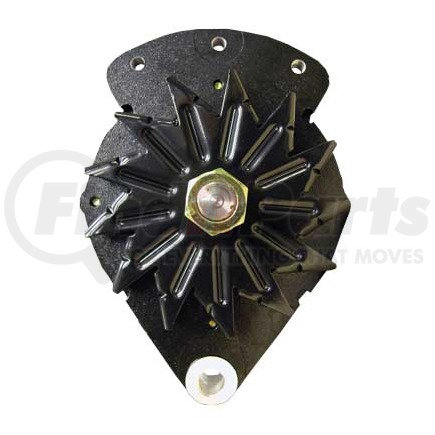

Leece Neville 8MR2175F - High Output Alternator
- Part Number
- 8MR2175F
- Manufacturer
- LEECE NEVILLE
- Description
-
High Output Alternator
details
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
Sometimes we may have similar parts for sale, click the button below to see if anything matches.
LEECE NEVILLE part description
Technical Specifications
| Sales number | 110-699 |
| Series number | 8MA-8MH-8MR |

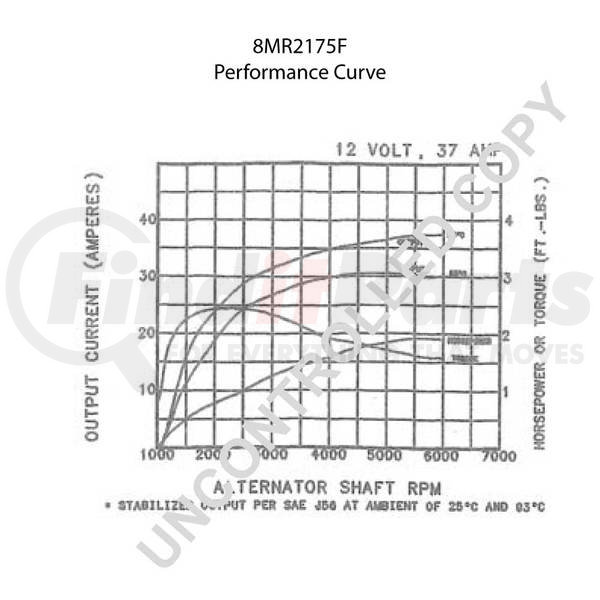

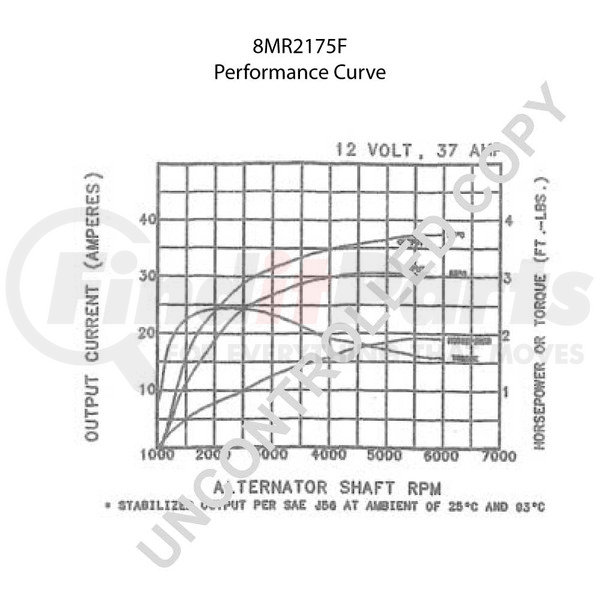

| Notes | External Sense New, Ignition Excite/ Remote voltage sense/ F terminal/ UL approved Fix circle (Mount): 82.3mm Fix circle (Adjuster): 90.68mm Bracket angle: -30° / 0° / 30° Cut in speed: 1000, Max speed: 8000 Weight: 4.22kg |
| System voltage | 12 |
| Output | 37 |
| Mounting style | SPOOL |
| Dimensions in | MILLIMETERS |
| Rotation | CLOCKWISE |
| Housing coating | E-COAT |
| UL Approved | Yes |

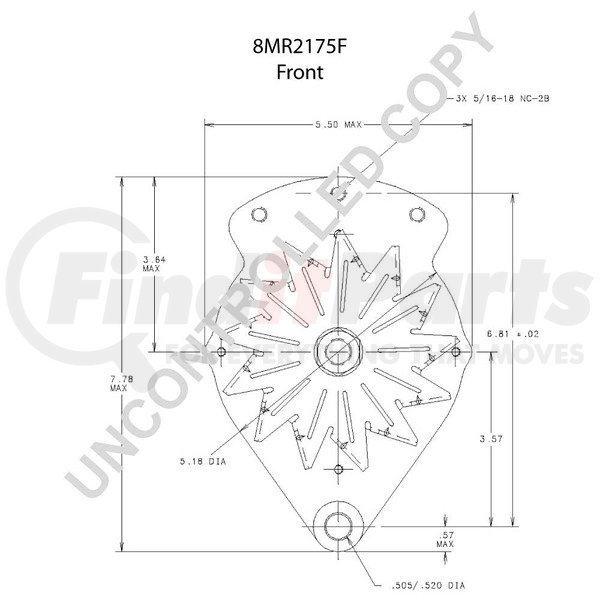

| Mounting bolt size | .505-.520 |
| Mounting ear size | 5/16-18 NC (3 HOLE) |
| Mounting holes | 3 |

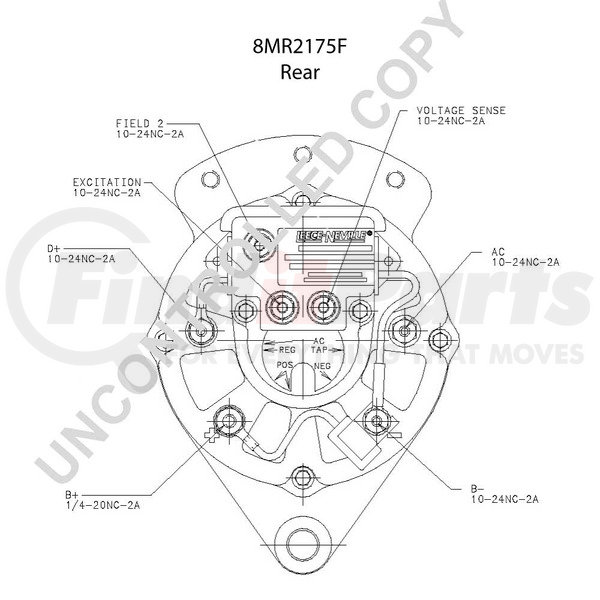

| Positive stud size | 1/4-20 NC |
| Negative stud size | 10-24 NC |
| Rectifier location | INTERNAL |

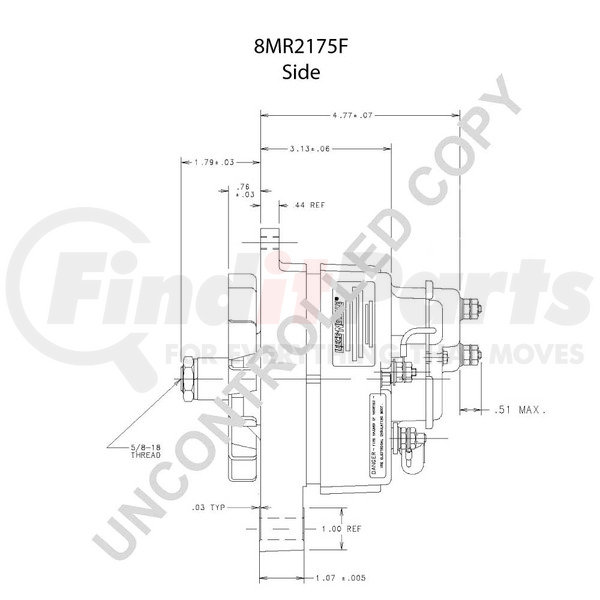

| Shaft diameter | 5/8 INCH |
| Excitation type | Ignition Excite |
| Regulator location | Integral |
| Regulator number | 8RG2060A |
| Diode trio | Yes |
| Pulley included | No |
| Lamp driver | No |
| Adjustable regulator | No |
| Remote sense | Yes |
| Smart check | No |
| Batteryless | No |
| Spool length | 1 |
| Volts | 12 |
| Amp | 37 |
A division of Prestolite Electric Incorporated, Leece-Neville® is a well-known supplier of starters, alternators, and other electrical equipment for transportation, industrial, and military applications. This brand shares the same "Easy to do Business" philosophy with Prestolite and the same manufacturing and distribution centers in America, Europe, Canada, China, Hong Kong, and Mexico. With an industry history that dates back to 1919, Leece-Neville has its glory days in the production of electrical starters, voltage regulators, and generators for trucks, airplanes, as well as industrial and marine equipment during the World War II. In July 1987, Leece-Neville was acquired by Prestolite Electric, which widened its reach to the international market and made the Leece-Neville name globally recognized.
