EUCLID part description

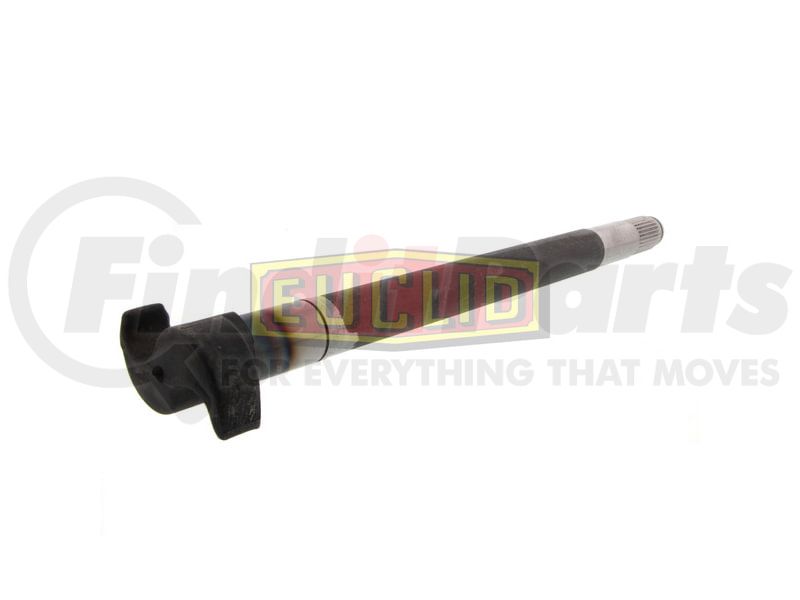

Brake Camshaft, LH

Features & Benefits

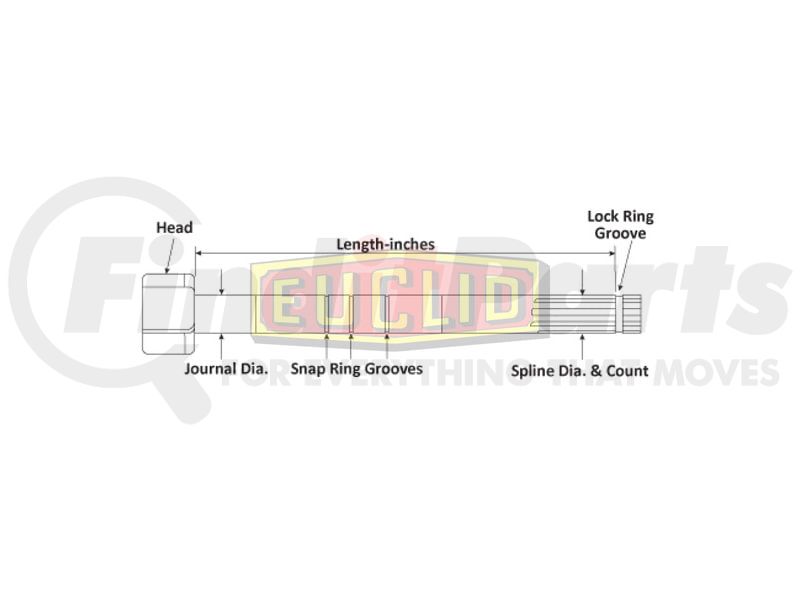

  • For Spicer Trailer Axles with 16-1/2” XTRALIFE (XL) Brakes with 1-5/8” Bearing Journal, 1-1/2” Diameter, Nominal Head Dim. 1-1/8”, 28 Spline
Head End LH
Length 20-7/16"
Axle Type Trailer Axle
Spline Count 28
Diameter 1-1/2"
Nominal Head Dimension 1-1/8"

Product Description

CAMSHAFT-LH

Product Attributes

Axle Trailer
Brake Diameter 16.50 in.
Brake Hardware Kit E5515 (XL), E2769HD (Standard Q)
Brake Type XL
Brand Euclid
Bushing Journal Length 2.25 in.
Camshaft Repair Kit E9790A; E11910; See Catalog
Camshaft Spline Count 28
Camshaft Spline Diameter 1.625 in.
Effective Length 20.44 in.
Head Type 02
Left Or Right LH
Mfg. Part Dana-Spicer M16WKL25-205
Notes Single groove journal - 2-1/4 in.
Oe Mfg. Dana-Spicer
Paired Camshaft E9734
Pallet Quantity 156
Weight 13.20

Euclid® is a world leader in the production of precision-engineered replacement parts for buses, trailers, as well as light-, medium- and heavy-duty trucks. This brand takes great pride in its products that meet and even exceed O.E.M. quality standards. Officially a part of Meritor since January 1999, Euclid remains the same despite all the changes the company has been through. When customers receive Euclid products, they know they are getting far more than ordinary replacement parts. Instead, they are getting the best replacement parts made today from a company they can trust. Euclid is a company that's continuously improving with technology to do a job the right way because it is the only way it knows how.
