ECCO part description

Hide-A-LED - Clear LED

Details

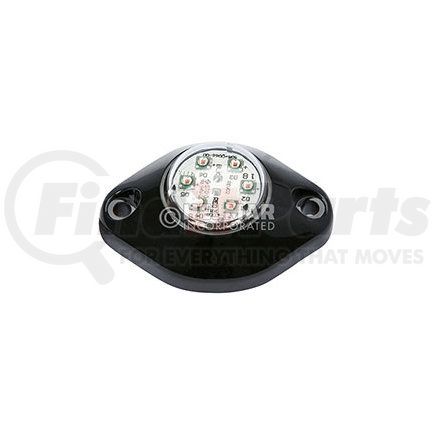

The 9014 is a high intensity directional LED warning light specifically designed for vehicle headlight and tail light applications. In addition, the 9014 can also be surface mounted to the vehicle exterior using the included mounting bezel. Featuring ... read more
  • Clear LEDs.
  • 16 variable flash-rate flash patterns.
  • HIDE-A-LED series.
  • 6 LEDs.
  • Flange mount.
  • -24VDC 2.8 Amps.
  • CE, R10, IP67.
  • 12-24VDC, 0.9 Amps.
  • -22?F to 122?F -60?C to 50?C operating range.
  • 5 year warranty.
  • Quantity discounts available.
  • For more questions about this product, please Contact Us

Specifications

LEDs 6 Clear
Flash rate Variable
Flash patterns 16
Series HIDE-A-LED
Mount Flange
Approval CE R10
Approval IP67
Voltage 12-24VDC
Amps 0.9
Operating Range 22F to 122F -60C to 50C
Warranty 5 year
General
Item # 9014C
Mfg Part # 9014C
Dimensions (L/W/H) 5x1x1
Weight 1 lbs
MSRP $72.11
Brand Ecco Warning Lights

Features & Benefits

  • Head / tail light applications
  • 16 flash patterns, synchronization capable
  • In-line waterproof driver module with 9’ cable
  • 2-bolt mount
  • 9014: 2-year warranty
  • 6 LED / 1 Head / CE, R10, IP67, 12-24VDC / 0.9A, In-headlight or Surface Mountable
Dimensions 0.9” H x 1.5” D Bezel: 1.65” H x 2.3” D

ECCO 9014C Cross Reference

We have 3 alternatives for the 9014C by ECCO:

ECCO® is the world's largest manufacturer of back-up alarms and amber warning lights since 1972. For almost 50 years, the company has been the trusted name among customers worldwide as it offers not just a comprehensive range of warning and safety products but also unparalleled service. Based in Boise, Idaho, ECCO serves over 80 countries with 200 registered US patents and more than 3,000 aftermarket distributors. The company currently has over 700 members who work tirelessly to ensure the ECCO name remains the leader in safety product design, engineering, testing, manufacturing, and quality control. All its products are manufactured in its ISO9001 certified / AMECA certified test labs.
