GROTE part description

Product Description

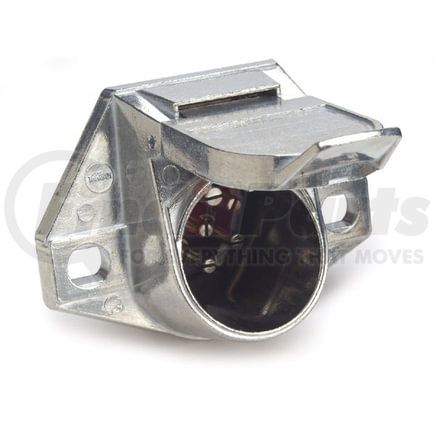

Solid Pin Socket, 7 Pole

Features & Benefits

  • Circuit identification on the back of the plug &amp
  • socket
  • Circuit identification on the back of the socket
  • Housing provides superior corrosion resistance
  • Plated-steel cable guards prevent cable chafing
  • Solid brass pin terminals for best conductivity
  • Terminals accept 16-10 gauge wires
  • 8 gauge ground wire
  • Terminals accept from #16 wire to #8 ground wire

Product Attributes

Material Zinc die-cast
Mtg Hole 1/2",2
Prop 65 Label Required N
Standards SAE J560
Terminals exposed,solid pin
Conductor 7
Amperage 40 Amp @ 6-28V DC

Additional Information

Country of Origin (Primary) MX
Harmonized Tariff Code (Schedule B) 8536690000

GROTE 82-1005 Cross Reference
