(888) 312-8812 Login SignupGATES TR24414 Green Stripe Truck & Bus Series V-Belt
Tap to view 1 more
No Stock Available
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
GATES TR24414 Part Description
Manufacturer
Product Description

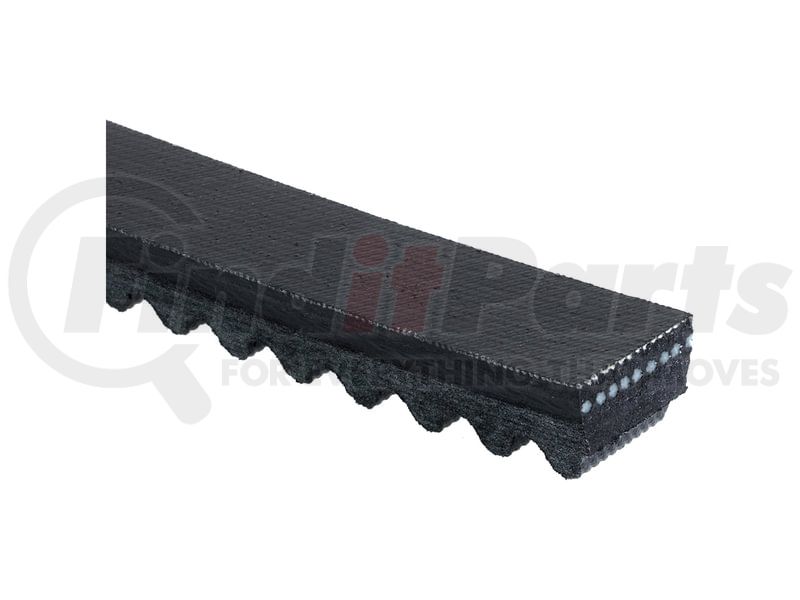

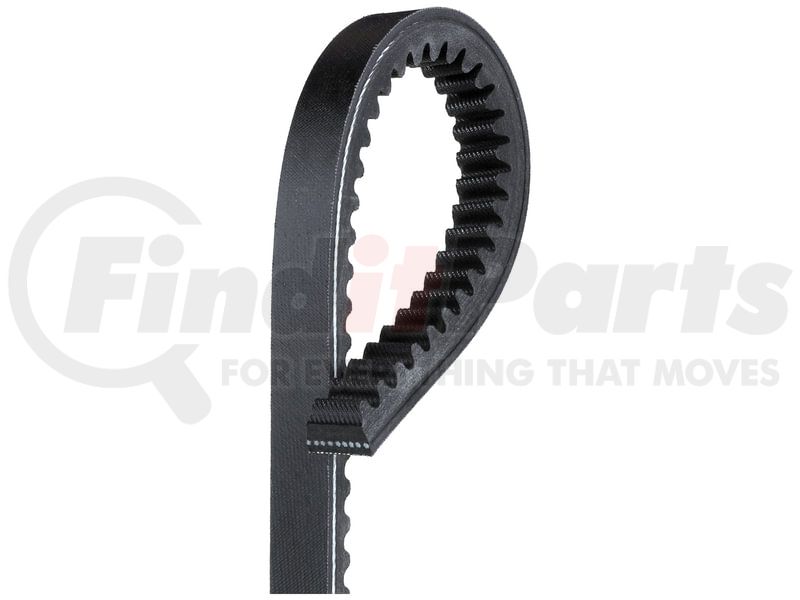

Green Stripe Truck & Bus Series V-Belt
Application Summary
Baker, FGA030, Hercules IXA3, Fan & Gen.
Features & Benefits
- Molded notches reduce bending stress, especially on small diameter pulleys, while dissipating heat
- High modulus, high strength tensile cord
- Oil and heat-resistant construction throughout
- Meets SAE J636b and SAE J637 specifications
- Meets RMA oil and heat resistant standards and static conductivity requirements
- NOTE: Some sizes available as Gates PowerBand joined V-belts
GATES TR24414 Specifications
Product Attributes
| Type | Truck & Bus V-Belt |
| Cross Section Designation | TA |
| Angle | 36 |
| Strand Quantity | 1 |
| Top Width | .656 in |
| Outside Circumference | 42 in |
| Effective Length | 41.34 in |
| Construction | Notched |
| Notched | Yes |
| Belt Material | EPDM |
| Cord Material | Polyester |
| Top Width | 17 mm |
| Outside Circumference | 1067 mm |
| Effective Length | 1050 mm |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 4010323000 |
| Stock Status | N |
| UPC | 00072053277760 |
| VMRS Code | 065005003 |
| UNSPSC | 26111801 |
GATES TR24414 Cross References
| Brand | Part Number |
|---|---|
| 86200761 | |
| <Unknown> | 24421, 7607852, DT2401AN1, Z125 |
| ACDelco | T24414 |
| Alliance Truck Parts | GT761 |
| Autopar | FB24415 |
| Baker Industrial Trucks | 717D1 |
| Bando | 9410, 9415 |
| Bendix-Westinghouse | 213189 |
| Bosch | 910416-8195 |
| CONTINENTAL AG | 24413 |
| Carquest | TR24414 |
| Caterpillar | 5M5344 |
| Chrysler | 1117610 |
| Clark Equipment | 10077, 611401 |
| Continental Belt | V83 |
| Cummins | 133158, 178580, 203763, S2638 |
| Dayco | 24415, 35, 433093, 47403, 47791, 49866, 49889, 50774, 50792, 51886, 53447, 55608, 627M |
| Diamond Reo | 759G1, DT2401AN |
| Dresser | D98005 |
| Durkee-Atwood | 24-421 |
| GOODYEAR BELTS | 24414 |
| General Motors | 1340652, 5135953 |
| Goodyear | 24417 |
| Gray Marine | D2204 |
| Hall Scott | 296858, 660718 |
| Hyster | 53586 |
| Koehring | 11023 |
| Komatsu | 0412021941, 1232822H1 |
| Kysor | 300417 |
| MBL Three Stars | 24415 |
| Metric | 17A1050 |
| Minneapolis Moline | 135087 |
| Mitsuboshi | RECMF3415 |
| Mobilift | M716A |
| Mopar | BH-92 |
| NAPA | 25-10500 |
| NAPA Belts/Hose | 25-24414 |
| Service King | 131 |
| Sierra | 18-24415 |
| Studebaker | 675502, 677266 |
| Teledyne Continental | F162K282, F401K204, Y116K20A |
| Volvo Cars | 20230, 77291, 950780, 950781 |
| White | 374485, 58282B, 619153, 6296858 |
GATES TR24414 Fits Vehicles
- Gardner Six (1925-1926)
- Continental Flyer (1933)
- Continental Beacon (1933-1934)
- Blackhawk L-8 (1929-1930)
- Chrysler Series 80 L Imperial (1928-1930)
- Chrysler Series 65 (1929)
- Chrysler Series E-80 (1926)
- Chrysler Series E-80 Imperial (1927)
- Studebaker 4E3 (1959)
- Studebaker 3E6 (1958)
- Studebaker 3E11 (1958)
- Studebaker 3R16 (1954)
- Studebaker 4E11D (1959)
- Studebaker 3E5 (1958)
- Studebaker 3E11D (1958)
- Studebaker 3E1 (1958)
- Studebaker E11 (1956)
- Studebaker E6 (1955-1956)
- Marquette Series 30 (1930)
- Essex Pacemaker (1932)
- Studebaker 3R6 (1954)
- Studebaker 2R11 (1950-1953)
- Studebaker E5 (1955-1956)
- Chrysler Series 70 (1930)
- Studebaker 4E3D (1959)
- Studebaker 4E11 (1959)
- Studebaker 3E6D (1958)
- Studebaker 3R17 (1954)
- Studebaker 2R16A (1949-1953)
- Studebaker 2R17A (1949-1953)
- Studebaker 2R17 (1949-1953)
- Studebaker 2R16 (1949-1953)
- Studebaker 2R6 (1950-1953)
- Studebaker 3R11 (1954)
- Studebaker E10 (1955)
- Chrysler Series 66 (1930-1931)
- Willys Knight Model 70B (1930)
- Studebaker 3R14 (1954)
- Studebaker 2R14 (1950-1953)
