GATES TR22752 - Accessory Drive Belt - Green Stripe Truck and Bus Series V-Belt
$4099
MSRP: $44.71
Save: $3.72
In stock
limited availability at this price!
Pay over 3-12 months with . Learn more
GATES part description
California Proposition 65 Warning
WARNING: This product can expose you to chemical which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov. (Read more)
Product Description

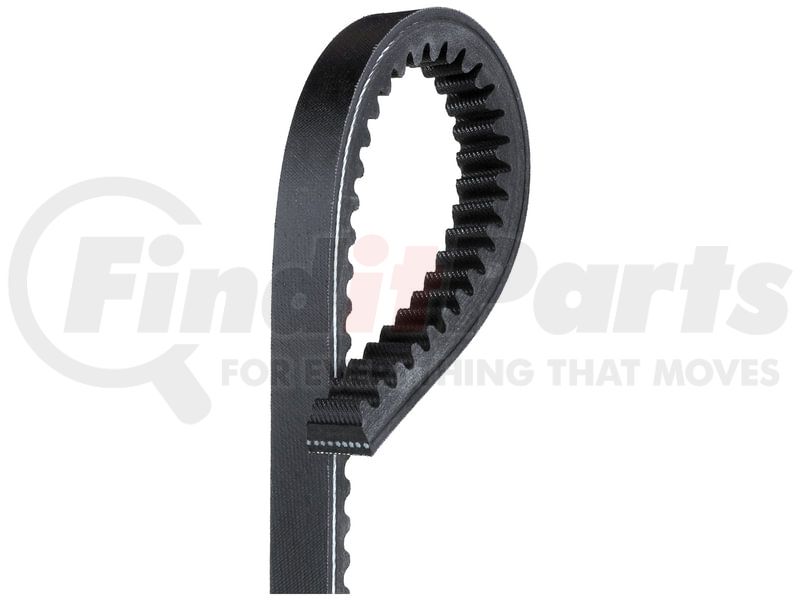

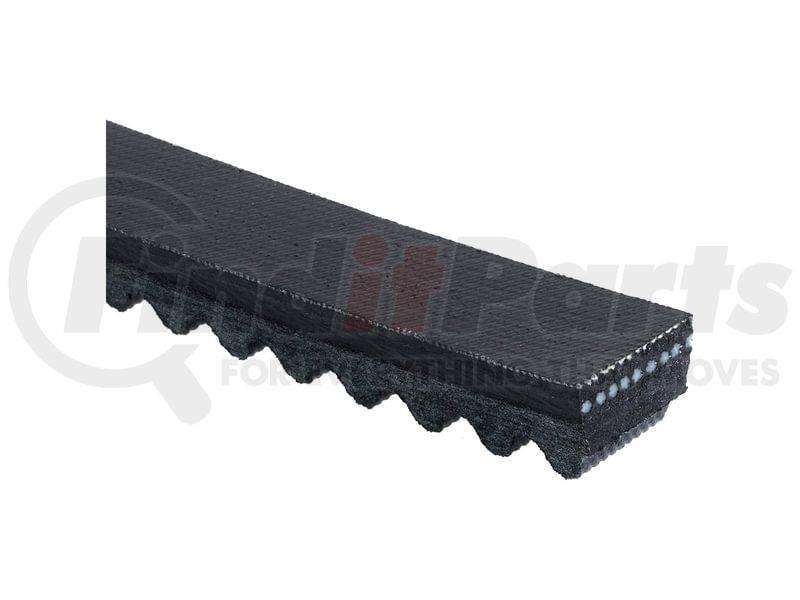

Green Stripe Truck & Bus Series V-Belt
Application Summary
Dresser-Dressta, TD20C, IH DV573B Diesel, Fan
Features & Benefits
- Molded notches reduce bending stress, especially on small diameter pulleys, while dissipating heat
- High modulus, high strength tensile cord
- Oil and heat-resistant construction throughout
- Meets SAE J636b and SAE J637 specifications
- Meets RMA oil and heat resistant standards and static conductivity requirements
- NOTE: Some sizes available as Gates PowerBand joined V-belts
Product Attributes
Type | Truck & Bus V-Belt |
Cross Section Designation | RA |
Angle | 40 |
Strand Quantity | 1 |
Top Width | .594 in |
Outside Circumference | 75.74 in |
Effective Length | 75.16 in |
Construction | Notched |
9837 | Yes |
Belt Material | EPDM |
Cord Material | Polyester |
Additional Information
Country of Origin (Primary) | US |
Harmonized Tariff Code (Schedule B) | 4010323000 |
UPC | 00072053275155 |
VMRS Code | 065005003 |
UNSPSC | 26111801 |
Part Interchanges
