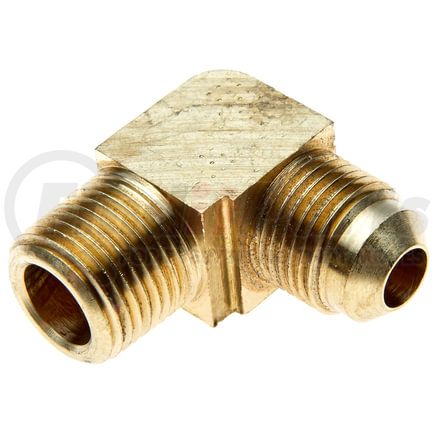

GATES G60654-0404 - Hydraulic Coupling/Adapter - Male SAE 45 Flare to Male Pipe - 90 (SAE Flare)
$392
5 day lead time
limited availability at this price!
Pay over 3-12 months with . Learn more
GATES part description
California Proposition 65 Warning
WARNING: This product can expose you to chemical which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov. (Read more)
Product Description
Male SAE 45 Flare to Male Pipe - 90 (SAE Flare)
Features & Benefits
- Meets standard industry specifications
- For use with copper, brass, aluminum and steel tubing that can be flared
- Meets ASME and SAE conformance
Product Attributes
Adapter Type | SAE Flare |
Adapter Description | Male SAE 45 Flare to Male Pipe - 90 |
Industrial Description | 4MS-4MP90 |
Thread Size | 7/16-20 |
Outside Diameter | .25 IN |
Maximum Working Pressure | 2000 PS |
Temperature Rating | -65 Deg. F to +250 Deg. F (-53 Deg. C to +121 Deg. C) |
Material | 360 Brass |
Additional Information
Harmonized Tariff Code (Schedule B) | 7412200085 |
Country of Origin (Primary) | US |
UPC | 00029769160190 |
VMRS Code | 059032033 |
UNSPSC | 40141734 |
Part Interchanges
- Aeroquip 2003-04-04B
- Aeroquip 2003-4-4B
- Parker 149F-4-4
- Velvac 014944
- Dayco 146465
- Dayco 146642
- Weatherhead 49X4X4
- Imperial 49-F-04-04
- Anderson Fittings 04049-0404
- Anderson Fittings E1-4B
- Lawson 5192
- Goodyear 72805-0404
- Edelmann 149440
- NAPA G60654-0404
- Tramec Sloan S49-4-4
- Mid-America Fittings Inc 49-44BS
