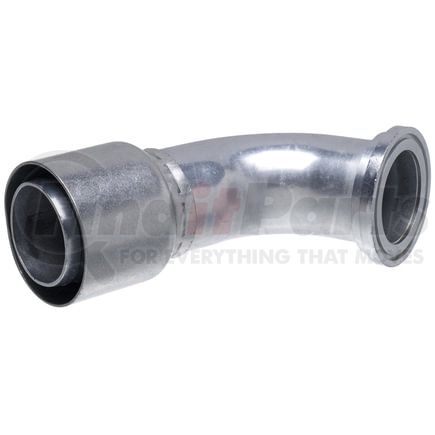

Gates G43311-6464 - Code 61 O-Ring Flange - 67 1/2 Bent Tube (GL)
$57849
5 day lead time
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
GATES part description
Product Description
Code 61 O-Ring Flange - 67 1/2 Bent Tube (GL)
Features & Benefits
- Designed for larger-diameter hoses - up to 4 in. I.D.
- Designed for larger-diameter hoses – up to 4 in. I.D.
- Short body length provides the necessary grip for low pressure hose requirements
- Bubble pattern crimp design ensures optimal sealing to helical wire hoses on return vacuum applications
Product Attributes
| Coupling Description | GL Code 61 O-Ring Flange - 67 1/2 Bent Tube |
| Industrial Description | 64GL-64FL67 |
| Inside Diameter | 4 IN |
| Hydraulic Hose Recommendation | Gates GMV, MegaTech G5TB, MegaTech 500 |
| Flange Thickness | .44 in |
| Flange Diameter | 5 IN |
| Drop Length | 6.9 IN |
| Cut-Off Length | 10.17 IN |
| Length | 14.2 IN |
| Inside Diameter | 101.6 MM |
| Flange Thickness | 11.2 MM |
| Flange Diameter | 127 MM |
| Drop Length | 175.3 MM |
| Cut-Off Length | 258.3 MM |
| Length | 360.7 MM |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 7326908688 |
| UPC | 00072053189162 |
| VMRS Code | 059032012 |
| UNSPSC | 31163000 |
Part Interchanges
